ESP MAGPRO96G Installation And Programming Manual page 6

Battery Power Supply
- Voltage output (U): .................................................... 13,8V
- Current output (I): ...................................................... 2A
- Internal resistance of the accumulator battery Ri ....... < 0,3 Ohm
- Number of the Batteries: ........................................... 1 x 12V/ 18Ah, rechargeable, sealed lead-acid type
- Battery Size: .............................................................. 167x181x76mm
- Type of the Battery connection: ................................. with a flat terminal lug - Ø5mm (M5)
List of the fuses
- General Power Supply: .................... 2A, T Type
- Outputs:............................................. 0,3A, PTC Type
- Battery: ............................................. 7.5A, PTC Type

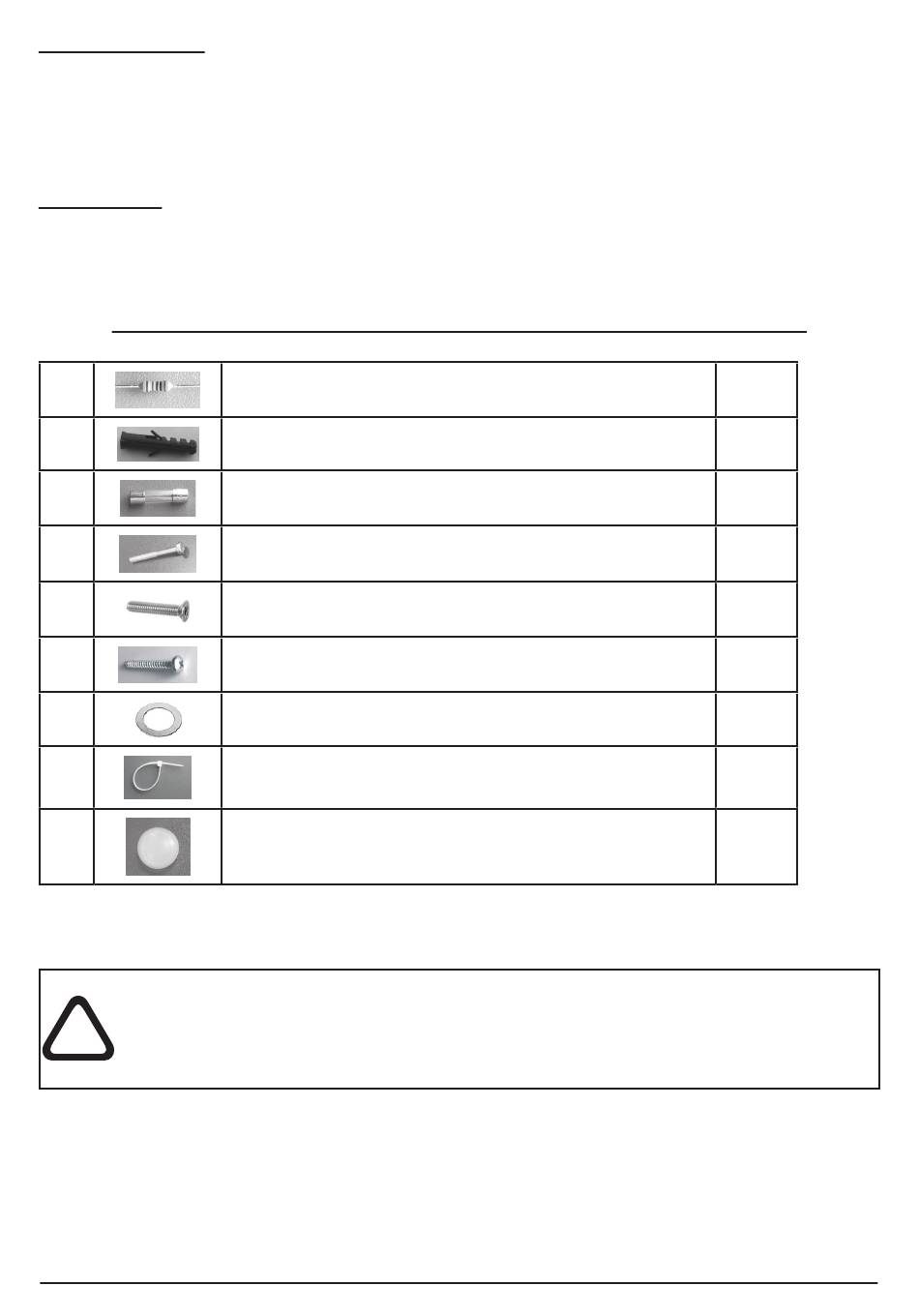

List of the additional components, included in the set of the fire panel MAGPRO96:
1.
2.
3.
4.
5.
6.
7.
8.
9.
The panel should be installed by qualified specialists only.
!
The electronic components of the panel are vulnerable to electrostatic discharge.
Never add or turn off components which are being power supplied!
6
Resistor 10K ±5%, 0,25W
Anchor 6х30mm
Fuse 2А, T type 5x20mm (for the mains power supply)
Screw М4х40 Cross slot DIN7985
Screw М4х30 Cross slot DIN965
Screw М4,2х35 Cross slot DIN7981
Washer М4 DIN522
Cable tie 2,5/160mm
Plastic cap
Addressable Fire Panel MAGPRO96 - Installation and Programming Manual
2
4
1
4
2
4
4
2
21
