ESP MAGPRO-WSS23 Installation Instruction

17
1293
DoP No: 032
1293-CPR-0461 Rev.1
EN54-3:2001
EN54-3:2001/A1:2002
EN54-3:2001/A2:2006
EN54-23:2010
Fire alarm devices - Visual alarm device (VAD)
intended for use in and around buildings
Sounder Type: B
Coverage volume: W-2,4-6
Distributor: Elite Security Products Ltd, Unit 7
Target Park, Shawbank Road Lakeside,
Redditch B98 8YN, UK
http://www.espuk.com
Manufacturer: Teletek Electronics JSC
14A Srebarna Str, 1407 Sofia, Bulgaria
http://www.teletek-electronics.com
Essential characteristics Performance
Performance under fire
Pass
conditions
Operational reliability Pass
Duration of operation Pass
Provision for external
Pass
conductors
Flammability of materials Pass
Enclosure protection Pass
Access Pass
Manufacturer's adjustments Pass
On-site adjustments of
Pass
behavior
Requirements for software
Pass
controlled devices
Coverage volume Pass
Variation of light output Pass
Min. and max. light intensity Pass
Light color White
Light temporal pattern/
Pass
frequency of flashing
Marking and data Pass
Synchronization Pass
Durability:
Temperature resistance Pass
Humidity resistance Pass
Shock and vibration
Pass
resistance
Corrosion resistance Pass
Resistance to ingress Pass
Electrical stability Pass

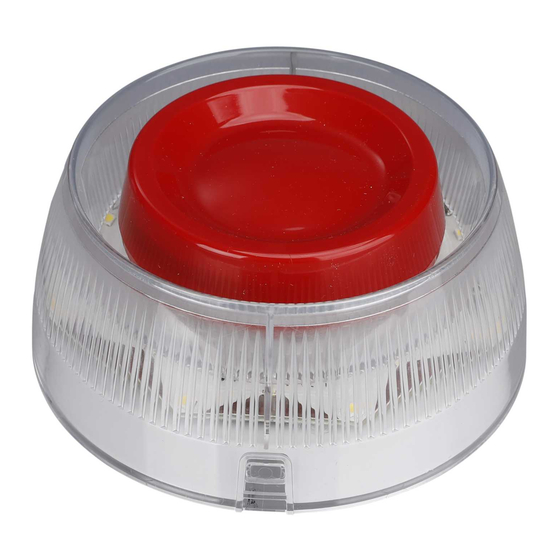

MAGPRO-WSS23 is аn addressable Wall Mount Sounder and Strobe (Flash) designed for installing in addressable fire alarm systems supporting
MAGPRO communication protocol. The device is powered on from the panel and can be controlled via the communication protocol.
The device MAGPRO-WSS23 is compatible with fire base MAGPRO-DB
Attention: Power off the loop circuit before installing the MAGPRO-WSS23 addressable fire base!
1. Choose the proper place for installation of the device.
2. Set the device address using MAGPRO-PROG Programmer. The address must be in the range from 1 to 250.
3. Mount the fire base on the ceiling or on the wall of the protected premises using fixings according the mounting surface.
4. Connect the base to the fire panel using the wiring diagram.
5. Insert the sounder into the base and rotate clockwise until it drops into place - the short mark on the base fits with that on the sounder body.
Continue to rotate the sounder until its mark coincides with the long mark on the base - a click is heard.
6. Program the device parameters. Choose in consecutiveness from the control panel: System - Programming - Devices - Loop. Find the installed
sounder, as enter address, loop and zone number - the panel automatically will recognize the type of the device. Choose the button MORE to enter
in the additional settings menu.
7. Test the sounder and strobe for proper operation.
TECHNICAL SPECIFICATIONS
Operating Voltage Range . . . . . . . . . . . . . . . . . . 15 - 32VDC (Nom. 27VDC)
Nominal consumption (stand-by) . . . . . . . . . . . . <500μА@27VDC
Maximal consumption (main tone type 27):
- low volume level, sound only . . . . . . . . . . . . <5mА
- low volume level, sound and strobe. . . . . . . <12mА
- high volume level, sound only . . . . . . . . . . . <16.5mА
- high volume level, sound and strobe . . . . . . <22mА
Maximal consumption (other tone types):
- low volume level, sound only . . . . . . . . . . . . <4mА
- low volume level, sound and strobe. . . . . . . <11mА
- high volume level, sound only . . . . . . . . . . . <10mА
- high volume level, sound and strobe . . . . . . <16.5mА
Power volume (main tone type 27):
- low volume . . . . . . . . . . . . . . . . . . . . . . . . . . ~ 80dB (A) ± 6dB @ 1m
- high volume . . . . . . . . . . . . . . . . . . . . . . . . . ~ 92dB (A) ± 5dB @ 1m
Power volume (other tone types):
- low volume . . . . . . . . . . . . . . . . . . . . . . . . . . 75-85dB ± 3dB @ 1m
- high volume . . . . . . . . . . . . . . . . . . . . . . . . . 80-95dB ± 3dB @ 1m
Number of tone types . . . . . . . . . . . . . . . . . . . . . 32
Supported communication protocol. . . . . . . . . . . MAGPRO
Wire Gauge for terminals . . . . . . . . . . . . . . . . . . 2.5mm
Relative humidity resistance . . . . . . . . . . . . . . . . (93 ± 3)% @ 40°C
Color . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . white transparent
Material . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . SAN
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116x55mm
Installation Instruction
MAGPRO-WSS23
Intelligent analogue addressable
fire alarm sounder and strobe
for ceiling or wall mounting and WSB IP65 for wall mounting
!
!
2
* When used with base MAGPRO-DB
** When used with base WSB IP65
ATTENTION: Read carefully this installation
Instructions before installing the device!
This manual is subject to change without notice!
A-weighted sound level diagram
1m
165° 15°
87dB
135°
45°
105°
75°
89dB
97dB
96dB
Installation
IP43C (ЕN54-3)*
Indoor*
IP65 (EN60529)**
Visual Alarm Device
(VAD) - EN54-23
-10°C ÷ +50°C
~183g
.
88dB
91dB
Outdoor**
