Turbo Air Speed up the Pace of Innovation

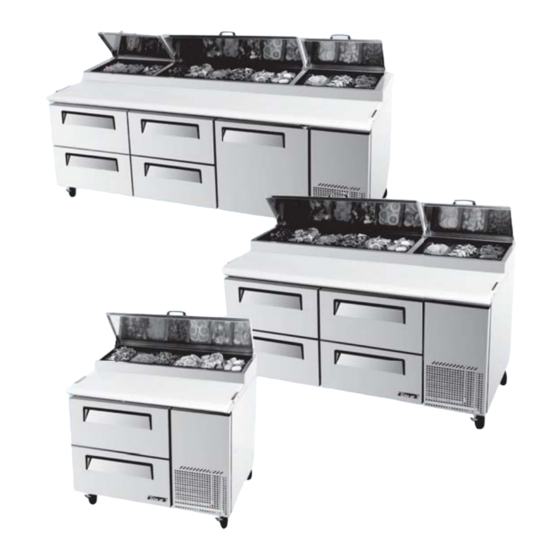

Pizza Prep Table
Refrigerator
Installation and Operation Manual
Please read this manual completely before attempting to install or operate this equipment!
REFRIGERATOR
TPR-44SD-D2
TPR-67SD-D2
TPR-67SD-D4
TPR-93SD-D2
TPR-93SD-D4
TPR-93SD-D6
www.turboairinc.com
CAUTION!
PLEASE KEEP POWER
SWITCH ON BEFORE
OPERATING THIS EQUIPMENT
Full Stainless Steel Visible Exterior
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Turbo Air TPR-44SD-D2
Summary of Contents for Turbo Air TPR-44SD-D2
- Page 1 CAUTION! PLEASE KEEP POWER SWITCH ON BEFORE OPERATING THIS EQUIPMENT Turbo Air Speed up the Pace of Innovation Pizza Prep Table Refrigerator Installation and Operation Manual Please read this manual completely before attempting to install or operate this equipment! Full Stainless Steel Visible Exterior...
- Page 2 HOW TO OPEN AND CLOSE THE HOOD LID INSTALLATION BASIC OPERATION CLEANING CAUTION BEFORE REQUESTIONG SERVICE WARRANTY 8 - 10 SPECIFICATIONS Pizza Prep Table MODEL COMP H.P. V/Hz REFRIGERANT AMPS WEIGHT TPR-44SD-D2 115V/60Hz R-134A 6.3A 321lbs TPR-67SD-D2 115V/60Hz R-134A 10.4A 561lbs 115V/60Hz R-134A 10.4A 572lbs TPR-67SD-D4 115V/60Hz...
- Page 3 INSTALLATION OF CASTERS AND CASTER BRAKES 1) Screw the caster (in rear side) and the caster brakes (in front side) by using caster wrench. 2) Use the caster shims to level the cabinet, if necessary, by inserting them to stems of the casters. CASTER (WITH BRAKE) (2EA) CASTER (2EA)
- Page 4 REMOVAL DRAWER Fully extend the drawer out toward you as pictured. After full extension, lift the drawer up and pull towards you. This will disngage the rollers from the roller guide. TO ACCESS THE FAN MOTOR 1. Remove the drwer guide by removing screw in the front and back.
- Page 5 1. GOOD AIR CIRCULATION - Do not place any object that will restrict air flow in front or back grills. - Turbo air highly recommends that there is ample space in rear of unit. 5 inches or more is best.
- Page 6 CLEANING Before cleaning, turn unit off at power switch. 1. CLEANING THE INTERIOR AND EXTERIOR - The interior and exterior of the unit can be cleaned using warm water with soap. - Do not use an abrasive cleaner because it will scratch the surface. 2.
- Page 7 BEFORE REQUESTING SERVICE SYMPTOMS CAUSES SOLUTIONS Refrigerator(Freezer) • The setting temperature is too • Turn the temperature dial to a is freezing(melting) low(high) to maintain food warmer(colder) setting. food. freshness. The unit does not • There is a power connection •...
- Page 8 THREE YEAR WARRANTY Turbo air warrants to the original purchaser of every new Turbo air refrigerated unit, the cabinet and all parts thereof, to be free from defects in material or workmanship, under normal use and service, for a period of three (3) year from the date of original installation or 39 months after shipment date from Turbo air , whichever occurs first.
- Page 9 3. ALTERATION, NEGLECT, ABUSE, MISUSE, ACCIDENT, DAMAGE DURING TRANSIT OR INSTALLATION, FIRE, FLOOD, ACTS OF GOD. TURBO AIR is not responsible for the repair or replacement of any parts that Turbo Air determines have been subjected after the date of manufacture to alteration, neglect, abuse, misuse, accident, damage during transit or installation, fire, flood, or an Act of God.
- Page 10 (3) year from the date of original installation or 39 months after shipment date from Turbo Air, whichever occurs first. Any part, covered under this warranty, that are by Turbo Air to have been defective within three (3) year of original installation or thirty-nine (39) months after shipment date from manufacturer, whichever occurs first, is limited to the repair or replacement, including labor charges, of defective parts or assemblies.
