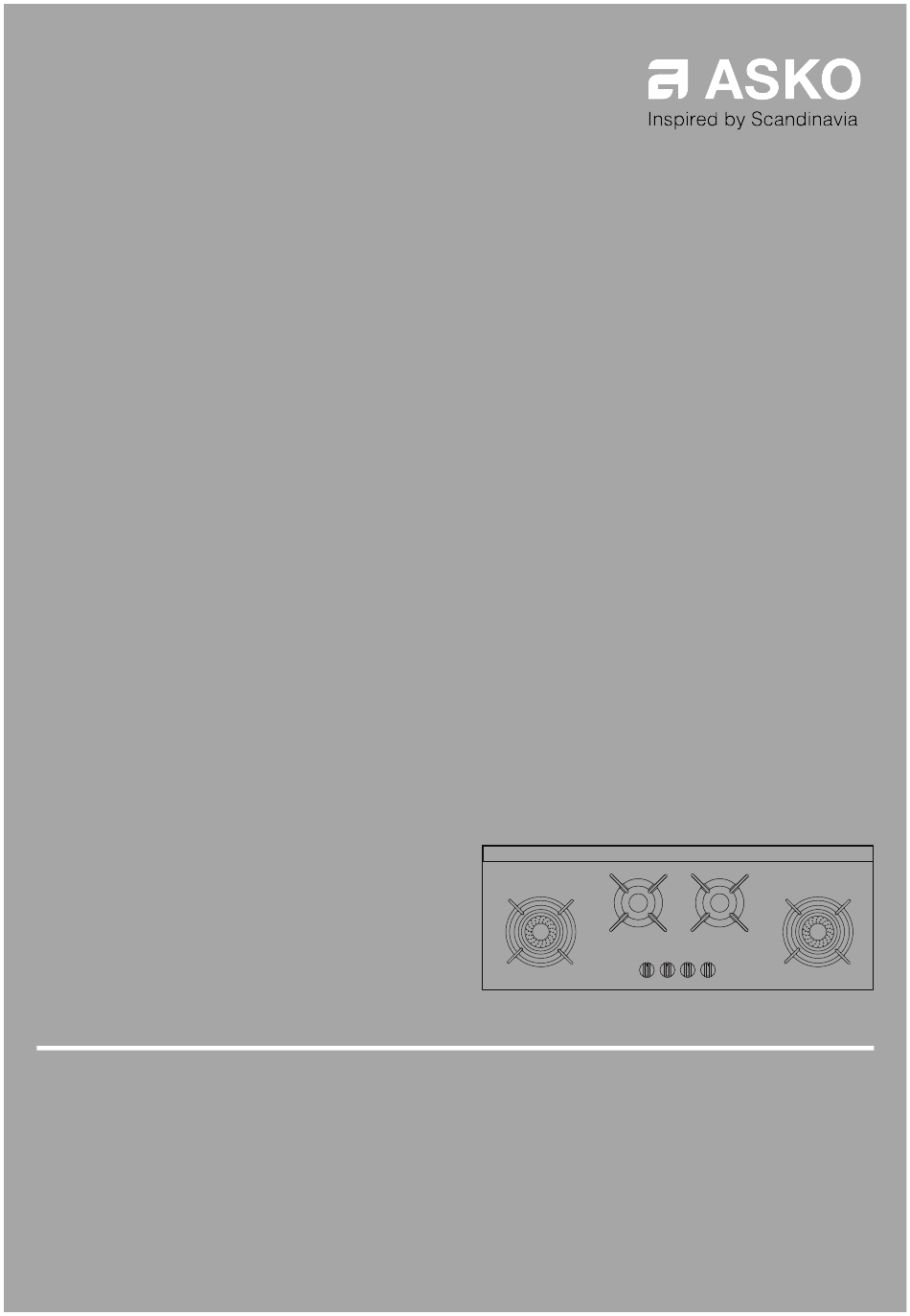

- Page 1 INSTRUCTIONS FOR USE HG1145AB / HG1ABE3A Gas Hob...
-
Page 2: Table Of Contents
Contents Pictograms used ........Faults ............Safety ............General ..........................Technical data ..........Description ..........Information according to regulation (EU) Control knob ..........66/2014 ............Use .............. Installation ..........Pans ............. Safety ............Wok ring and small pan grid ......Preparations for installation ...... -
Page 3: Pictograms Used
Pictograms used The following symbols are used throughout the manual and they have the following meanings: INFORMATION! Information, advice, tip, or recommendation WARNING! Warning general danger GAS CONNECTION! Warning gas connection ELECTRIC SHOCK! Warning danger of electric shock HOT SURFACE! Warning danger of hot surface DANGER OF FIRE! -
Page 4: Safety
Safety WARNING! READ CAREFULLY AND KEEP FOR FUTURE REFERENCE! General The manufacturer cannot be held liable for any damage resulting from failure to follow the safety instructions and warnings. Damage caused by incorrect connection, incorrect fitting, or incorrect use is not covered by the warranty. WARNING! This appliance and the accessible parts will become hot during use. - Page 5 Safety WARNING! Use only hob guards designed by the manufacturer of the cooking appliance or indicated by the manufacturer of the appliance in the instructions for use as suitable or hob guards incorporated in the appliance. The use of inappropriate guards can cause accidents.
- Page 6 Safety The ceramic top is extremely strong, but not unbreakable. For example, a spice jar or sharp utensil falling on it could cause it to break. WARNING! Ceramic glass plate broken. shut immediately off all burners and any electrical heating element and isolate the appliance from the power supply.
- Page 7 Safety CAUTION:The use of a gas cooking appliance results in the production of heat, moisture and products of combustion in the room in which it is installed. Ensure that the kitchen is well ventilated especially when the appliance is in use: keep natural ventilation holes open or install a mechanical ventilation device (mechanical extractor hood).
-
Page 8: Description
Description Control knob 1. Semi-rapid burner 2. Wok burner 3. Pan support 4. Glass top 5. Timer (option) 6. Emergency stop (option) 7. Wok selector ring 8. Control knob 9. Zone indication 10. 0 position 11. High setting 12. Low setting 13. -
Page 9: Use
Pans Always ensure that the flames remain under the pan. A lot of energy is lost when flames burn around the outside of the pan. The handles could also become too hot. wrong Do not use pans with a base diameter smaller than 12 cm. Smaller pans are not as stable. -
Page 10: Burner
Burner Use the leads (1) to put together the burner parts. Wok burner position Place the wok burner in the correct way. Placing the wok burner parts incorrectly can result in a poorly functioning burner. 1. Place the burner distributor (2) in the burner housing (1). -
Page 11: Operation
Operation Ignition and adjustment The burner is fully adjustable between high and low settings. 1. Press the control knob and turn it anticlockwise. The burner will ignite. 2. Keep the control knob fully depressed for at least 3 seconds between high and low settings. The thermocouple safety pilot has been activated. - Page 12 Operation NOTE! The timer does not keep the dish at the desired temperature, you can regulate this using the control knob. Kitchen timer Set the timer in the same way as the timer function, however, for a burner you're not using. When the set time has expired you will hear a beep.
-
Page 13: Maintenance
Maintenance Daily cleaning Regular maintenance after use prevents spilt food from setting too long and creating stubborn stains. Use a mild detergent for this. First clean the control knobs, burners and pan support and only then the drip tray or glass cover. This prevents the drip tray or glass cover to becoming dirty again after cleaning. -
Page 14: Faults
Faults General NOTE! If you notice a crack in the glass top (however small), switch off the hob immediately, unplug the hob, and close off the gas supply. Then contact the Service Department. Troubleshooting table If your hob does not work properly, it does not always mean that it is defective. Make sure to check the points mentioned below in the table, or visit our website for more information. - Page 15 Faults Table continued from last page Symptom Possible cause Solution Burner extinguishes after The control knob has not Keep the control knob fully depressed igniting. been depressed long or for at least 3 seconds between high deep enough (at least 3 and low settings.
-
Page 16: Technical Data
Technical data Information according to regulation (EU) 66/2014 Measurements according EN60350-2 / EN 30-2-1 HG1145AB Model identification Gas Hob Type of hob Number of gas burners Energy efficiency per gas burner (EE Rapid burner ) in % burner 62.1 Semi-rapid burner 59.1... -
Page 17: Installation
Installation Safety This appliance should only be connected by a registered installer. Prior to installation, ensure that the local distribution conditions (voltage, frequency, nature of the gas and gas pressure) and the adjustment of the appliance are compatible. The voltage, frequency, power, type of gas and the country for which the appliance has been designed are shown on the appliance rating plate. - Page 18 Installation This appliance is not connected to a combustion products evacuation device. It shall be installed and connected in accordance with current installation regulations. Particular attention shall be given to the relevant requirements regarding ventilation. We recommend that the gas hob be connected by means of a fixed pipe.
-
Page 19: Preparations For Installation
Installation Preparations for installation Free space around the appliance A (mm) B (mm) C (mm) D (mm) HG11 min. 650 min. 900 min. 450 min. 120 HG16 min. 650 min. 600 min. 450 min. 120 HG18 min. 650 min. 750 min. -
Page 20: Built-In
Installation Built-in Appliance dimensions Cut-out in the worktop Sealing tape Stainless steel drip tray Glass drip tray worktop... -
Page 21: Gas Connection
Installation Install the appliance in the worktop Gas connection metal Oven safety hose PTFE tape... -
Page 22: Connecting & Testing
Installation Connecting & testing WARNING! Check if connections are gastight. -
Page 23: Environment
Environment Environment Disposal of the appliance and packaging Sustainable materials have been used during the manufacture of this appliance. This appliance must be disposed of responsibly at the end of its service life. Ask your local authorities for more information about how to do this. -
Page 24: Your Notes
The appliance identification card is located on the bottom of the appliance. Stick the appliance identification card here. www.asko.com 861680 We reserve the right to make changes.
