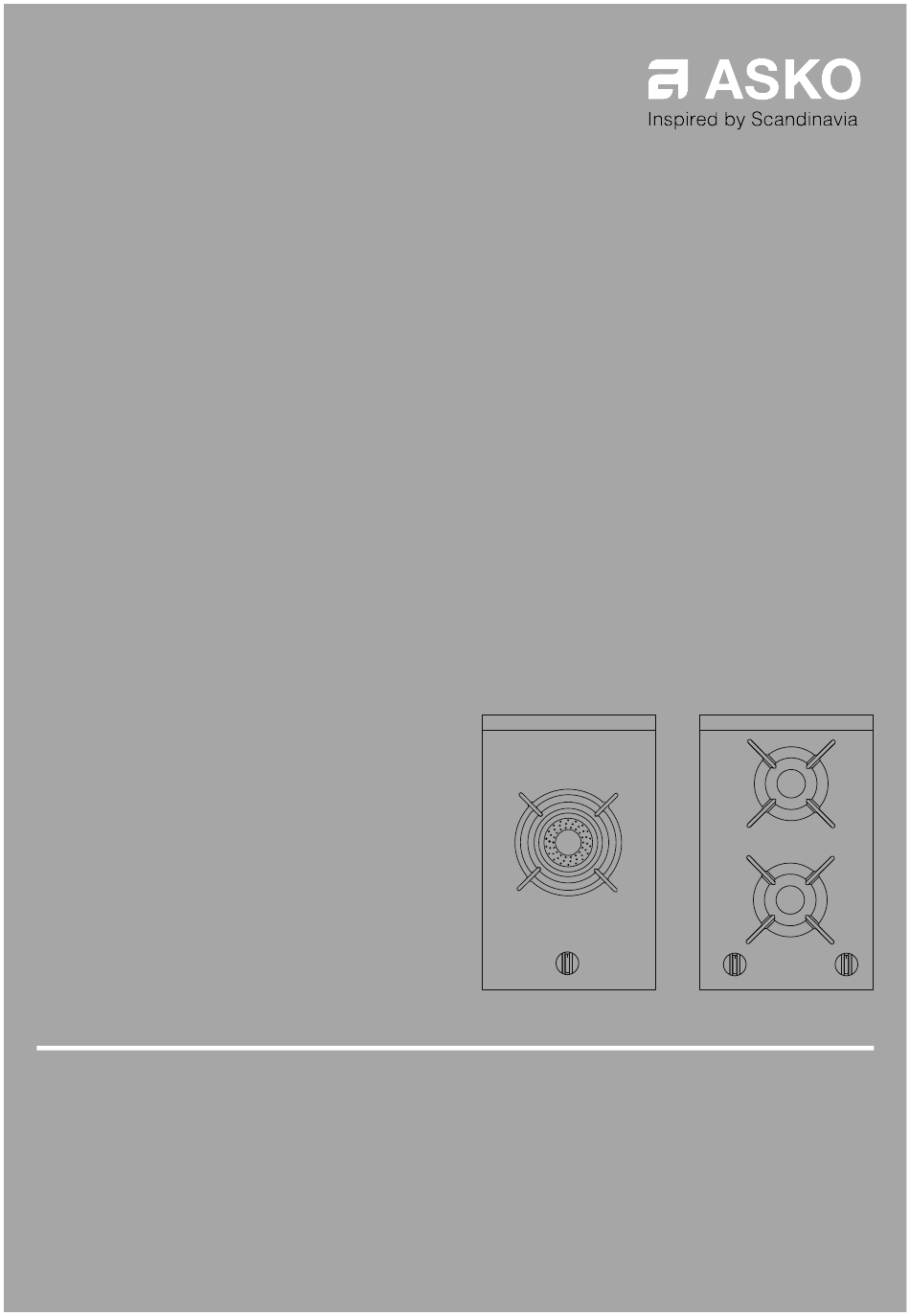

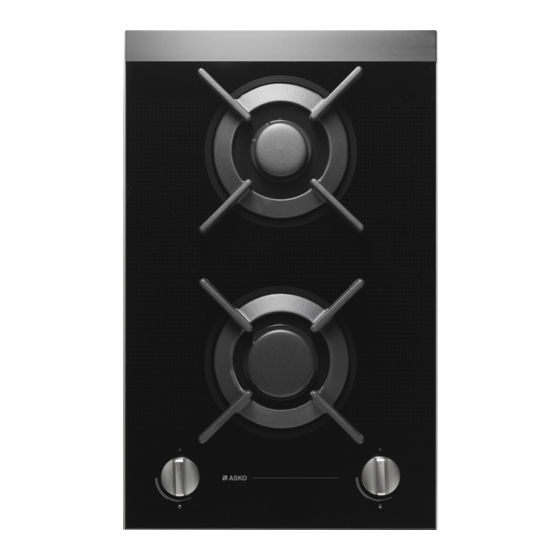

- Page 1 INSTRUCTIONS FOR USE HG1355GB / HG3ABE1A Gas Hob HG1365GB / HG3BBE1A...
-
Page 2: Table Of Contents
Contents Pictograms used ........Faults ............Safety ............General ..........................Technical data ..........Description ..........Information according to regulation (EU) Control knob ..........66/2014 ............Use .............. Installation ..........Pans ............. Safety ............Wok ring and small pan grid ......Preparations for installation ...... -
Page 3: Pictograms Used
Pictograms used The following symbols are used throughout the manual, and they have the following meanings: INFORMATION! Information, advice, tip, or recommendation WARNING! Warning general danger GAS CONNECTION! Warning gas connection ELECTRIC SHOCK! Warning danger of electric shock HOT SURFACE! Warning danger of hot surface DANGER OF FIRE! -
Page 4: Safety
Safety WARNING! READ CAREFULLY AND KEEP IT FOR FUTURE REFERENCE! General The manufacturer cannot be held liable for any damage resulting from failure to follow the safety instructions and warnings. Damage caused by incorrect connection, incorrect fitting, or incorrect use is not covered by the warranty. WARNING! This appliance and the accessible parts will become hot during use. - Page 5 Safety WARNING! Use only hob guards designed by the manufacturer of the cooking appliance or indicated by the appliance manufacturer in the instructions for use as suitable or hob guards incorporated in the appliance. The use of inappropriate guards can cause accidents. If a drawer underneath the appliance is permitted (see the installation instructions), without an intermediate bottom, this should not be used to store highly flammable objects/materials.
- Page 6 Safety WARNING! Ceramic glass plate broke Shut immediately off all burners and any electrical heating element and isolate the appliance from the power supply. Do not touch the appliance surface. Do not use the appliance. WARNING! Households with children and people with special needs This appliance can be used by children aged 8 years and over, as well as by people with reduced physical, sensory or mental capabilities or lack of experience and knowledge, provided they...
- Page 7 Safety in which it is installed. Ensure that the kitchen is well ventilated especially when the appliance is in use: keep natural ventilation holes open or install a mechanical ventilation device (mechanical extractor hood). The burner components are hot during and immediately after use. Do not touch them, and avoid contact with non-heat resistant materials.
-
Page 8: Description
Description Control knob 1. Rapid burner 2. Wok burner 3. Pan support 4. Glass drip tray 5. Wok selector ring 6. Control knob 7. Semi-rapid burner 8. Zone indication 9. 0 position 10. High setting 11. Low setting 12. Wok setting (wok burner) 13. -
Page 9: Use
Pans Always ensure that the flames remain under the pan. A lot of energy is lost when flames burn around the outside of the pan. The handles could also become too hot. wrong Do not use pans with a base diameter smaller than 12 cm. Smaller pans are not as stable. -
Page 10: Burner
Burner Use the leads (1) to put together the burner parts. Wok burner position Place the wok burner in the correct way. Placing the wok burner parts incorrectly can result in a poorly functioning burner. 1. Place the burner distributor (2) in the burner housing (1). -
Page 11: Operation
Operation Ignition and adjustment The burner is fully adjustable between high and low settings. 1. Press the control knob and turn it anticlockwise. The burner will ignite. 2. Keep the control knob fully depressed for at least 3 seconds between high and low settings. The thermocouple safety pilot has been activated. -
Page 12: Maintenance
Maintenance Daily cleaning Regular maintenance after use prevents spilt food from setting too long and creating stubborn stains. Use a mild detergent for this. First clean the control knobs, burners and pan support and only then the drip tray or glass cover. This prevents the drip tray or glass cover to becoming dirty again after cleaning. -
Page 13: Faults
Faults General NOTE! If you notice a crack in the glass top (however small), switch off the hob immediately, unplug the hob, and close off the gas supply. Then contact the Service Department. Troubleshooting table If your hob does not work properly, it does not always mean that it is defective. Make sure to check the points mentioned below in the table, or visit our website for more information. - Page 14 Faults Table continued from last page Symptom Possible cause Solution Burner extinguishes after The control knob has not Keep the control knob fully depressed igniting. been depressed long or for at least 3 seconds between high deep enough (at least 3 and low settings.
-
Page 15: Technical Data
Technical data Information according to regulation (EU) 66/2014 Measurements according EN60350-2 / EN 30-2-1 HG1355GB HG1365GB Model identification Gas Hob Gas Hob Type of hob Number of gas burners 61.5 Energy efficiency per gas burner Rapid burner ) in % gas burner 62.1... -
Page 16: Installation
Installation Safety This appliance should only be connected by a registered installer. Prior to installation, ensure that the local distribution conditions (voltage, frequency, nature of the gas and gas pressure) and the adjustment of the appliance are compatible. The voltage, frequency, power, type of gas and the country for which the appliance has been designed are shown on the appliance rating plate. - Page 17 Installation accordance with current installation regulations. Particular attention shall be given to the relevant requirements regarding ventilation. We recommend that the gas hob be connected by means of a fixed pipe. Connection using a specially designed safety hose is also permitted. The pipe behind the oven must be made entirely out of metal.
-
Page 18: Preparations For Installation
Installation Preparations for installation Free space around the appliance A (>mm) B (>mm) C (>mm) Accessibility Accessibility Oven... -
Page 19: Built-In
Installation Built-in Appliance dimensions Cut-out in the worktop A (>mm) B (mm) C (mm) D (>mm) E (>mm) F (>mm) G (>mm) (mm) Sealing tape... - Page 20 Installation Install the appliance in the worktop Coupling profile Coupling profile...
-
Page 21: Gas Connection
Installation Gas connection metal Oven safety hose PTFE tape... -
Page 22: Connecting & Testing
Installation Connecting & testing WARNING! Check if connections are gastight. -
Page 23: Environment
Environment Environment Disposal of the appliance and packaging Sustainable materials have been used during the manufacture of this appliance. This appliance must be disposed of responsibly at the end of its service life. Ask your local authorities for more information about how to do this. -
Page 24: Your Notes
The appliance identification card is located on the bottom of the appliance. Stick the appliance identification card here. www.asko.com 861721 We reserve the right to make changes.
