Summary of Contents for Asko HG8843BGB Series

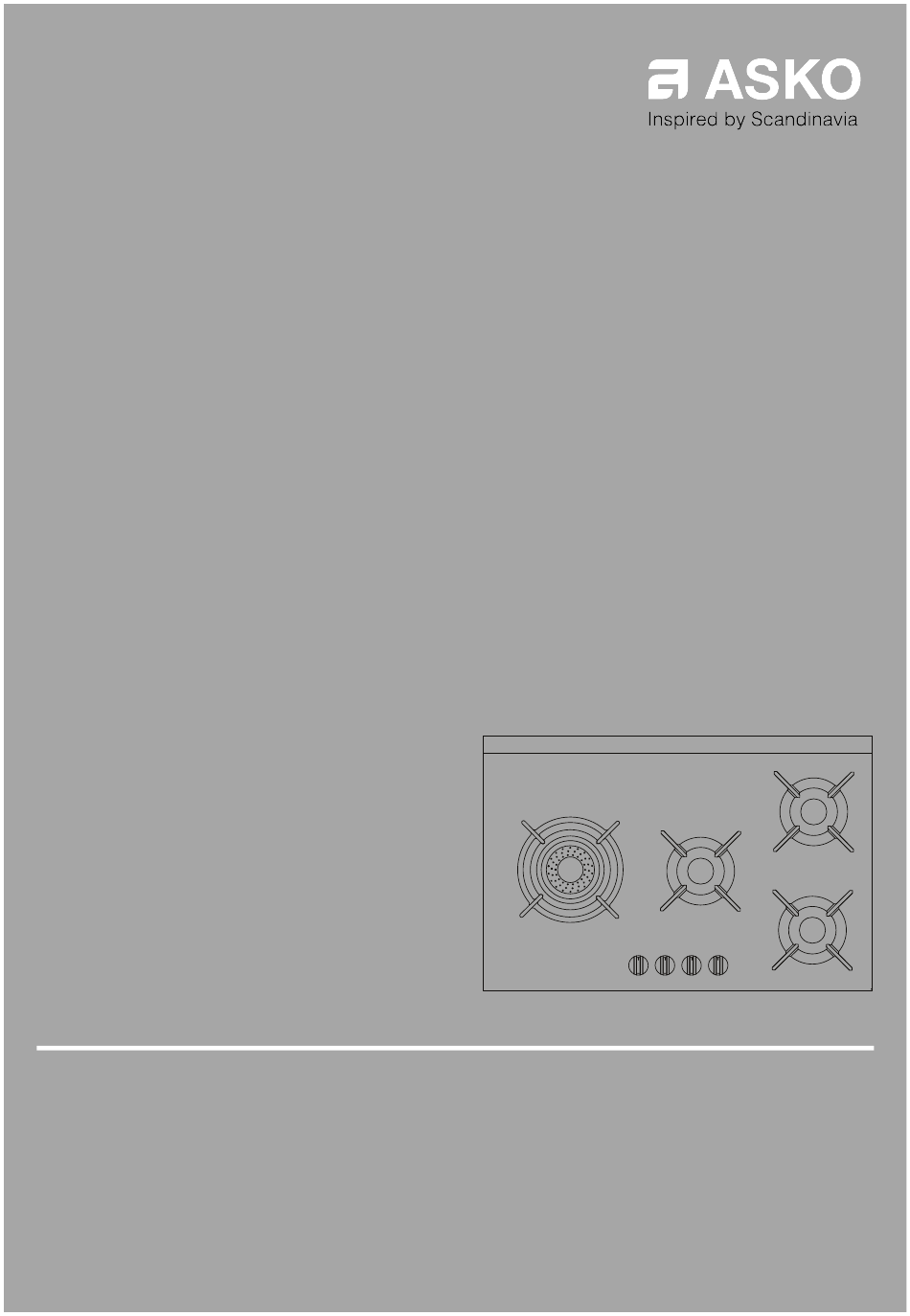

- Page 1 INSTRUCTIONS FOR USE HG1825AB / HG8BBE1A Gas hob HG1885SB / HG8BBE1B HG8843BGBx / HG8BBE1A...
-
Page 2: Table Of Contents
Contents Pictograms used ........Faults ............Safety ............General ............Description ..........Technical data ..........Control knob ..........Information according to regulation (EU) Use .............. 66/2014 ............Pans ............. Installation ..........Wok ring and small pan grid ......Safety ............Pan support .......... -
Page 3: Pictograms Used
Pictograms used The following symbols are used throughout the manual, and they have the following meanings: INFORMATION! Information, advice, tip, or recommendation WARNING! Warning general danger GAS CONNECTION! Warning gas connection ELECTRIC SHOCK! Warning danger of electric shock HOT SURFACE! Warning danger of hot surface DANGER OF FIRE! -
Page 4: Safety
Safety WARNING! READ CAREFULLY AND KEEP IT FOR FUTURE REFERENCE! General The manufacturer cannot be held liable for any damage resulting from failure to follow the safety instructions and warnings. Damage caused by incorrect connection, incorrect fitting, or incorrect use is not covered by the warranty. WARNING! This appliance and the accessible parts will become hot during use. - Page 5 Safety WARNING! Use only hob guards designed by the manufacturer of the cooking appliance or indicated by the appliance manufacturer in the instructions for use as suitable or hob guards incorporated in the appliance. The use of inappropriate guards can cause accidents. If a drawer underneath the appliance is permitted (see the installation instructions), without an intermediate bottom, this should not be used to store highly flammable objects/materials.
- Page 6 Safety The ceramic top is extremely strong but not unbreakable. For example, a spice jar or sharp utensil falling on it could cause it to break. WARNING! WARNING: If the surface is cracked, switch off the appliance to avoid the possibility of electric shock. Ceramic glass plate broke Shut immediately off all burners and any electrical heating element and isolate the appliance from the power supply.
- Page 7 Safety WARNING! Prolonged intensive use of the appliance may call for additional ventilation, for example opening of a window, or more effective ventilation, for example increasing the level of mechanical ventilation where present. CAUTION: The use of a gas cooking appliance results in the production of heat, moisture and products of combustion in the room in which it is installed.
- Page 8 Safety Clean the burner parts regularly for the safe and correct operation of the burners. Missing rubber feet from the pan supports can cause scratches on the drip tray or poor combustion of the burner. If the rubber feet are missing, please contact our service department.
-
Page 9: Description

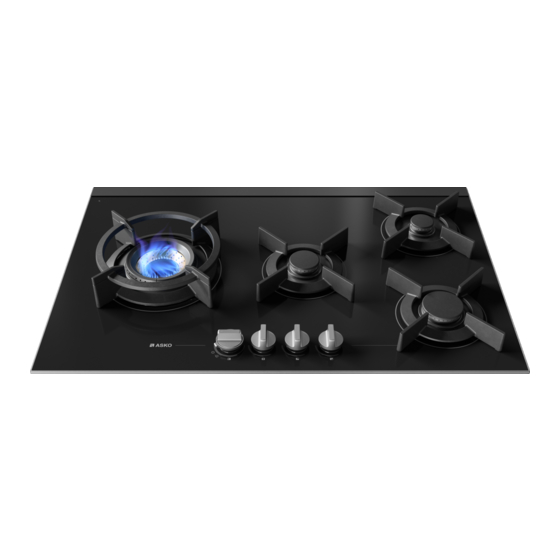

Description Control knob 1. Rapid burner 2. Semi-rapid burner 3. Simmer burner 4. Wok burner 5. Pan support 6. Glass top or stainless steel drip tray 7. Wok selector ring 8. Control knob 9. Zone indication 10. 0 position 11. High setting 12. -
Page 10: Use
Pans Always ensure that the flames remain under the pan. A lot of energy is lost when flames burn around the outside of the pan. The handles could also become too hot. wrong right Suitable cookware Only use cookware with a suitable diameter. The cookware must not protrude over the edge of the hob. -
Page 11: Wok Ring And Small Pan Grid
Wok ring and small pan grid Wok ring Small pan grid The wok ring for use with the wok burner supplied or obtainable as an accessory provides extra stability for woks with a round base. The small pan grid-supplied or obtainable as an accessory makes it possible to use very small pans. CAUTION! Do not use the small pan grid on the wok burner. -
Page 12: Wok Burner Position
Wok burner position Place the wok burner in the correct way. Placing the wok burner parts incorrectly can result in a poorly functioning burner. 1. Place the burner distributor (2) in the burner housing (1). 2. Use the positioning notches to place the inner ring (3) on the burner distributor (2). -
Page 13: Operation
Operation Ignition and adjustment The burner is fully adjustable between high and low settings. 1. Press the control knob and turn it anticlockwise. The burner will ignite. 2. Keep the control knob fully depressed for at least 3 seconds between high and low settings. The thermocouple safety pilot has been activated. -
Page 14: Maintenance
Maintenance Daily cleaning Regular maintenance after use prevents spilt food from setting too long and creating stubborn stains. Use a mild detergent for this. First clean the control knobs, burners and pan support and only then the drip tray or glass cover. This prevents the drip tray or glass cover to becoming dirty again after cleaning. -
Page 15: Faults
Faults General NOTE! If you notice a crack in the glass top (however small), switch off the hob immediately, unplug the hob, and close off the gas supply. Then contact the Service Department. Troubleshooting table If your hob does not work properly, it does not always mean that it is defective. Make sure to check the points mentioned below in the table, or visit our website for more information. - Page 16 Faults Table continued from last page Symptom Possible cause Solution Burner extinguishes after The control knob has not Keep the control knob fully depressed igniting. been depressed long or for at least 3 seconds between high deep enough (at least 3 and low settings.
-
Page 17: Technical Data
Technical data Information according to regulation (EU) 66/2014 Measurements according EN60350-2 / EN 30-2-1 HG1825AB HG1885SB Model identification HG8843BGBx Gas hob Gas hob Type of hob Number of gas burners 61.5 61.5 Energy efficiency per gas burner Rapid burner ) in % gas burner 62.1 62.1... -
Page 18: Installation
Installation Safety This appliance should only be connected by a registered installer. Prior to installation, ensure that the local distribution conditions (voltage, frequency, nature of the gas and gas pressure) and the adjustment of the appliance are compatible. The voltage, frequency, power, type of gas and the country for which the appliance has been designed are shown on the appliance rating plate. - Page 19 Installation Gas connection Gas connection 1/2” ISO 228 / ISO 7-1 / EN 10226-1 (1/2” ISO 228 / 1/2” ISO 228 FR only). The gas connection must comply with national and local regulations. See appliance label for technical gas data. This appliance is not connected to a combustion products evacuation device.
-
Page 20: Preparations For Installation
Installation Preparations for installation Free space around the appliance A (mm) B (mm) C (mm) D (mm) min. 650 min. 750 min. 450 min. 120 Accessibility Accessibility Oven... -
Page 21: Built-In
Installation Built-in Appliance dimensions Cut-out in the worktop Sealing tape Stainless steel drip tray Glass drip tray worktop... -
Page 22: Gas Connection
Installation Install the appliance in the worktop Gas connection metal safety hose PTFE tape... -
Page 23: Connecting & Testing
Installation Connecting & testing WARNING! Check if connections are gastight. -
Page 24: Environmental Aspects
Environmental aspects Disposal of the appliance and packaging Sustainable materials have been used during the manufacture of this appliance. This appliance must be disposed of responsibly at the end of its service life. Ask your local authorities for more information about how to do this. - Page 25 The appliance identification card is located on the bottom of the appliance. Stick the appliance identification card here. www.asko.com 861662 We reserve the right to make changes.
