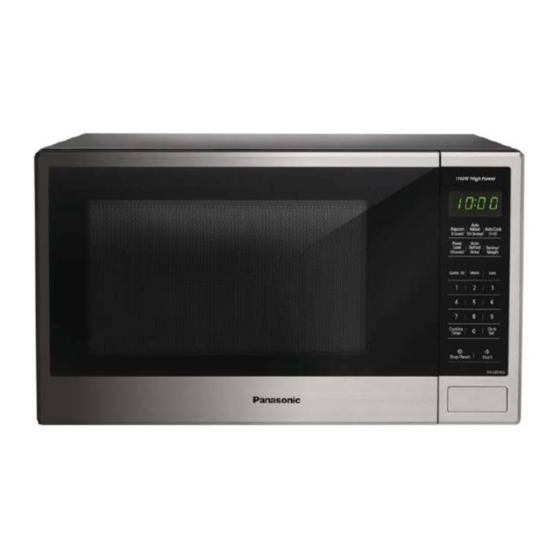

Owner’s Manual Microwave Oven Household Use Only EM134AC2 Model No. EM134AC9 NN-SB636B NN-SB636W READ ALL INSTRUCTIONS CAREFULLY BEFORE USING THE OVEN. For microwave oven safety reference, please visit the FDA’s web page at: http://www.fda.gov/Radiation -EmittingProducts/default.htm...
CONTENTS Safety Information IMPORTANT SAFETY INSTRUCTIONS ............................... 1-3 Installation and Grounding Instructions ............................3-4 Food Preparation ....................................4-5 Location of Controls ....................................7 Operation Using the Microwave for the First Time ............................. 8 Setting the Clock ......................................8 Setting the Child Safety Lock ................................. 8 Cooking ........................................
(c) DO NOT operate the oven if it is damaged. It is particularly Thank you for purchasing a Midea Microwave Oven Your microwave oven is a cooking appliance and you should use as much care as you use with a stove or any other cooking appliance.
Page 5
IMPORTANT SAFETY INSTRUCTIONS (continued) 10. DO NOT allow children to use this appliance, unless closely supervised by an adult. DO NOT assume that because a child has mastered one cooking skill he/she can cook everything. 11. DO NOT operate this appliance if it has a damaged cord or plug, if it is not working properly, or if it has been damaged or dropped. 12.
2. The oven is designed for installation into a wall cabinet by using Placement of Oven the proper trim kit available from a local Midea dealer, 1. The oven must be placed follow all instructions packed with the kit.
Using a higher voltage is dangerous and may result in a fire or oven • Plug into properly installed and grounded three-prong damage. Using a lower voltage will cause slow cooking. Midea outlet. is NOT responsible for any damages resulting from the use of the oven with any voltage other than specified.
Page 8
Food Preparation (continued) 3) DEEP FAT FRYING 8) THERMOMETERS • DO NOT deep fat fry in your microwave oven. Cooking oils • DO NOT use a conventional may burst into flames and may cause damage to the oven and meat thermometer in may result in burns.
Page 9
Cookware Guide This section answers the question, “Can I use in the Microwave?” Aluminum Foil Glass Jars Check Microwave Safe manufacturers’ directions for recommended uses. Some microwave safe It is not recommended No. Most glass jars are not plastic containers are not suitable for cooking to use.
Location of Controls ➉ ➁ ➀ ➈ ➃ ➄ ➅ ➂ ➆ ➇ ➂ Auto Defrost Pad External Air Vent (See page 11) Internal Air Vent Stop/Reset Pad is pressed once Serving/Weight Pad (See page 10) Door Safety Lock System during oven operation, Start Quick 30 Pad Exhaust Air Vent...
Operation Using the Microwave Setting the Child Setting the Clock Cooking for the First Time Safety Lock Display Window Plug into a properly grounded electrical outlet. The oven automatically defaults to the If cooking at high power (10), imperial measure system When the time of day appears With the oven NOT cooking, skip to step 2.
Operation (continued) Setting a Standing Setting a Delayed Cooking (continued) Time Start Some recipes call for a standing The start time can be delayed time after cooking. To do this, to start cooking at a later time. repeat steps 1 and 2 in the To do this, first press Cooking section on previous Cooking Timer...
Operation (continued) Quick 30 Popcorn (Set or add cooking time in (Example: To pop 3.5 oz (100 g). of popcorn) 30 seconds increments) NOTES: Pop one bag at a time. Place bag in oven according to manufacturers’ directions. Start with popcorn at room Press Popcorn until the desired temperature.
Operation (continued) Auto Conversion Defrosting Tips & Techniques Defrost Follow the chart to convert Preparation For Freezing: 5. Drain liquids during defrosting. 1. Freeze meats, poultry, and fish in 6. Turn over (invert) items during ounces or hundredths of a packages with only one or two defrosting.
Operation (continued) Auto Reheat Auto Cook NOTES: NOTES: 1. After having used the Auto 1. After having used the Auto Reheat feature a few times, you Cook feature a few times, you may decide you would prefer may decide you would prefer your food cooked to a different your food cooked to a different doneness –...
Operation (continued) Auto Cook Chart Setting the Timer See the chart below for Auto Cook categories. Recipe Serving/Weight Hints 1-3 cups 1.Beverages This feature allows you to reheat 1 cup (250 ml) (250, 500,750 ml) 2 cups (500 ml) or 3 cups(750ml) of room temperature beverages without setting power and time.
Food Characteristics Food Characteristics Covering As with conventional cooking, moisture evaporates during microwave Bone and Fat cooking. Casserole lids or plastic wrap are used for a tighter seal. When using Both bone and fat affect cooking. Bones may cause plastic wrap, vent the plastic wrap by folding back part of the plastic wrap irregular cooking.
Care and Cleaning of Your Microwave Oven Please see below and the following page for particular cleaning instructions for each section of the oven. BEFORE CLEANING: Unplug oven at wall outlet. If outlet is inaccessible, leave oven door open while cleaning. AFTER CLEANING: Be sure to place the Roller Ring and the Glass Tray in the proper position and press Stop/Reset Button to...
Before Requesting Service See below before calling for service, as most problems can easily be remedied by following these simple solutions: Some radio and TV interference might occur when you cook with the microwave The oven causes TV oven. This interference is similar to the interference caused by small appliances interference.
Limited Warranty (Only for U.S.A.) Products Limited Warranty Limited Warranty Coverage (For USA Only) If your product does not work properly because of a defect in materials or Some states do not allow the exclusion or limitation of incidental or workmanship, Consumer Electronics Corporation (referred to as consequential damages, or limitations on how long an implied warranty “the warrantor”) will, for the length of the period indicated on the chart...
Specifications Power Source ............................................120 V, 60 Hz Power Consumption ....................................... 13.5 Amps, 1,500 W Cooking Power* ............................................... 1,100 W Outside Dimensions (W x H x D) ..................................20 ⁄ ” x 1 ⁄ ” x 16 ⁄ ” (519 mm x 315 mm x 410 mm) Oven Cavity Dimensions (W x H x D) ................................
User’s Record The serial number of this product may be found on the back side of the oven or on the left side of the control panel. You should note the model number and the serial number of this oven in the space provided and retain this book as a permanent record of your purchase for future reference.
