DOREL ASIA

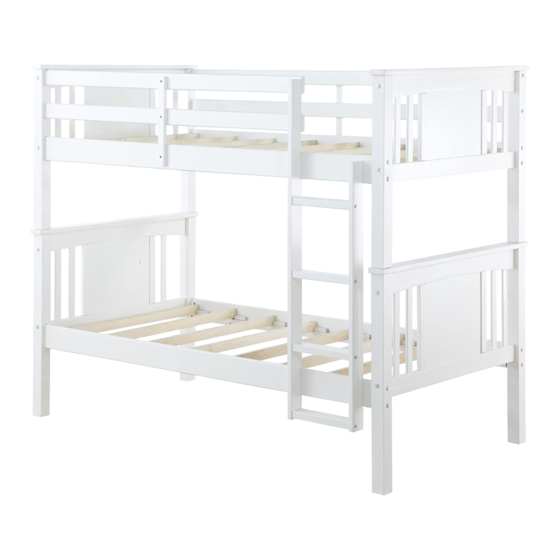

TWIN BUNK BED
Model No.: DA7519E
DO NOT RETURN PRODUCT TO THE STORE.
If a part is missing or damaged, contact our customer service
department. We will replace the part FREE of charge.
DA7519W
0-65857-17346-8 ESPRESSO
0-65857-17347-5
THIS INSTRUCTION BOOKLET
CONTAINS IMPORTANT SAFETY
INFORMATION. PLEASE READ AND
KEEP FOR FUTURE REFERENCE.
(TAKEN FROM CARTON)
Date of purchase:
_______ / _______ / _______
NEED HELP!
Tel #: 1-800-295-1980
E-Mail: das@dorel.com
CALL US FOR AS
Fax #: 514-353-7819
1-800-295-1980
DO NOT RETURN
E-MAIL:DAS@DO
ESPRESSO
WHITE
UPC CODE:
WHITE
NOTE:
Lot number:
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Dorel Asia DA7519E
Summary of Contents for Dorel Asia DA7519E
- Page 1 DOREL ASIA TWIN BUNK BED Model No.: DA7519E ESPRESSO DA7519W WHITE UPC CODE: 0-65857-17346-8 ESPRESSO 0-65857-17347-5 WHITE NOTE: THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. Lot number: (TAKEN FROM CARTON) Date of purchase: _______ / _______ / _______ DO NOT RETURN PRODUCT TO THE STORE.
- Page 2 CUSTOMER SERVICE If you are missing parts or have any questions about this product, contact our customer service representative first! CALL 1-800-295-1980 You can also order parts by writing to the address listed below. Please include the product model number, color and a detailed description of the part.
-
Page 3: Care And Cleaning
NOTES READ EACH STEP CAREFULLY BEFORE STARTING. IT IS VERY IMPORTANT THAT EACH STEP OF INSTRUCTION IS PERFORMED IN THE CORRECT ORDER. IF THESE STEPS ARE NOT FOLLOWED IN SEQUENCE, ASSEMBLY DIFFICULTIES WILL OCCUR AND CAN RESULT IN INJURY. CAUTION: ADULT ASSEMBLY REQUIRED MAKE SURE ALL PARTS ARE INCLUDED. -
Page 4: Hardware List
TWIN BUNK BED DA7519E / DA7519W HARDWARE LIST ∅1/4" x 100mm ∅6.5mm x 48mm JOINT CONNECTOR (4mm HEX HEAD) WOOD JOINT CONNECTOR (4mm HEX HEAD) 16 PCS 14 PCS ∅6.5mm x ∅4mm x 35mm WOOD JOINT CONNECTOR (4mm HEX HEAD) -
Page 5: Parts List
TWIN BUNK BED DA7519E / DA7519W PARTS LIST TOP POST TOP POST TOP POST 2 PCS 1 PC 1 PC BOTTOM POST BOTTOM POST TOP HEADBOARD TOP 2 PCS 2 PCS CROSS -2 PCS... - Page 6 TWIN BUNK BED DA7519E / DA7519W PARTS LIST HEADBOARD BOTTOM CROSS TOP SIDE RAIL (WITH 3 HOLES) BOTTOM SIDE RAIL (WITH 2 HOLES) 4 PCS 1 PC 1 PC TOP SIDE RAIL (WITH 1 HOLE) SLAT BOTTOM SIDE RAIL (WITH NO HOLE)
-
Page 7: Parts Lists
TWIN BUNK BED DA7519E / DA7519W PARTS LIST TOP HEADBOARD SLAT SLAT BOTTOM HEADBOARD SLAT 8 PCS 4 PCS 8 PCS TOP HEADBOARD SLAT TOP HEADBOARD PANEL BOTTOM HEADBOARD SLAT 4 PCS 2 PCS 4 PCS BOTTOM HEADBOARD PANEL BOTTOM HEADBOARD TOP... - Page 8 TWIN BUNK BED DA7519E / DA7519W STEP 1 One of the headboard top crosses (F) has a label on it. Do not use it in this step. Insert stoppers (10) into headboard bottom cross (G) as shown above. Insert top headboard slats (S & V) and top headboard panel (W) to top headboard bottom cross (G) and push down until firmly in place.
- Page 9 TWIN BUNK BED DA7519E / DA7519W STEP 2 Repeat the previous step to assemble the remaining three sets of headboards. Be sure to pair the bottom posts (D) and (E) for one pair; (E) and (D) for another; and the top posts (C) and (A) for the last pair.
- Page 10 TWIN BUNK BED DA7519E / DA7519W Holes Holes STEP 3 Attach the two headboards with bottom posts (D and E) to bottom side rails (I and K) using joint connectors (1) and barrel nuts (8) as shown. Use Allen key (9) to tighten to joint connectors.
- Page 11 TWIN BUNK BED DA7519E / DA7519W STEP 4 Insert wood dowels (7) into each end of the long guardrails (M). Attach two long guardrails (M) and two top side rails (H and J) to top posts (A and B) & (A and C) as shown.
- Page 12 TWIN BUNK BED DA7519E / DA7519W STEP 5 Insert two slats (T) onto the center slots of the bottom side rails (I and K) of the bottom bunk as shown. NOTE: Once inserted, there should be three empty spaces left on each side.
- Page 13 TWIN BUNK BED DA7519E / DA7519W STEP 6 Insert slats (L) into the remaining holes on the bottom side rails (I and K) on the lower bunk. Secure slats (L) to the bottom side rails (I and K) with flat head wood screws (4), using a phillips head screw driver (not included).
- Page 14 TWIN BUNK BED DA7519E / DA7519W STEP 7 Insert wood dowels (7) into the holes in the ends of short guardrails (N). Attach short guardrails (N) to top post (A) with wood joint connectors (3). Attach the guardrail leg (R) to the short guardrails (N) and top side rail (H) with flat head wood screws (5).
- Page 15 TWIN BUNK BED DA7519E / DA7519W 8 PCS 8 PCS STEP 8 To assemble the ladder, insert wood dowels (7) into the end of the ladder steps (Q). Attach long ladder end (O) and short ladder end (P) to ladder steps (Q) with wood joint connectors (2), using...
- Page 16 TWIN BUNK BED DA7519E / DA7519W Slats are not shown in illustration for clarity 6PCS STEP 9 Attach the ladder to the short guardrails (N), the top side rail (H) and bottom side rail (I) with wood joint connectors (2) as shown.
- Page 17 Instructions for Converting the bunk bed into two single beds DA7519E / DA7519W Remove the ladder and all the guardrails. With the help of another person, remove the top bunk from the lower bunk. Disassemble the side rails from all headboards (top and lower bunks).
- Page 18 TWIN BUNK BED DA7519E / DA7519W CAUTION: This unit is intended for use only with the products and/or maximum weights indicated. Use with other products and/or products heavier than the maximum weights indicated may result in instability or cause possible injury.
- Page 19 MODEL #: DA7519E / DA7519W Customer Service PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE PLEASE CONTACT CUSTOMER SERVICE REPRESENTATIVES AT THE FOLLOWING NUMBERS SHOULD THERE BE ANY MISSING OR DEFECTIVE PART(S). Customer Service Phone Number 1-800-295-1980 Email: das@dorel.com...
