Preparations

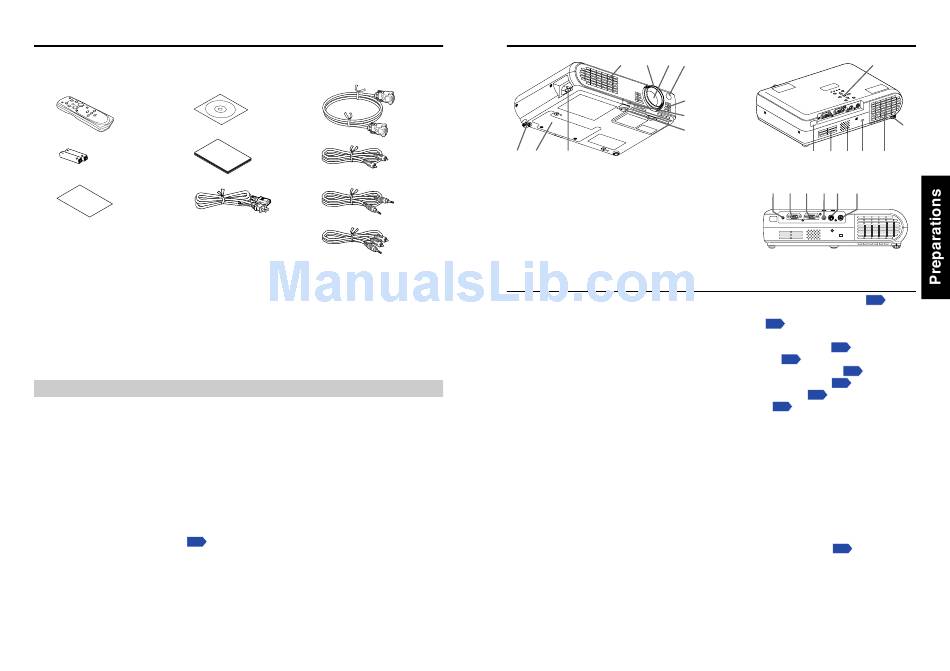

Checking the package contents

Please make sure that the following items are included in the box, along with the main unit. If
any item is missing, please contact the store immediately where you purchased the product.
(1) (4)
(2) (5)
(3) (6)
I I
(1) Remote control
I I
(2) R03 (SIZE AAA) batteries for remote
control (2)
I I
(3) Quick Reference
I I
(4) CD-ROM
I I
(5) Owner's Manual
Note
The shape and number of supplied power cords vary depending on the product destination.
NThe Supplied CD-ROM
The supplied CD-ROM contains an owner's manual, including information omitted in this
Owner's manual (Getting started) and Acrobat
I Installing Acrobat
® Reader™
Windows ® : Run the CD-ROM, select the Reader/English folder, and run ar500enu.exe.
Follow the on-screen instructions.
Macintosh: Run the CD-ROM, select the Reader/English folder, and run Reader
Installer. Follow the on-screen instructions to install the software.
I Viewing the manual
Run the CD-ROM and double-click on Start.pdf. Acrobat
menu screen of the Owner's manual appears. Click on your language. The Owner's
Manual cover and list of bookmarks appear. Click on a bookmark title to view that
section of the manual. Click on p. to view a reference page with related information.
See the Help menu for more information about Acrobat
(7)
(8)
(9)
(10)
I I
(6) Power cord (See note)
I I
(7) RGB cable
I I
(8) Video cable
I I
(9) Audio cable (for computer)
I I
(10) Audio cable (for a VCR)
®
Reader™ to view the manual.
®
Reader™ launches, and the
® Reader™.
14

Names of each part on the main unit

(4) (3) (2) (1)
(9)
(8)
(5) (6) (7)
Name : Function
(1) Infrared remote sensor : Senses commands from the remote control.
(2) Lens : Projects expanded image.
(3) Focusing ring : Adjusts screen focus.
(4) Air intake : Draws in air from outside unit.
(5) Tilt adjuster : Adjusts the projector's horizontal tilt.
(6) Lamp cover : Remove to replace lamp.
(7) AC IN socket : Connect the supplied power cord here.
(8) Foot adjuster : Adjusts the vertical projection angle.
(9) Foot adjuster release button : Press to stow the foot adjuster.
(10) Control panel : Operates the projector.
(11) Air exhaust : Expels air that has grown hot inside the projector.
(12) Speaker : Plays audio.
(13) Anti-theft lock hole : Attach a security chain, etc. here.
(14) AUDIO terminal : Feeds the audio signal from a computer or video
equipment.
(15) MONITOR terminal : Connected to the monitor display.
(16) COMPUTER terminal : Feeds the RBG signal from a computer or the compo-
nent video signal (Y/P
(17) VIDEO terminal : Feeds the video signal from a video equipment.
(18) S-VIDEO terminal : Feeds the S-video signal from a video equipment.
(19) CONTROL terminal : Connected to the RS-232C port on a controlling
computer for operating the projector.
(10)
(4)
(1) (11) (12) (13)
(14) (15) (16) (17) (18)(19)
COMPUTER- VIDEO
AUDIO MONITOR ( Y/P B /P R ) VIDEO S-VIDEO CONTROL
p.23
p.23
p.34
p.20
p.23
p.23
p.16
/P ) from a video equipment.
B R
p.40
15
(5)
(11)
p.17
