BDW126X
12 place settings

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BDW126X and is the answer not in the manual?

Questions and answers

alex
June 5, 2025

how to remove kick plate

0

Related Manuals for Blanco BDW126X

Summary of Contents for Blanco BDW126X

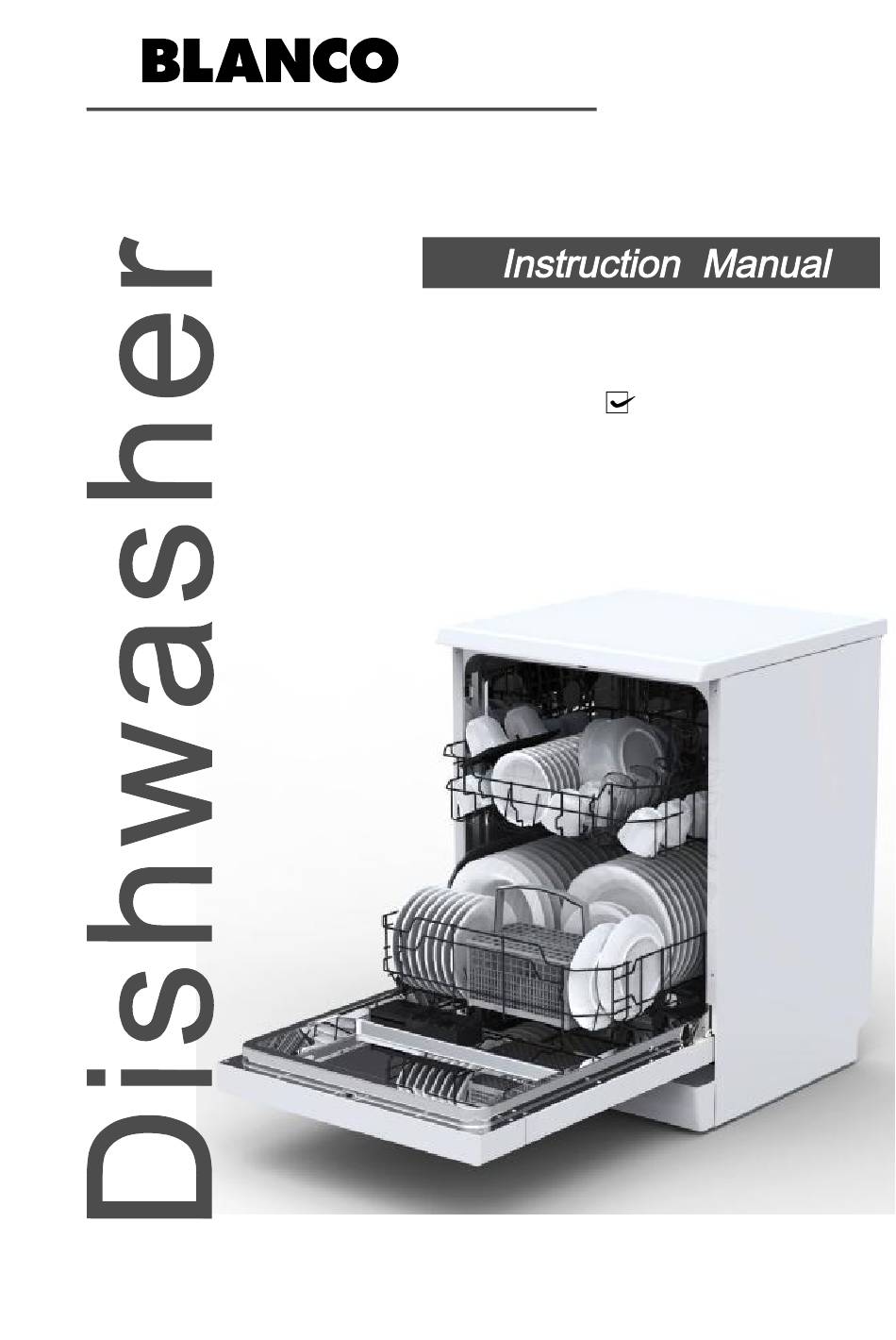

  • Page 1 BDW126X 12 place settings...
  • Page 2 Thank you for your choosing Blanco. You will find that the clean lines and modern look of your Blanco appliance blends perfectly with your kitchen décor. It is easy to use and performs to a high standard. Blanco is committed to providing increasingly efficient products that are attractive, reliable, easy to use and respect the environment.
  • Page 3 For detailed operating method read the corresponding content on the instruction manual. Switch on the appliance Open the door, p ress the On/Off button to switch on the appliance. For each wash cycle. Fill the detergent dispenser For programs with pre-wash only. (Follow the user instructions) Check the rinse aid level Electric indicator on control panel (if provided).
  • Page 5 When using your dishwasher, follow the precautions listed below: This appliance must be grounded. In the event of a Improper connection of the equipment-grounding malfunction or breakdown, grounding will reduce conductor can result in the risk of an electric shock. the risk of an electric shock by providing a path of Check with a qualified electrician or service least resistance of electric current.
  • Page 6 To get the best performance from your dishwasher, read all operating instructions before using it for the first time. 6.Start /Pause button: To start the selected 1. Program indicators: To show which washing program or pause the washing program program you have chose; when the machine is working.

  • Page 7: How To Fill The Rinse Aid Dispenser

    Before using your dishwasher for the first time: Fill the rinse aid dispenser Fill in detergent Rinse Aid Dispenser The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes, which can leave spots and streaks. It also improves drying by allowing water to roll off the dishes. Your dishwasher is designed to use liquid rinse aids.

  • Page 8: Adjusting Rinse Aid Dispenser

    Clean up any rinse aid spilled while during filling with an absorbent cloth to avoid excessive foaming during the next wash. Don't forget to replace the cap before you close dishwasher door. Adjusting Rinse Aid Dispenser The rinse aid dispenser has six or four settings. Always start with the dispenser set on "4".

  • Page 9: Proper Use Of Detergent

    Proper Use of Detergent Use only detergent specifically made for the use in dishwashers. Keep your detergent fresh and dry. Don't put powdered detergent into the dispenser until you're ready to wash dishes. Adding detergent to dispenser Fill in Detergent Fill the detergent dispenser with detergent.
  • Page 10 Consider buying utensils which are identified as dishwasher-proof. Use a mild detergent that is described as 'kind to dishes'. If necessary, seek further information from the detergent manufacturers. For particular items, select a program with as low temperature as possible. To prevent damage, do not take glass and cutlery out of the dishwasher immediately after the program has ended.

  • Page 11: Folding Back The Cup Shelves

    The upper basket is designed to hold more delicate We suggest that you place large items and the most and lighter dishware such as glasses, coffee and difficult to clean items are to be placed into the lower tea cups and saucers, as well as plates, small bowls basket: such as pots, pans, lids, serving dishes and and shallow pans (as long as they are not too dirty).
  • Page 12 Means: need to fill rinse aid into the Rinse-Aid Dispenser. For the heaviest soiled ° Pre-wash(50 loads, such as pots, pans, ° Wash (60 Intensive casserole dishes and dishes Rinse 5/25g Rinse that have been sitting with 18.5 (Or All in1) °...

  • Page 13: Switch Off The Dishwasher

    Premise: 1 A cycle that is underway can only be modified if it has only been running for a short time. Otherwise, the detergent may have already been released, and the appliance may have already drained the wash water. In this case, the detergent dispenser must be refilled (see the section entitled " Detergent " ). Press the Start/Pause button, the machine will be in standby state, press the program button more than 3s then you can change the program to the desired cycle setting (see the section entitled "...

  • Page 14: Filter Assembly

    The filter prevents larger remnants of food or other objects from getting inside the pum. The residues may block the filter, in this case they must be removed. The filter system consists of a coarse filter, a flat (Main filter) and a microfilter(Fine filter).

  • Page 15: Cleaning The Filter

    Notes: - Inspect the filters for blocking after every time the dishwasher has been used. - By unscrewing the coarse filter, you can remove the filter system. Remove any food remnants and clean the filters under running water. The entire filter assembly should be cleaned once a week. Cleaning the Filter To clean the coarse filter and the fine filter, use a cleaning brush.
  • Page 16 After Every Wash When not in Use for a LongTime It is recommend that you run a wash cycle with the After every wash, turn off the water supply to the dishwasher empty and then remove the plug from the appliance and leave the door slightly open so that socket, turn off the water supply and leave the door of moisture and odours are not trapped inside.

  • Page 17: Drain Pipe

    The appliance must be connected to the water mains using new hose-sets. The old hose-sets should not be reused. Water pressure must be between 0,04 MPa and 1 MPa. If the pressure is below the minimum consult our Service Department for advice. Pull The safety supply hoses completely out from storage compartment located at rear of dishwasher.
  • Page 18 How to Drain Excess Water From Hoses If the sink is more than 1000mm higher than the floor, the excess water in hoses cannot be drained directly into the sink. It will be necessary to drain excess water from hoses into a bowl or suitable container that is held outside and lower than the sink.
  • Page 19 Fuse blown, or the Replace fuse or reset circuit breaker. Remove any other circuit breaker acted appliances sharing the same circuit with the dishwasher Power supply is not Make sure the dishwasher is turned on and the door is turned on closed securely.
  • Page 20 The dishes were not See notes in " Loading the Dishwasher Baskets ". loaded correctly. The program was Select a more intensive programme. not powerful enough. See" Wash Cycle Table ". Not enough detergent Use more detergent, or change your detergent. was dispensed.
  • Page 21 If overflow occurs, turn off the main water supply before calling a service. If there is water in the base pan because of an overfill or small leaks, the water should be removed before restarting the dishwasher. Height : 845mm Width : 598 mm (with the door closed)
