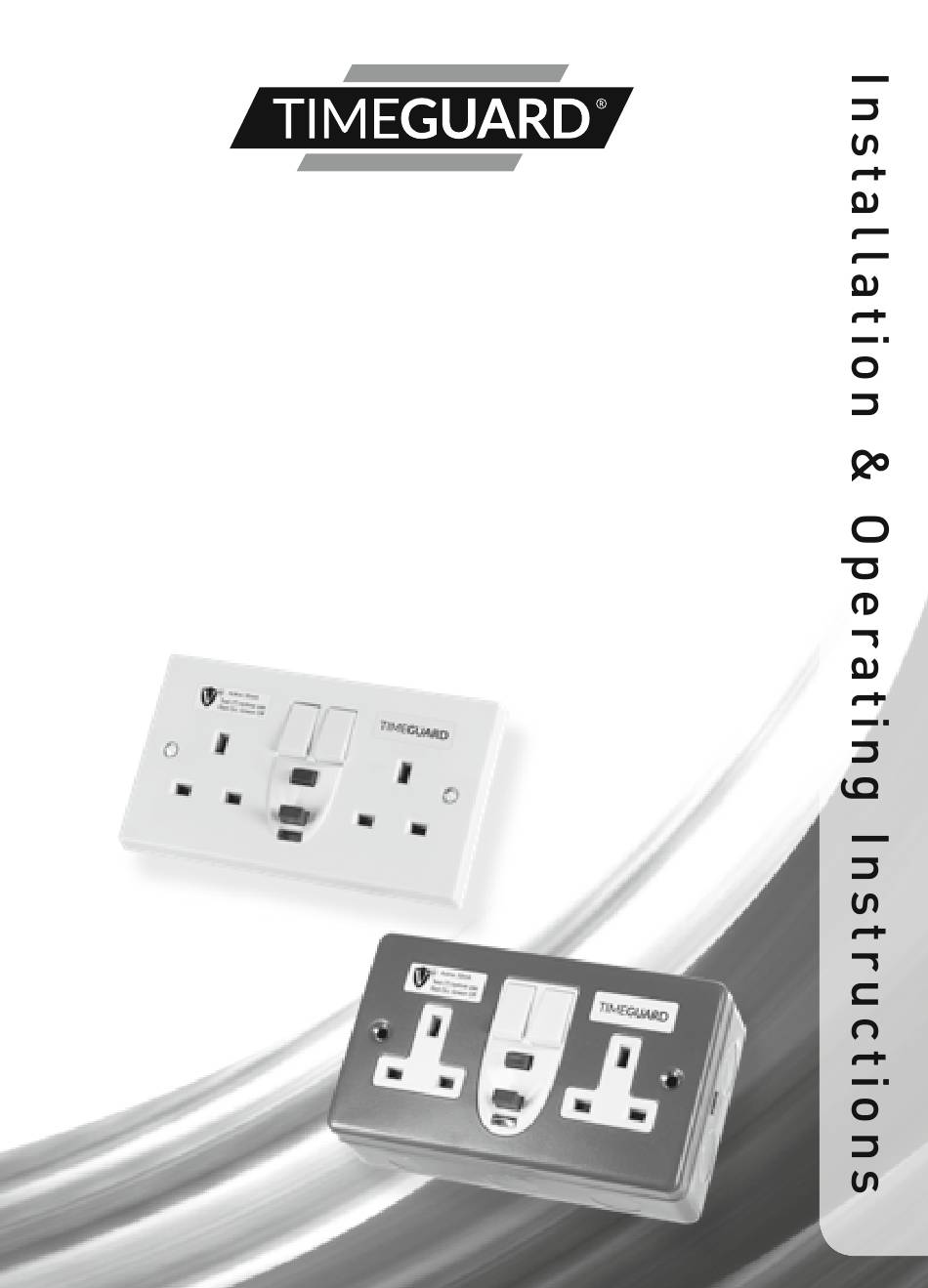

- Page 1 RCD Double Sockets RCD05WAVN RCD Double White Socket – Active RCD06WPVN RCD Double White Socket – Passive RCD07MAVN RCD Double Metal Socket – Active RCD08MPVN RCD Double Metal Socket – Passive...
-
Page 2: General Information
1. General Information These instructions should be read carefully and retained for further reference and maintenance. The Timeguard range of RCDs, provide protection against fire hazard and rapid double pole disconnection from electric shock for the appliance connected to it. They fully comply with BS7288 and BS1363-2 (including updates and amendments). - Page 3 • Always test the RCD before use. If the test procedure is not completed satisfactorily or an appliance continues to trip the RCD seek professional advice and switch off the appliance. • To clean use a dry cloth only. Do NOT use any liquid cleaners. •...
-
Page 4: Technical Specifications
4. Technical Specifications General RCD Specifications • Operating Voltage: 230V AC 50 Hz • Max Current: Fully complies with the current rating requited by BS1363-2 (including updates and amendments) • Rated Trip Current: 30mA • RCD Type: Double Pole, suitable for 2 and 3 wire applications •... - Page 5 – essential for applications such as freezers. The non-latching version, if set, allows the contacts to open if the mains supply is interrupted – a ‘safety must’ for applications such as power tools. RCD05WAVN & RCD06WPVN • Minimum Box Depth Required: 25mm •...
- Page 6 RCD05WAVN & RCD06WPVN Red Test (T) button ON/OFF Switches Blue Reset button (R) for RCD01WAVN, Status indicator shows Red Grey Reset button (R) for RCD02WPVN for ON, Green for OFF...
-
Page 7: Pack Contents
ON, Green for OFF 5. Pack Contents • 1x RCD Double socket • 2x 3.5mm diameter fixing screws, 32mm long (RCD05WAVN, RCD06WPVN) • 2x 3.5mm diameter fixing screws, 25mm long (RCD07MAVN, RCD08MPVN) • 1x Warning label • 1x Instruction manual... -
Page 8: Installation
6. Installation • The RCD should form part of a 30A ring main or terminate a spur off a 30A ring main. The cable connecting the supply to the RCD should be either: 2x 2.5mm² for the ring main or 1x 2.5mm for the spur. •... -
Page 9: Connection Diagram
RCD07MAVN & RCD08MPVN Metal Clad Back Box 6.4 Note the correct orientation of the back box (the word TOP should be the correct way up). 6.5 Lock rings, with a maximum thickness of 4.2mm and a maximum diameter of 25.7mm must be used on the inside of the back box entries to secure the gland or conduit. - Page 10 230V 50Hz Mains Supply Live Supply (Brown or Red) to Neutral Supply (Blue or Black) to Earth (Green/Yellow) to 8. General RCD Operation Note: Always test the RCD before use To Test 8.1 RESET – Press the Grey/Blue Reset button marked (R), the status indicator should show Red.
-
Page 11: Year Guarantee
020 8450 0515. Note: A proof of purchase is required in all cases. For all eligible replacements (where agreed by Timeguard) the customer is responsible for all shipping/postage charges outside of the UK. All shipping costs are to be paid in... - Page 12 If you experience problems, do not immediately return the unit to the store. Telephone the Timeguard Customer Helpline; HELPLINE 020 8450 0515 or email helpline @ timeguard.com Qualified Customer Support Co-ordinators will be on-line to assist in resolving your query.
