- Page 1 P A S S I V E I N F R A - R E D M U L T I S E N S O R S W I T C H & D E T E C T O R Cat No. SL055...

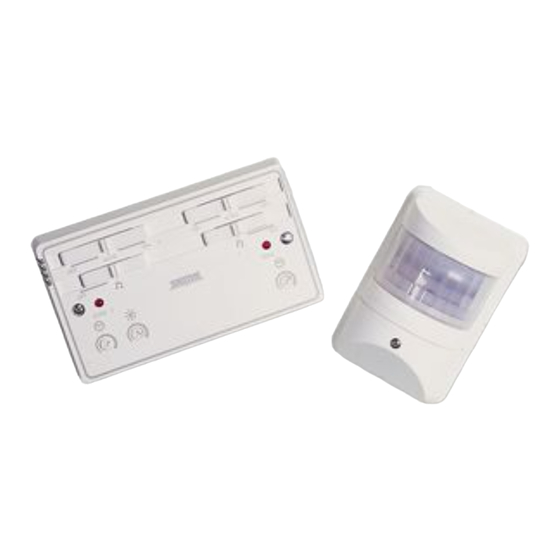

- Page 2 Operating mode Operating mode General ZONE 2 ZONE 1 selector selector CONTROLS CONTROLS A passive infra-red Multi Sensor Switch and 180° sensor-detector, providing security lighting control in either 1 or 2 zones. The wall switch is designed to be sited internally Audible Audible on new or existing installations and operates in conjunction with low-voltage SL099...
- Page 3 Audible Alarm Selector - OFF/ Light ON Time Adjuster Sets the length of time the light(s) remain on after detection by a Wall Sensor (Independent to each zone) Detector Internal buzzer alarm permanently OFF Turn adjuster arrow anti-clockwise for minimum on time. The internal buzzer alarm will sound for approx.
-
Page 4: Wall Mounting
Installing the Multi Sensor Switch Wiring Wall Mounting INSTALLATION SHOULD BE CARRIED OUT BY A COMPETENT DIY PERSON. IF IN DOUBT CONSULT A QUALIFIED ELECTRICIAN. The Multi Sensor Switch is for internal siting only and can be either flush mounted or surface mounted onto an interior wall. THE MAINS SUPPLY TO THE UNIT SHOULD BE FUSED AT: 3 AMPS - Light loads up to 500W... - Page 5 Installing the Wall Sensor Detector Wiring A maximum of 8 detectors – 4 each zone can be installed using low voltage 2 All Wall Sensor Detectors should be wired in parallel back to the Multi Sensor core cable (bell wire). Switch terminals zone 1 and 2 (refer to Multi Sensor Switch cable plan).
-
Page 6: Specifications
• False alarms may occur (see siting). Walk Testing • The Sensor detector is more sensitive to movement across the detector Before commencing the walk test turn the Light level adjuster on the Multi rather than directly towards or away from it. Sensor Switch to the day and night setting and both zone 1 and 2 light •... - Page 7 HELPLINE 020-8450-0515 For a product brochure please contact: Timeguard Ltd. Victory Park, 400 Edgware Road, London NW2 6ND Tel: 020-8452-1112 or email csc@timeguard.com Designed and manufactured in the U.K. 67-057-45 [2]...
