Summary of Contents for Timeguard Weathersafe Extreme WXT201N

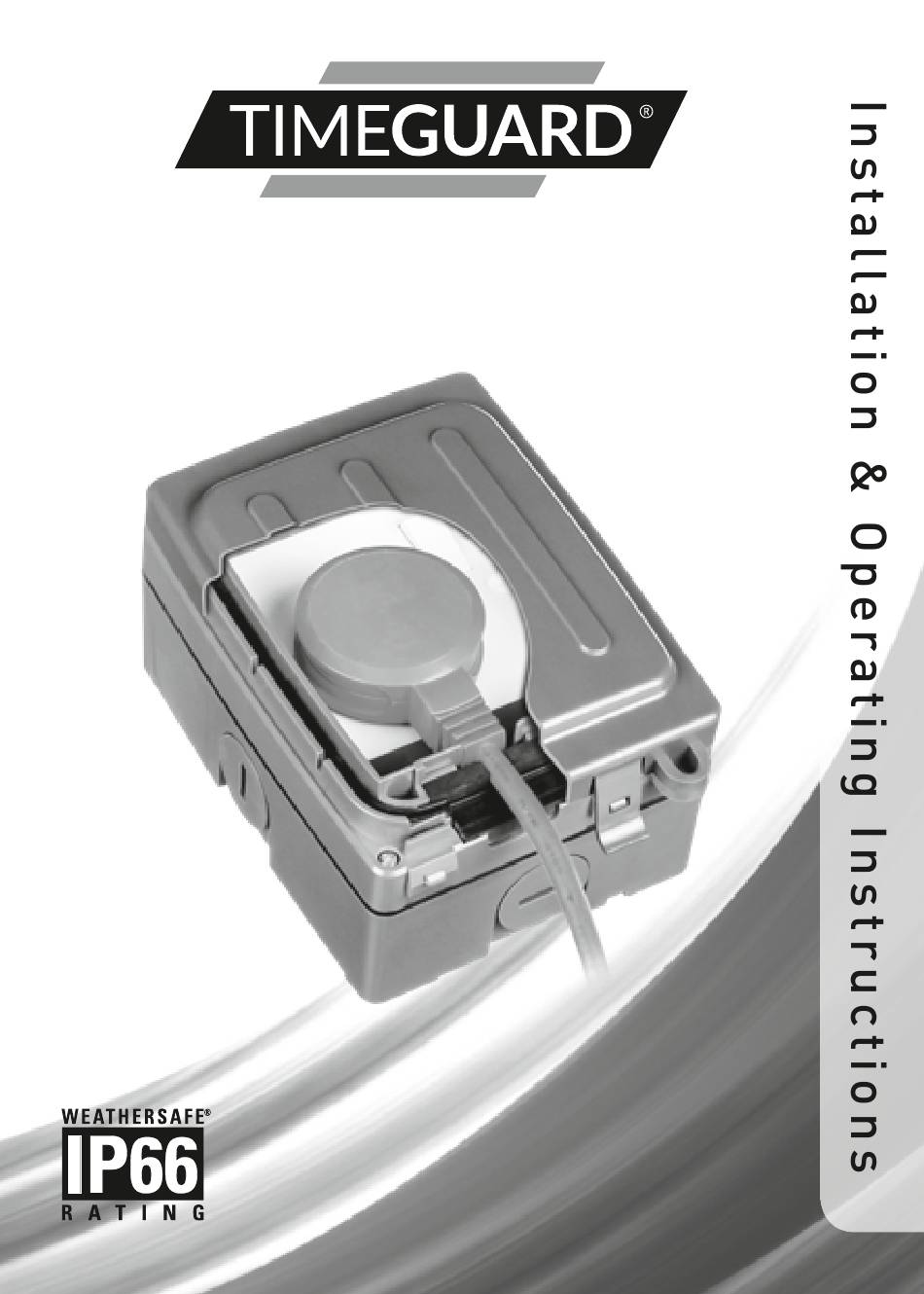

  • Page 1 Weathersafe Extreme...
  • Page 2: General Information

    IP66 Products covered by these instructions WXT201N Twin Gang Socket Switched 13A WXT104NP Single Gang RCD Fused Spur 13A WXT204NP Twin Gang RCD Socket Switched 13A (Passive/Latching) WXT205NP Twin Gang RCD Socket Switched 13A (Active/Non-Latching) WXT103N Single Gang Switched Fused Spur 13A – with Neon 1.
  • Page 3: Technical Specifications

    • Check that the total load on the circuit including when this switch, socket, spur or bell push unit is fitted does not exceed the rating of the circuit cable, fuse or circuit breaker. • Electricity can be dangerous; the use of an RCD should not be regarded as a substitute for basic electrical safety precautions.
  • Page 4 Sockets (WXT101N & WXT201N) • Individual power ‘ON’ Neon Indicators • Lockable cover facility • Operating temperature range: -5° to 55°C • Complies with: BS1363 RCD’S (WXT104NP, WXT204NP, WXT205NP) • Lockable cover facility • Rated trip current: 30mA • RCD Type: Double pole, suitable for 2 and 3 wire applications •...
  • Page 5: Installation

    4. WXT101N, WXT201N & WXT103N Installation 1. IMPORTANT Switch off the electricity at the fuse box by removing the relevant fuse or switching off the circuit breaker before proceeding with the installation. 2. Using a Philips screwdriver, separate the faceplate from the back box by removing the four tapped screws located in each corner.
  • Page 6 3. Using the back plate as a template mark the position for the holes. Note the back plate must be mounted in the correct orientation, following the ‘TOP’ marking inside the back plate. If the mounting position desired is uneven use a sheet of marine ply as a base plate and fit the back box.
  • Page 7 6. Select the required entry point by unscrewing the appropriate seal located on all four sides of the back box. If conduit is not going to be used, a waterproof cable with suitable IP rated 20mm cable glands to maintain the overall IP rating. If the bottom entry conduit is used, there must be adequate drainage from the lowest point of the conduit.
  • Page 8 4.1 WXT101N, WXT201N & WXT103N Wiring Diagrams Figure 4 WXT101N 230V 50Hz AC Mains Supply Earth Mains Neutral Supply Earth 230V 50Hz AC Mains Supply Mains Neutral Supply Figure 5 WXT201N...
  • Page 9 Figure 6 WXT103N Earth Earth Live Neutral Supply Out Supply Out 230V 50Hz AC Mains Neutral Mains Supply Supply...
  • Page 10 5. WXT104NP, WXT204NP, WXT205NP Installation 1. IMPORTANT Switch off the electricity at the fuse box by removing the relevant fuse or switching off the circuit breaker before proceeding with the installation. 2. Using a Philips screwdriver, separate the faceplate from the back box by removing the four tapped screws located in each corner.
  • Page 11 Status indicator Test button (T) shows Red for ON, Green for OFF Figure 8 WXT104NP RCD16ML 30mA 1 n DP Flag above Reset R Front Plate Red:ON Black:OFF ALWAYS TEST BEFORE USE Press Test T, flag should disappear. Reset button (R) If not, do not use.
  • Page 12 8. Secure the back box to the wall using suitable screws for the rawl plugs installed. Ensure that the back box is correctly orientated following the ‘TOP’ marking which is labelled inside. 9. Pass though the 230V AC 50Hz mains supply cable and secure the cables tightly to their respective terminals ensuring that all bare conductors are sleeved and that correct polarity is observed, see figure 9 and 10 for the appropriate wiring diagram for your...
  • Page 13 Figure 10 This diagram WXT204NP applies to both WXT204NP & WXT205NP Mains Neutral Supply 230V 50Hz AC Mains Supply Earth 5.2 WXT104NP, WXT204NP and WXT205NP Testing & Usage To test: Ensure supply is connected RESET – press the grey (blue for WXT205NP) button marked Reset (R), the status indicator should show red.
  • Page 14: Year Guarantee

    020 8450 0515. Note: A proof of purchase is required in all cases. For all eligible replacements (where agreed by Timeguard) the customer is responsible for all shipping/postage charges outside of the UK. All shipping costs are to be paid in advance before a replacement...
  • Page 16 If you experience problems, do not immediately return the unit to the store. Telephone the Timeguard Customer Helpline; HELPLINE 020 8450 0515 or email helpline @ timeguard.com Qualified Customer Support Co-ordinators will be on-line to assist in resolving your query.
