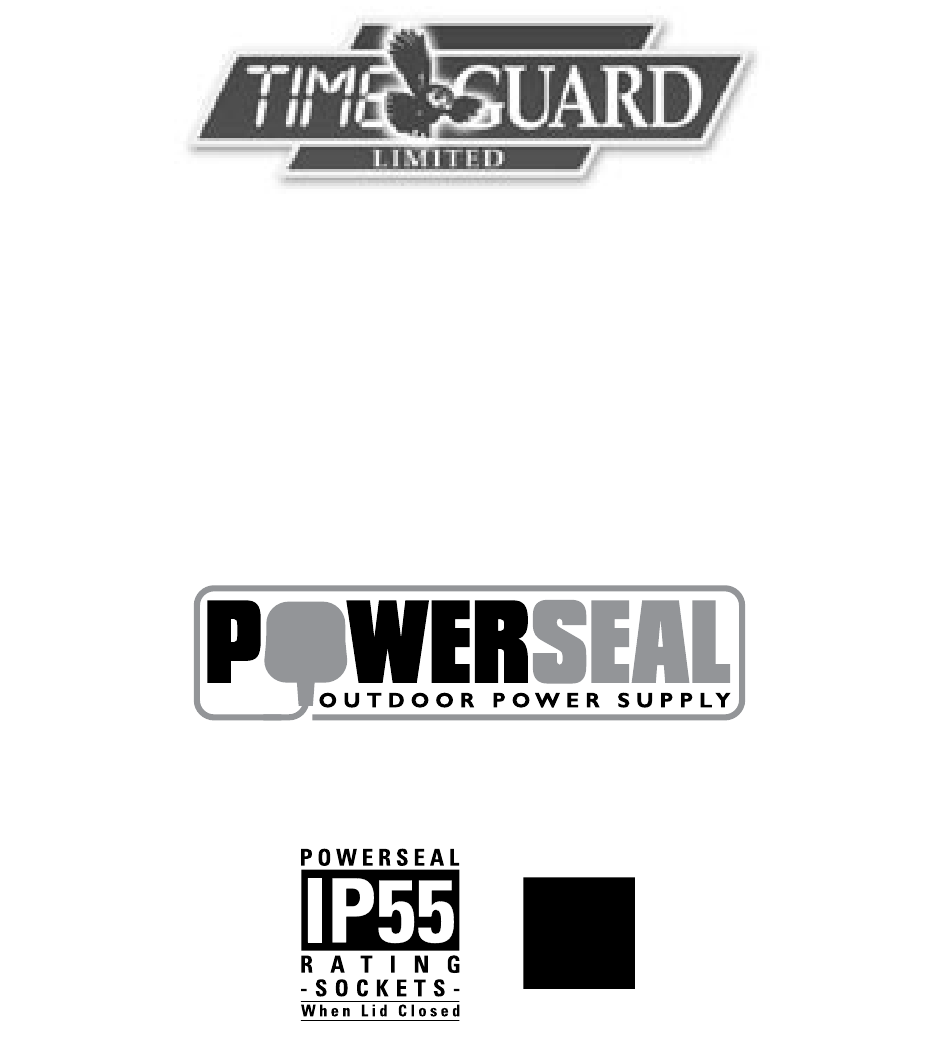

- Page 1 TPS204 InstructIons O N E Y E A R T W O Y E A R THREE YEAR F I V E Y E A R GUARANTEE GUARANTEE GUARANTEE GUARANTEE...
- Page 2 Introduction PowerSeal products are a cost effective range of switches and socket outlets designed for external use with the necessary IP (water and dust protection) rating established by an independent test authority. The socket outlet cannot be used while it is raining since there is no protection while a plug is in the socket but users would not be operating most commonly available DIY and...
- Page 3 The RCD is a non latching version. If set, it allows the contacts to open if the mains supply is interrupted, a safety must for applications such as gardening and power tools. The RCD unit fully complies with BS7288 and the socket outlet to BS1363.
- Page 4 1 TPS204 RCD Protected Socket Outlet Special IP55 Easy lift IP55 weatherproof spring back weatherproof seal lid covers rating Suitable for 8 x 20mm Tough, durable all BS 13 knockout impact resistant amp plugs cable entries housing...
- Page 5 Double Gang Back Box (TPS204) 4 fixing holes 2 x Earth 8 x 20mm conduit knockouts terminals 4 x drain hole cut Cut to size outs (if required) blind grommets Contents TPS204 front assembly. Warning label. TPS204 back box. 4 x screws with TPS204 gasket.
-
Page 6: Installation
In all cases if there is a doubt as to how to proceed with an installation consult a qualified electrician, your Local Authority’s Building Control Department or the Timeguard Helpline (020 8450 0515). 2.1 Cable Entry Try to avoid siting the units in areas where there is direct sunlight for any length of time. -
Page 7: Connecting Cables
(including the rear) or the IP rating may be severely prejudiced. The blind grommets should be pierced centrally to give an undersize hole of a similar shape to the cable cross section. 2.2 Fixing Back Box Drill 4 holes according to the dimensions given on the rear of the back box. - Page 8 Connect incoming earth to socket earth terminal Connect incoming (and outgoing) live to live terminal on RCD casing Connect incoming (and outgoing) neutral to neutral terminal on RCD casing Connect socket terminal earth to earth terminal in back case if required.
-
Page 9: Specifications
3 Specifications Current rating: 13A to BS1363 Voltage: 220-240V, 50HZ AC Rated trip current: 30mA Trip speed: Less than 40ms at 150mA residual current RCD type: Double pole, Suitable for 2 and 3 wire appliances Breaking capacity: 250A (Earth leakage) Through fault withstand: 1500A Weatherproof rating:... -
Page 10: Operation
4 Operation Always test the RCD socket outlet before use. To test: a RESET – press the button marked R (for reset), the status indicator should show red, showing the socket outlet is live. b TEST – press the red button marked T (for test), status indicator should show black. - Page 11 5 Safety Issues to Remember Electricity can be dangerous. Use of an RCD socket outlet should not be regarded as a substitute for basic electrical safety procedures. Always test the rcd socket outlet before use. If the test procedure is not completed satisfactorily, or an appliance continually trips, unplug the appliance and seek professional advice.
- Page 12 For years 2 and 3 or any difficulty in the first year 020 8450 0515. telephone the helpline on For a product brochure please contact: Timeguard Ltd. Victory Park, 400 Edgware Road, London NW2 6ND Tel: 020-8452-1112 or email csc@timeguard.com Group company...
