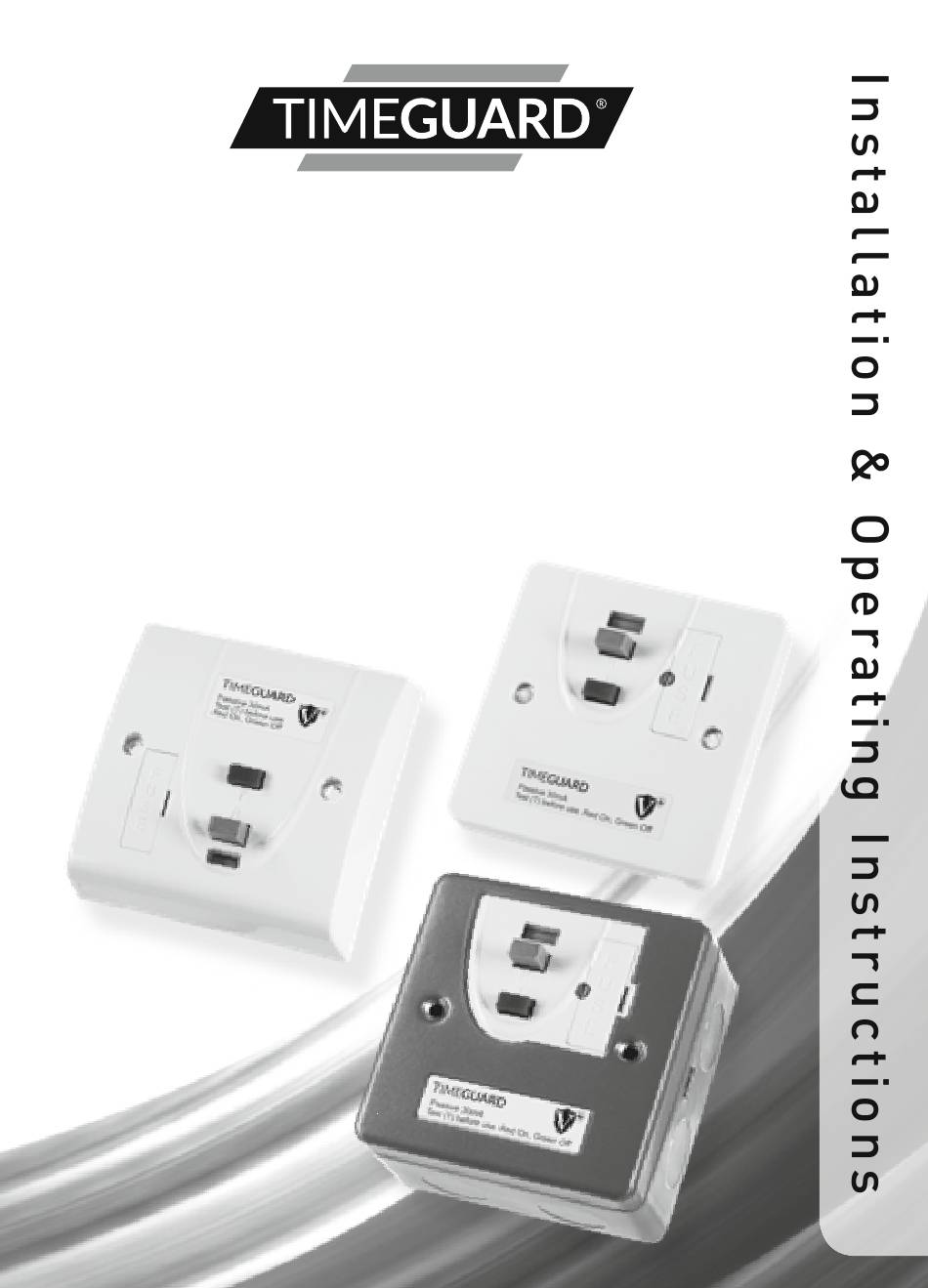

- Page 1 RCD Fused Connection Unit RCD10WPVN RCD White Fused Connection Unit – Passive RCD11WPVN RCD White Fused Connection Unit – Passive RCD16MLN RCD Metal Fused Connection Unit – Passive...
-
Page 2: General Information
1. General Information These instructions should be read carefully and retained for further reference and maintenance. The Timeguard range of RCDs, provide protection against fire hazard and rapid double pole disconnection from electric shock for the appliance connected to it. They fully comply with BS7288 and BS1363-4 (including updates and amendments). - Page 3 • Always test the RCD before use. If the test procedure is not completed satisfactorily or an appliance continues to trip the RCD seek professional advice and switch off the appliance. • To clean use a dry cloth only. Do NOT use any liquid cleaners. •...
-
Page 4: Technical Specifications
4. Technical Specifications General RCD Specifications • Operating Voltage: 230V AC 50 Hz • Max Current: Fully complies with the current rating requited by BS1363-4 (including updates and amendments) • Rated Trip Current: 30mA • RCD Type: Double Pole, suitable for 2 and 3 wire applications •... - Page 5 Note: The RCD fused connection units are latching (passive) versions. If set, this will retain closed contacts if the mains supply is interrupted – essential for applications such as freezers. RCD10WPVN • Minimum Box Depth Required: 25mm • Dimensions (H x W x D): 85mm x 85mm x 52mm RCD11WPVN •...

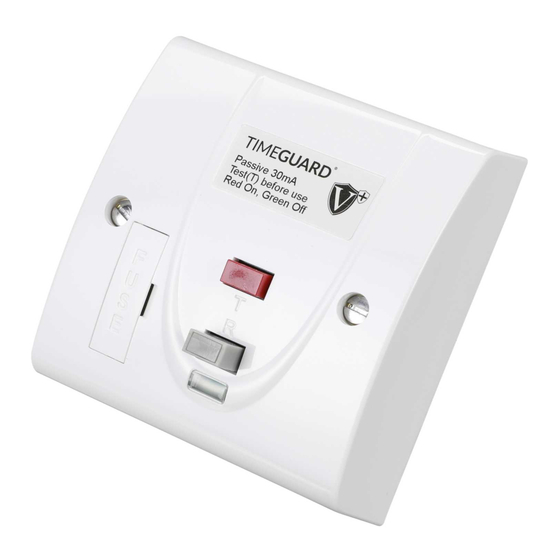

- Page 6 RCD10WPVN BS1362 Fuse holder Red Test (T) button Grey Reset button (R) Status indicator shows Red for ON, Green for OFF RCD11WPVN Status indicator shows Red for ON, BS1362 Fuse holder Green for OFF Grey Reset button (R) Red Test (T) button...
-
Page 7: Pack Contents
RCD16MLN Status indicator shows Red for ON, BS1362 Fuse holder Green for OFF Grey Reset button (R) Red Test (T) button 5. Pack Contents • 1x RCD Fused connection unit. • 2x 3.5mm diameter fixing screws. • 1x Warning label. •... -
Page 8: Installation
6. Installation • The RCD should form part of a 30A ring main or terminate a spur off a 30A ring main. The cable connecting the supply to the RCD should be either: 2x 2.5mm² for the ring main or 1x 2.5mm for the spur. •... - Page 9 3. Secure the load cable to the unit using the cable clamp and clamp screw. 6.5 Finally secure the unit to the back box with the fixing screws provided, forming the cables during installation to avoid any entrapment and cable damage. Do not over tighten.
-
Page 10: Connection Diagrams
7. Connection Diagrams RCD10WPVN The terminals are marked as follows on the rear of the unit; Neutral Load Live Supply Live Load Neutral Supply Earth Terminals Cable clamp Removable and screw blanking plate... - Page 11 RCD11WPVN The terminals are marked as follows on the rear of the unit; Neutral Supply Live Supply Earth Terminals Live Load Front cable Cable clamp Neutral Load exit cut out and screw...
- Page 12 RCD16MLN The terminals are marked as follows on the rear of the unit; Neutral Supply Live Supply Earth Terminals Live Load Neutral Load Cable clamp and screw...
- Page 13 230V 50Hz Mains Supply L IN Live Supply (Brown or Red) to N IN Neutral Supply (Blue or Black) to Earth (Green/Yellow) to Load L OUT Switch Live Supply (Brown or Red) to N OUT Neutral Load (Blue or Black) to Earth (Green/Yellow) to 8.
- Page 14 • If all the above operations work satisfactorily, the RCD is safe for use. • If the procedure is not completed satisfactorily, DO NOT use the RCD and see professional advice. • In applications such as hand driers it may not be practical to expect each user to test before use.
-
Page 15: Year Guarantee
020 8450 0515. Note: A proof of purchase is required in all cases. For all eligible replacements (where agreed by Timeguard) the customer is responsible for all shipping/postage charges outside of the UK. All shipping costs are to be paid in... - Page 16 If you experience problems, do not immediately return the unit to the store. Telephone the Timeguard Customer Helpline; HELPLINE 020 8450 0515 or email helpline @ timeguard.com Qualified Customer Support Co-ordinators will be on-line to assist in resolving your query.
