INSTALLATION OF SHELVES
SHELVES MUST BE INSTALLED BEFORE MOUNTING
THE CABINET TO A WALL AND FLOOR.

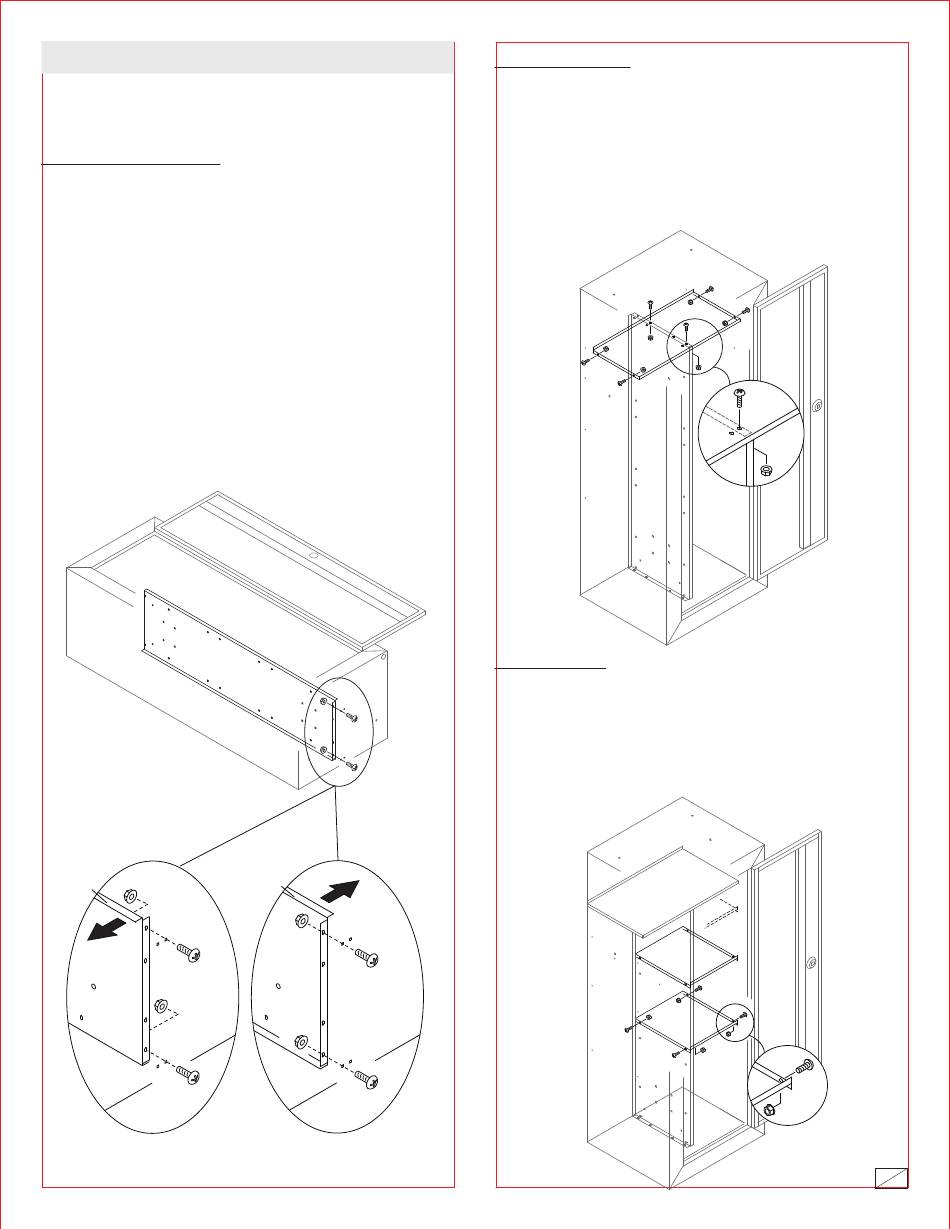

Center Partition Assembly
Lay the cabinet on its back on a protective surface.
Position the Vertical Partition carefully to align the holes on
the bottom. The Center Partition has two possible
positions. You should face the front flange towards the side
you want to mount the shelves (See illustration below).
There are also two sets of mounting holes. Line up the
bottom flange of the Center Partition so that the vertical
wall of the Partition is centered between the mounting
holes. This will ensure that the partition is in the exact
center of the cabinet, and that there is proper spacing for
the shelf installation on both sides.
Install and tighten the 2 nuts and bolts as shown.
FRONT
FLANGE
FRONT
FLANGE
Top Shelf Assembly
The top shelf has 2 sets of holes for attaching the center
partition. Use the set of holes that will allow the partition to
be centered between the 2 holes. This will ensure that
there is proper spacing for the shelf installation on both
sides. Position the shelf so the front and side flanges point
down. Assemble the top shelf to the center partition and
the sides of the cabinet using 6 nuts and bolts.
Shelf Assembly
You have the choice of 3 locations for mounting the
shelves. You also have the choice of having the front
flange of the shelf to point up or down. Select a location
and assemble each shelf to the center panel and cabinet
side using 4 nuts and bolts.
3
