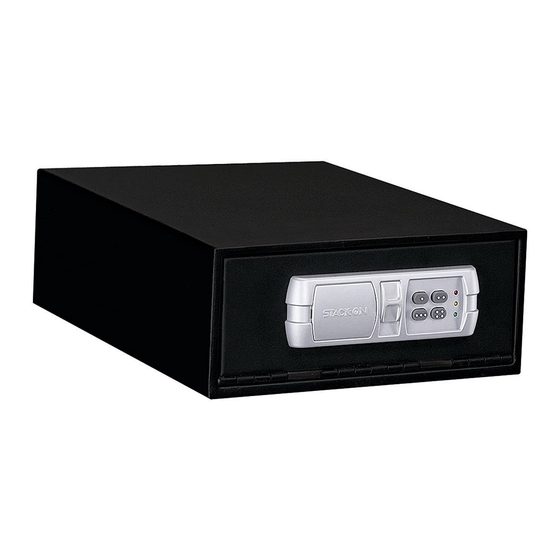

Stack-On Security Plus QAS-1304 Instructions Manual

IMPORTANT
Record the serial number from the tag located under the lock
cover plate
Record your combination number.
Keep keys and combination in a secure place away from children.
Do not store your keys or combination inside the safe.
OPENING THE SAFE WITH THE KEY
You will need to use the key to open the safe the first time in order to install the batteries. At a later
time you may need to open the safe with the key if your batteries run down or if you forget your
combination.
Remove the lock cover plate. Insert the key and turn counterclockwise. Push down the latch and
the door will spring open. (figure 1)
BATTERY INSTALLATION
When you open the safe door for the first time you will need to install the batteries.
This safe uses 4 - 1.5V,AA alkaline batteries (included). Under normal use, batteries will last about 1 year. When the batteries are low,
the red light will come on warning you that the batteries are low. To test the batteries, enter your security code. If the batteries are low the
red light will start to flash.
The battery compartment is located on the back of the door. Remove the cover and install all new batteries. NOTE: You must reprogram
your combination after you change batteries.
PROGRAMMING YOUR OWN COMBINATION
With the door open and the batteries installed you can now program your own combination. For security, you must reprogram your safe
changing the preset factory code (1-2-3-4). Write your new combination on this form and keep this form in a place separate from your safe.
Press the button through the access hole on the back of the door using a pen to press the button. The yellow light will go on and you will
have 10 seconds to enter your personal ( 3 to 8 ) digit combination. Press the button again to enter the new combination. The yellow light will
go out and your personal combination has been entered.
Close the door and push the latch up to lock the door. Enter your new combination and the green light will go on. Push the latch down to
unlock the door.
SECURITY NOTE
If the combination is entered incorrectly the yellow light will flash. If the combination is entered incorrectly (3) consecutive times the
keypad will automatically lock out for 30 seconds. If the incorrect combination is entered an additional (3) times the keypad will lock out
for (5) minutes before you can try the combination again.
TURNING THE KEYPAD SOUND OFF/ON
You can turn off or on the "Beep" sound of the keypad by pressing two buttons that are at
opposite corners from each other (1-4 or 2-3) at the same time.
SECURING THE SAFE
This safe has a mounting plate which allows you to remove the safe. First remove the
mounting plate by loosening the thumb screw from inside the safe. (figure 2)
Mount the plate in the desired location using the appropriate hardware.
Slide the safe on the mounting plate and tighten the internal thumb screw.
The safe can also be mounted permanently using the (4) top or bottom mounting holes.
Remove the top hole plugs by pushing them out from the inside of the safe. Mount the
safe through the top or bottom mounting holes using screws and washers. Use the
opposite mounting hole for screwdriver access. Reinstall the hole plugs in the top if the
safe is mounted using the bottom holes.
IMPORTANT
Keep your combination number and keys in a secure place, away from children. Keep this record of your serial number and
combination number in a secure place separate from your safe. You will need the serial number as a reference for obtaining
replacement keys.
To order a replacement key set, follow the instructions on the attached form.
R
STACK-ON PRODUCTS CO., P.O. BOX 489, WAUCONDA, IL 60084
Instructions
Serial No.
Your Combination
®
Home Security Safe
1
2
40029-0711
1 9
