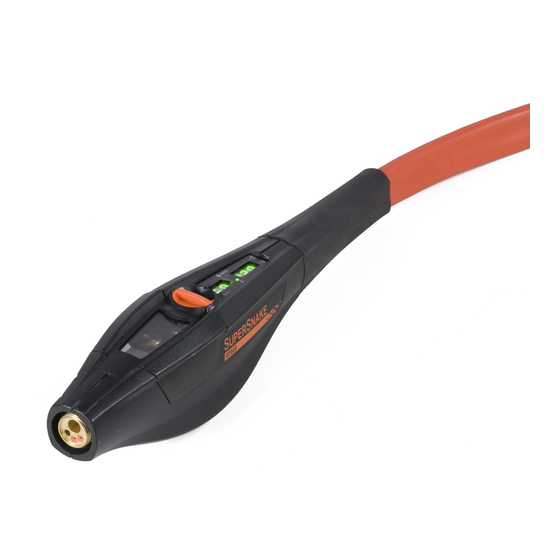

SuperSnake
GT 02S, GT 02SW
Operating manual
Bruksanvisning
Gebrauchsanweisung
Manual de instrucciones
Käyttöohje
Manuel d'utilisation
Manuale d'uso
Gebruiksaanwijzing
Brugsanvisning
Instrukcja obsługi
Инструкции по эксплуатации
Bruksanvisning
操作手册
EN
DA
DE
ES
FI
FR
IT
NL
NO
PL
RU
SV
ZH

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SuperSnake GT 02SW and is the answer not in the manual?

Questions and answers

Summary of Contents for Kemppi SuperSnake GT 02SW

  • Page 1 SuperSnake GT 02S, GT 02SW Operating manual Bruksanvisning Gebrauchsanweisung Manual de instrucciones Käyttöohje Manuel d’utilisation Manuale d’uso Gebruiksaanwijzing Brugsanvisning Instrukcja obsługi Инструкции по эксплуатации Bruksanvisning 操作手册...
  • Page 3 Operating manual english...
  • Page 4: Table Of Contents

    COntents Preface ......................General .
  • Page 5: Preface

    This operating manual contains important information on the use, maintenance and safety of your Kemppi product. The technical specifications of the device can be found at the end of the manual. Please read the manual carefully before using the equipment for the first time. For your own safety and that of your working environment, pay particular attention to the safety instructions in the manual.
  • Page 6: Installation

    installatiOn Before use The product is packed in specially designed transport cartons. However, before use always make sure the products have not been damaged during transportation. Check also that you have received the components you ordered and the instruction manuals needed, as described in the Quick start guide pack.
  • Page 7: Connecting Cables

    FastMig Pulse or Pro Evolution power source FastCool or ProCool 30 water cooler and power connection Gas supply MMA electrode holder Remote control device SuperSnake GT02SW Liquid cooled welding Gun Power cable 10. Earth return lead and clamp © Kemppi Oy / 1336...
  • Page 8: 2.3.2 Gas Cooled System

    2.3.2 gas cooled system fastmig Kms/pulse/X + mXf/mXp MXF, MXP or ProMig wire feed unit FastMig Pulse or Pro Evolution power source Gas supply MMA electrode holder Remote control device SuperSnake GT02S Air cooled welding Gun Power cable Earth return lead and clamp SuperSnake GT 02S, GT 02SW...
  • Page 9: Assembly Of Supersnake Gt02S And Gt02Sw

    Ensure that the correct filler wire support liner is fitted and installed correctly for the intended welding application. Kemppi manufacturer a range of support liners for different filler material types, including Steel wound and DL Chili. Please read the guide notes on liner selection and installation before use.
  • Page 10: Mounting And Locking Of Wire Spool

    ø, mm inlet tube wire liner Fe, Mc, Fc 0.8 – 1.2 W004083 W004214 10.5 m steel W004216 15.5 m W004217 20.5 m W004218 25.5 m 1.4 – 2.0 W006617 4308620 15.5 m 4308630 25.5 m Ss, Al (Fe, Mc, Fc) 0.8 –...
  • Page 11: Loading The Filler Wire And Automatic Feed

    This is because it is easy to over estimate the pressure required to feed these smaller filler wires. Too high feed roll pressures can easily deform filler wires and contribute to later feeding problems. © Kemppi Oy / 1336...
  • Page 12: Adjustment Of Mxf/Mxp Pressure Arms

    adjustment of mXf/mXp pressure arms Adjust the drive pressure to the filler wire with the thumb screws mounted over the pressure arms. Notice the graduated scales indicating load. The load applied should be sufficient to overcome a light braking force applied by hand to the filler wire, as it exits the welding gun contact tip.
  • Page 13: Automatic Wire Feed To Intermediate Cable And Gun

    In ProMig applications, the automatic Wire Inch function is not available. You must press NOTE! and hold the Wire Inch button or welding gun trigger, until the filler wire reaches SuperSnake. © Kemppi Oy / 1336...
  • Page 14 Tread the filler wire into the welding gun and connect to the SuperSnake. Hand tighten the gun collar. Kemppi manufacture a range of quality welding guns, low friction loss gun liners and gun NOTE! consumables, designed to compliment our welding products. Please consider these products before selecting an alternative.
  • Page 15 Water cooled SuperSnake models allow connection to the cooling fluid supply for liquid cooled guns. Snap connectors fitted at either end of SuperSnake unit are marked RED and BLUE, allowing simple, fast and convenient connection. Ensure the cooling fluid circuit is correctly connected. © Kemppi Oy / 1336...
  • Page 16 setting the shielding gas The shielding gas flow rate from the welding gun is set according to the application, weld joint, gas type and gas nozzle shape and size. The flow rate should be measured at the welding gun nozzle before welding via a Rotameter, and normally measure’s between 10 – 20 litres per minute for many welding applications.
  • Page 17: Maintenance

    Clean system with dry compressed air at least every 5 x wire spool changes. Keep sub feeder NOTE! cover open during the cleaning process. service shop maintenance Kemppi Service Workshops complete maintenance according to their Kemppi service agreement. Regular preventative maintenance by trained technicians will increase equipment life and ensure reliable operation.
  • Page 18: Disposal Of The Machine

    The owner of the equipment is obliged to deliver a decommissioned unit to a regional collection centre, per the instructions of local authorities or a Kemppi representative. By applying this European Directive you will improve the environment and human health.
  • Page 19: Technical Data

    20.5 kg 27.5 kg 34.5 kg GT02SW 14.5 kg 22 kg 29.5 kg 37 kg Operating temperature range –20 ... +40 °C Storage temperature range –40 ... +60 °C Degree of protection IP23S EMC class © Kemppi Oy / 1336...
  • Page 20 KEMPPI OY KEMPPI, TRADING (BEIJING) COMPANY LTD Tel +44 (0)845 6444201 Kempinkatu 1 Telefax +44 (0)845 6444202 Room 420, 3 Zone, Building B, PL 13 sales.uk@kemppi.com No.12 Hongda North Street, FIN-15801 LAHTI Beijing Economic Development Zone, KEMPPI FRANCE S.A.S. FINLAND 100176 BEIJING 65 Avenue de la Couronne des Prés...

This manual is also suitable for:

Supersnake gt 02s
