O W N E R ' S M A N U A L
1. Read this manual carefully before starting assembly. Read each step completely before beginning
each step.
2. Some smaller parts may be shipped inside larger parts. Check inside all parts and cartons
before assembling or ordering parts.
3. Tomake assembly of your basketball system easier, use the Hardware Identifier on page 3
and 4 to identify and sort all fasteners. Check all cartons for kits. All hardware is not
located in one kit.
4. Do not tighten hardware until instructed to do so. If hardware is tightened too soon, mounting
holes may not align and parts may not easily fit together. Leave locknuts slightly loose until you are
instructed to tighten them.
5. An electric screwdriver is helpful in assembly. However, please set at low torque and use caution
because you could overtighten the hardware and strip the screws.
6.
Save this instruction and your proof of purchase (receipt) in the event that the manufacturer
has to be contacted for replacement parts.
Please Do Not Return This Product To The Store!
Contact Escalade Sports customer service department at:
Phone:
1-888-USA-GOAL
Fax:
1-866-873-3536
E-mail:
basketball@escaladesports.com
Mailing Address:
Escalade Sports
PO Box 889
Evansville, IN 47706
Please visit our World Wide Web site at:
ON-LINE TROUBLE SHOOTING
ON-LINE PARTS REQUESTS
ADDITIONAL ESCALADE® SPORTS PRODUCT INFORMATION
Escalade® Sports products may be manufactured and/or licensed under the following patents.
6419596, 6179733, 5919102, 5071120, 4798381, 4424968, D326128
Additional patents may be pending. One or more of the listed patents and/or pending patents may cover specific product.
®
Toll
Free !
Toll
Free !
www.G oalrilla.com
TECHNICAL ASSISTANCE
FREQUENTL Y ASKED QUESTIONS
MODEL NO.
B3222W
CV60

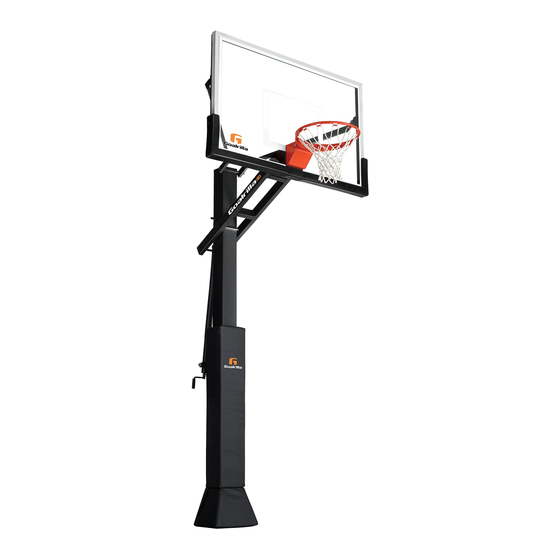

BASKETBALL SYSTEM
2L-7249-03
2018 Escalade Sports

Advertisement

loading
Need help?

Need help?

Do you have a question about the GOALRILLA CV B3222W and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ESCALADE GOALRILLA CV B3222W

Summary of Contents for ESCALADE GOALRILLA CV B3222W

  • Page 1 FREQUENTL Y ASKED QUESTIONS ADDITIONAL ESCALADE® SPORTS PRODUCT INFORMATION 2L-7249-03 Escalade® Sports products may be manufactured and/or licensed under the following patents. 6419596, 6179733, 5919102, 5071120, 4798381, 4424968, D326128 2018 Escalade Sports Additional patents may be pending. One or more of the listed patents and/or pending patents may cover specific product.

  • Page 3: Hardware Identifier

    HARDWARE IDENTIFIER 1/2” X 1-1/4” Dia. Plastic-Washer (4 Pieces) / 1 2” -13 x 1” / 1 2” Flat Washer Hex Bolt (2 Pieces) (2 Pieces) Pull Pin (1 Piece) 1/2” Split Lock Washer (2 Pieces) Hardware located in 4A-7081-00 box 1/2”-13 x 10”...
  • Page 4 HARDWARE IDENTIFIER 3/8” X 19mm Flat Washer (4 pieces) Hardware required for rim assembly 1/2”-13 x 11” 1/2”-13 x 11” 3/8” X 19mm Flat Washer Hex Bolt Hex Bolt 1/2”-13 X 1 3/4 1/2”-13 X 2 1/4 (8 pieces) (3 Piece) (3 Piece) Hex Bolt Hex Bolt...
  • Page 5 INSTALLATION TIMELINE Prior to anchor system and goal assembly, call utility services for location of underground utility lines before you dig. Vertical main post assembly is a two part process. PART 1 PART 2 Day 1. Complete Anchor System Installation Instructions. Day 5.
  • Page 6 GOALRILLA ASSEMBL Y INSTRUCTIONS (Day 5) TOOLS REQUIRED FOR THE FOLLOWING STEPS 1 - 15/16" open end wrench 1 - Level 1 - 15/16” socket and ratchet (optional) 1 - Tape Measure 1 - 9/16” Deep Well Socket & Ratchet 1 - Rubber Mallet 1 - 3/4”...
  • Page 7 NOTE: It is important for the installer to understand the NOTE: All board arms are made of rectangular tubing. necessity of the Plastic washers (#5) provided. These Tightening hardware too tight may damage tubing and washers adequately space painted parts at all pivot points. make adjustment of system difficult.
  • Page 8 Attach Upper Arms (#6L & 6R) to pole (#2), as shown in F igure 7. Using a bolt (#7), two flatwashers (#3), four plastic washers (#5) and hex nut (#4). Note: Tighten bolts snug but, do not over tighten. Board Arms must pivot freely.
  • Page 9 Locate hardware needed to mount pole to anchor bolts. You will need, eight flat washers (#37), four lock washers (#36), four hex nuts (#35) and four thread protectors (#34). NOTE: Do not remove the nuts #35 you installed in step 2 (pg. 5). PLACING THE POST ON THE ANCHOR SYSTEM REQUIRES AT LEAST FOUR CAPABLE ADULTS.
  • Page 10 Slide Actuator Handle (#42) onto shaft on the back of Actuator (#16). Line up hole in shaft with hole in Actuator Handle and insert Pull Pin (#41) to secure. Toaid in the assembly of the backboard lower the lower board arm (#11), by turning the Actuator Crank, until the lower arm makes contact with the Safety Stop.
  • Page 11 Note: If the Step Bushing (#22) and Board Bushing (#33) are not already pre-installed follow step 15 and 16. Insert a Two Way Step Bushing (#22) in to the inside of bracket on each side of the Backboard (#23) as shown in Detail A.
  • Page 12 51 51 Drain Holes must be on bottom Side *Backboard not shown for clarity. Detail C With the help of another adult attach the Cross brace (#52) with four Bolts (#50), eight Washers (#51) and four Nuts (#4) as shown in Figure 12 and Figure 12 Detail C.
  • Page 13 INSTALL RIM EXACTLY AS SHOWN. FAILURE TO DO SO COULD DAMAGE GLASS. Mount Goal Assembly (#28) to Backboard as shown in Figure 12, using four bolts (#29), washer (#26) and four nuts (#24). Tighten Note: Make sure (#27) Rim Fasteners but leave loose enough to level rim. Pad is installed between Rim (#28) and Backboard (#23) Place a level across rim assembly and adjust rim until...
  • Page 14 Two adults are recommended for this step, one to level and one to adjust the bottom #35 nuts. If further leveling is required loosen top #35 nuts but do not loosen past the top of #39 “J” Bolt. DO NOT REMOVE NUTS #35 Place a level on pole and adjust bottom nuts #35 with a 15/16”...
  • Page 15 Raise Backboard to 10 FT. regulation playing height. Measure from top of rim straight down to the playing surface. Using tape - mark the side of the steel actuator (#16) just under the plastic actuator sleeve (#15) at this 10 ft rim height.

  • Page 16: Care And Maintenance

    CARE AND MAINTENANCE BACKBOARD CARE AND MAINTENANCE Items needed to clean backboard: 100% cotton soft cloth, (only) Glass cleaner Clean backboard using only a 100% Cotton soft cloth and glass cleaner . Clean glass as you would clean household windows. Strong cleansers will damage backboard and void warranty .

  • Page 17: Limited Lifetime Warranty

    ® Subject to proper installation and normal Residential use, Escalade Sports warrants, subject to the limitations below, to the original retail purchaser all structural components of the Goalrilla™ System to be free of defects in material and workmanship for the duration of ownership by the original retail purchaser.
  • Page 18 B3222W PARTS LIST Key# Part # Description Qty . 3M-8926-00 Pole Pad -Universal 1A-7649-00 Post Assembly 2B-6093-10 1/2” Flat Washer 2B-6242-10 1/2-13 Nylon Insert Locknut (Thin) 3M-6245-01 1/2 X 1-1/4” Plastic Washer 1A-7672-01 Upper Board Arm (Right Hand) 1A-7673-01 Upper Board Arm (Left Hand) 1B-6222-10 1/2-13 X 10"...
