OWNER'S
MANUAL
STARTING SERIAL #:
L105-040037
MODEL NO.
QBT1360
QBT1360H
QBT14560
QBT17560
IMPORTANT
Read and follow all
Safety Precautions
and Instructions
before operating this
equipment.
Rev 05-040
SWISHER MOWER & MACHINE CO. INC.
1602 CORPORATE DRIVE, WARRENSBURG, MISSOURI 64093
Manufacturing quality lawn care equipment since 1945
10828

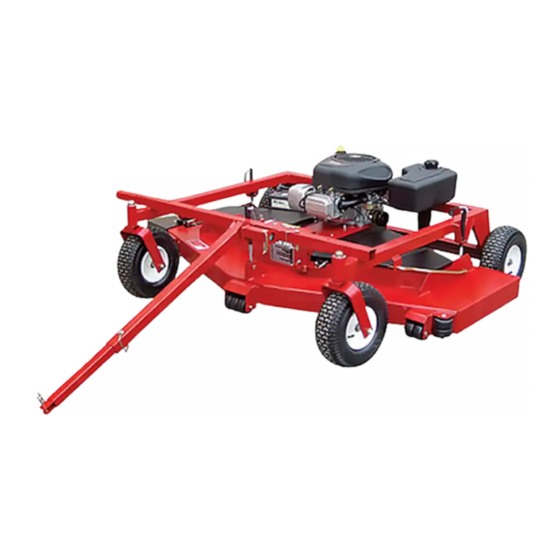

60" FINISH CUT
TRAILMOWER
Assembly
Operation
Service and Adjustment
Repair Parts
PHONE 660-747-8183 FAX 660-747-8650
Made In The
USA
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Swisher QUADBOSS QBT1360
Summary of Contents for Swisher QUADBOSS QBT1360
- Page 1 Instructions before operating this Service and Adjustment equipment. Rev 05-040 Repair Parts SWISHER MOWER & MACHINE CO. INC. Made In The 1602 CORPORATE DRIVE, WARRENSBURG, MISSOURI 64093 PHONE 660-747-8183 FAX 660-747-8650 Manufacturing quality lawn care equipment since 1945 10828...
-
Page 2: Limited Warranty
1-800-222-8183. model number, serial number, date of purchase, and the name of the authorized Swisher dealer from whom you purchased the mower will be needed before any warranty claim can be processed. -
Page 3: Safety Precautions
SAFETY PRECAUTIONS This Safety Alert Symbol indicates important messages in this manual. When you see this symbol, carefully read the message that follows and be alert to the possibility of personal injury. Read this manual completely. This machine can amputate hands, feet, and throw objects. - Page 4 • Turn off the blades when not mowing. Before leaving the machine, turn off the blades and stop the engine. • Watch for traffic when operating near or crossing roadways. • Do not operate the mower if it has been dropped or damaged in any manner or if the mower vibrates excessively.
-
Page 5: Safety Decals
SAFETY DECALS Replace decals immediately if damaged.Order by part number from Swisher Mowers OD11- No step Decal OD45- Warning Decal OD55- Triangle Danger Decal OD33- Speed Decal OD43- Flying Debris Decal OD29- Danger Decal... - Page 6 REQUIRED ASSEMBLY FRONT WHEEL CASTER ASSEMBLY 1. Remove single nut and washers from caster shaft. 2. Place one washer on the shaft of the caster/wheel sub-assembly. 3. Slide same shaft through the bearing/frame with wheel towards the ground. 4. Place the other washer on the shaft; it should be resting on the top bearing. 5.
-
Page 7: Intended Use
STARTING THE ENGINE See engine manufacturer’s instructions for the type and amount of oil and fuel used. TrailMowers with electric start engines will need a battery (sold separately). Swisher recommends using a standard “U 1 R” lawn & garden battery. -
Page 8: Starting To Mow
• Make sure the tow vehicle parking brake is set, mower is level, and blades are disengaged. • Check spark plug wire, oil, and fuel. • Check all electrical connections (See Schematics). • Make sure toggle switch is turned “ON” and the red tether is properly attached. •... -
Page 9: General Troubleshooting
ALTERNATIVE STOPPING METHOD • Bring vehicle to complete stop, shut off engine, and set parking brake. • Disengage blade engage lever (6008). • Manually shut toggle and key switches to their “OFF” positions. • Always remember to remove keys to avoid irresponsible usage. TRANSPORTING MOWER •... -
Page 10: Mower Maintenance
MOWER MAINTENANCE GENERAL RECOMMENDATIONS The warranty on this Trailmower does not cover items that have been subjected to operator abuse or negligence. To receive full value from the warranty, operator must maintain unit as instructed in this manual. Some adjustments will need to be made periodically to maintain your unit properly. All adjustments in this manual should be checked at least once each season. - Page 11 Item No. Description Part # NB149 - WASHER Swivel Hitch IF NECESSARY Frame 6014* Bearing Cotter Pin NB126 Rear Axle 6034 Height Adjustment Handle 5/16 PAL Nut NB276 Plastic Knob Crank Arm ES214 Height Indicator Decal OD41 USE PAINT CODE: TC=RED, TK=BLACK EX:6014TC FRAME DETAIL Outer Blade...
- Page 12 GAS TANK ASSEMBLY TANK ASSEMBLY / UNIT MODEL PART # POL14560B POL14560C RK1360 T13560 #6059 T13560B1 T1360T T17560 13 SEE T1360B1 DETAIL T1360H #6059H #6080 T1360K MOWER DECK DETAIL Item No. Description Part # Belt Cover 6025TK Grass Chute 6039TK Chute Bracket 6030TK Anti-Scalp Roller...
-
Page 13: Parts Not Shown
Slide plastic tube snug SEE ENGINE against toggle switch. DETAIL HEAT SHIELD 6052TK NOT USED ON HONDA UNITS DETAIL 10 MOTOR BASE DETAIL Item No. Description Part # Heat Shield 6052TK Throttle 686N Anti-Scalp Roller AS001 Toggle Switch 685SP Control Console 10737* DETAIL 10 Ignition Switch... -
Page 14: Engine Detail
ENGINE DETAIL BRIGGS / TECUMSEH > DETAIL - 1 DETAIL - 1 Item No. Description Part # UPPER SPACER 689L 5-1/2'' ENGINE PULLY 1/4/ X 1'' KEY STOCK 9031 LOWER SPACER 689S 3/8 BELLEVILLE WASHER FLAT WASHER TR150W 3/8-24 X 1BOLT [BRIGGS ] NB452N 7/16-20 X 1 BLOT [TECUMSEH ] NB238N... -
Page 15: Wiring Schematics
WIRING SCHEMATICS... -
Page 16: How To Order Repair Parts
The model number for the engine will be found on the top of the blower fan housing. QBT1360 All mower parts listed herein may be ordered directly from Swisher Mower & Machine Co. Inc. or your nearest Swisher QBT1360H dealer. All engine parts may be ordered from the nearest dealer of the...
