Summary of Contents for ECOVACS ROBOTICS WINBOT 8

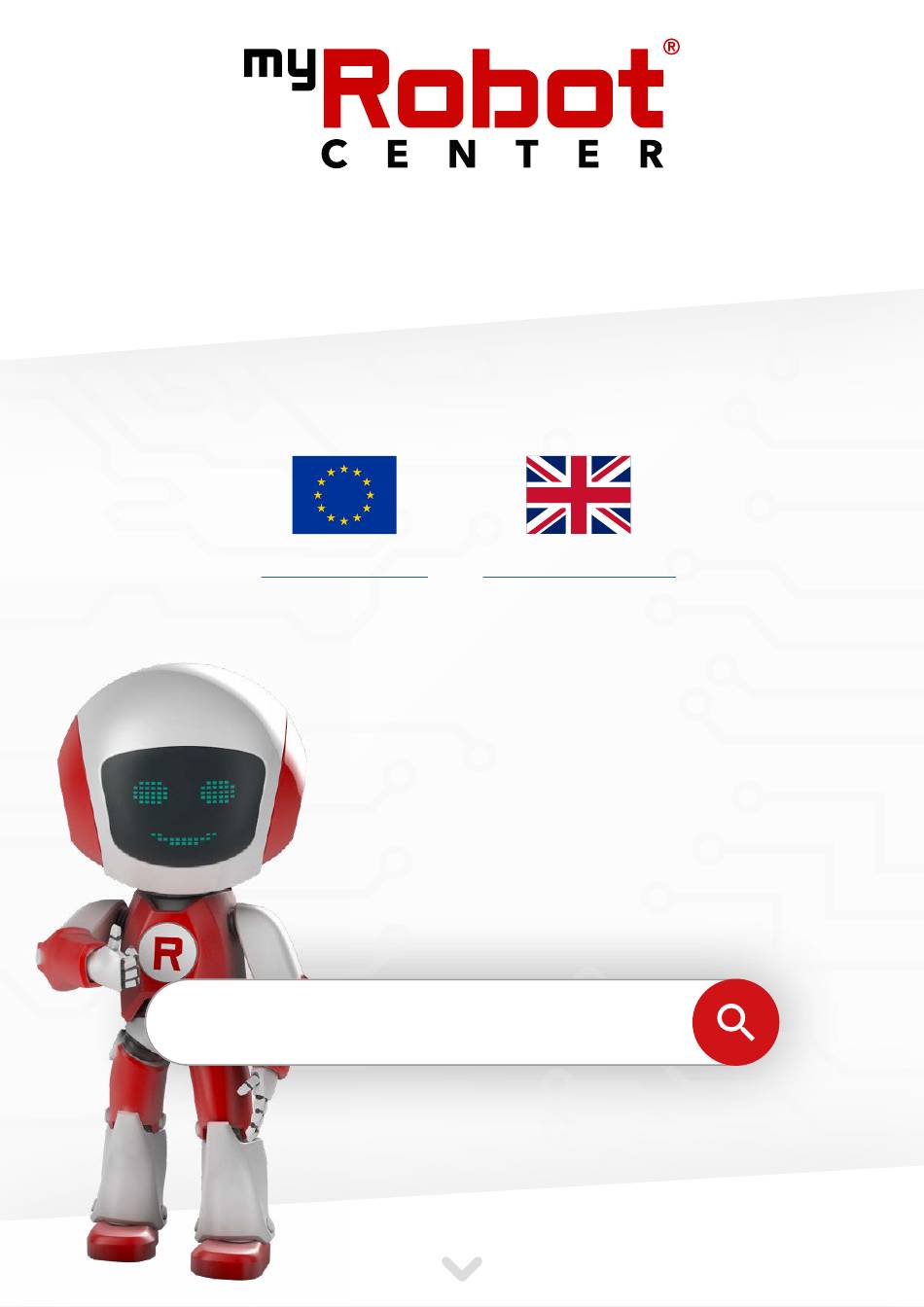

- Page 1 The expert for robots in your home With one click to the online shop myRobotcenter.eu myRobotcenter.co.uk myRobotcenter...
- Page 2 Instruction Manual Benutzerhandbuch Mode d'emploi Manuale d’Istruzione...
-
Page 3: Table Of Contents
1. Important Safety Instructions...............2 2. Package Contents and Technical Specifications........4 2.1 Package Contents..................4 2.2 Specifications....................4 2.3 Product Diagram..................5 3. Operating WINBOT 8..................6 3.1 Notes before Cleaning................6 3.2 Attach Cleaning Pad.................8 3.3 Assemble Power Adapter................8 3.4 Install Safety Tether...................8 3.5 Place Safety Pod..................10 3.6 Spray Cleaning Solution................10... -
Page 4: Important Safety Instructions
1. Important Safety Instructions When using an electrical appliance, basic precautions should always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE. SAVE THESE INSTRUCTIONS 1. This Appliance is not intended to be used by children under 8 or anyone lacking knowledge on proper use. - Page 5 1. Important Safety Instructions 24. Please dispose of used batteries according to local laws and regulations. 25. Do not incinerate the Appliance even if it is severely damaged. The battery can explode in a fire. 26. The Appliance must be used in accordance with the directions in this Instruction Manual. The company cannot be held liable or responsible for any damages or injuries caused by improper use.
-
Page 6: Package Contents And Technical Specifications
2. Package Contents and Technical Specifications 2.1 Package Contents Safety Pod and Remote Control WINBOT 8 Power Adapter Instruction Manual with Batteries Tether (3) Cleaning Pads WINBOT (1) WINBOT Finishing Cloth Cleaning Solution Extension Cord (1.5m/4’11”) 2.2 Specifications WINBOT model... -

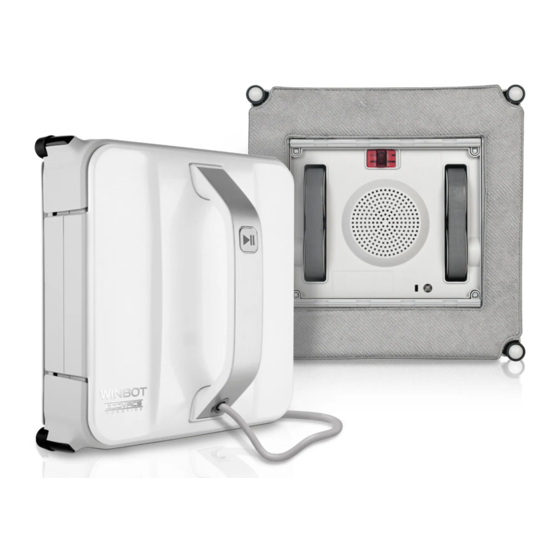

Page 7: Product Diagram
2. Package Contents and Technical Specifications 2.3 Product Diagram WINBOT 8 1. Bumper Rail 9. Squeegees 2. Speaker 10. Bottom Power Switch 3. Status Indicator Light and START/PAUSE Button 11. Driving Treads 4. Handle 12. Fan 5. Upgrade Port (for after-sale service) 13. -
Page 8: Operating Winbot 8
3. Operating WINBOT 8 3.1 Notes Before Cleaning Do not use WINBOT 8 on a framed window WINBOT 8 can clean framed or frameless with a frame smaller than 5mm (0.2”). glass, larger than 50 x 50cm (19.7’’ x 19.7’’). -
Page 9: Attach Cleaning Pad
WINBOT 8 can clean horizontally mounted glass but only when using the Direction Control Buttons on the Remote Control. WINBOT 8 can clean glass mounted at an angle but may not operate normally; in such a case, a person should be in the vicinity to assist should there be a problem. -
Page 10: Assemble Power Adapter
3. Operating WINBOT 8 3.3 Assemble the Power Adapter 3.4 Install the Safety Tether End A: WINBOT 8 Power Cord End B: Power Adapter Power Cord End C: Safety Pod End D: Safety Tether... - Page 11 * If the length of the power cord restricts WINBOT 8’s movement, a WINBOT Extension Cord can be used. Disconnect End A and End B, and connect them with both ends of the Extension Cord respectively and tighten.
-
Page 12: Place Safety Pod
Wipe the surface of the Safety Pod’s suction cup clean with the provided Finishing Cloth. If WINBOT 8 is being used to clean an inside window: Press the Safety Pod FIRMLY on the top corner of the inside window. Make sure the Safety Pod is attached securely in place. -
Page 13: Start
3. Operating WINBOT 8 3.7 Start Plug in WINBOT 8 * Do not unplug WINBOT 8 while it is cleaning. Power ON Move the Power Switch to the “ ” position. WINBOT 8 is powered ON when the Status Indicator Light flashes BLUE. -
Page 14: Pause
3. Operating WINBOT 8 Start Start WINBOT 8 using one of the methods below. Press the START/PAUSE button on WINBOT 8 or on the Remote Control to begin cleaning. WINBOT 8 automatically chooses an “N” or “Z” cleaning path. Choose your own cleaning path by pressing the “N” or “Z” Cleaning Mode Button on the Remote Control to begin cleaning. -
Page 15: Stop
Safety Pod’s removal with the provided Finishing Cloth. * If WINBOT 8 has a problem and the indicator Light flashes RED, it can be reset by pressing the RESET Button on the Remote Control. See “Troubleshooting” for details. -
Page 16: Maintenance
4. Maintenance Before performing cleaning and maintenance on WINBOT 8, Power OFF and unplug WINBOT 8 from the receptacle. 4.1 Cleaning Pad Turn WINBOT 8 over and remove the Cleaning Pad. Soak the Cleaning Pad in cool, clean water for 2 minutes. Hand wash with mild detergent and lay flat to dry. -
Page 17: Driving Treads
4. Maintenance Edge Detection Sensors Squeegees Turn WINBOT 8 over and wipe the four Edge Turn WINBOT 8 over and wipe the two Detection Sensors clean with the provided Squeegees with the provided Finishing Cloth to Finishing Cloth to maintain their effectiveness. -
Page 18: Status Indicator Light And Sounds
GREEN the Back-Up Battery is properly charged. Status Indicator Light WINBOT 8 is powered ON and ready to be placed on the glass. flashes BLUE Status Indicator Light WINBOT 8 has successfully adhered itself to the glass and is ready glows a continuous BLUE to clean. -
Page 19: Troubleshooting
Remote Control will function the Remote Control. when WINBOT 8 is paused. The Remote Control is not Power ON WINBOT 8. At the same paired with WINBOT 8. time, press and hold START/PAUSE Remote Control WINBOT 8 arrives from the... - Page 20 E. Clean the window by hand first and use WINBOT 8 for regular cleaning after that. * WINBOT 8 is intended to be used for maintenance cleaning on common windows. The product is NOT designed to replace heavy duty or first...
- Page 21 Possible Causes Solutions A. Press the RESET Button on the Remote Control. B. If WINBOT 8 does not Reset, it must be placed in Manual Override Mode. Hold the RESET Button on the Remote Control until the Status Indicator Light glows a continuous WINBOT 8 is stuck RED.
