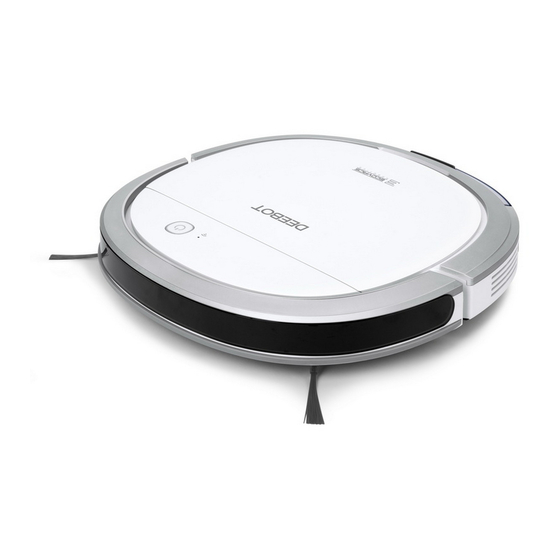

ECOVACS ROBOTICS DEEBOT OZMO Slim11 Instruction Manual
  1. Manuals
  2. Brands
  3. ECOVACS ROBOTICS Manuals
  4. Vacuum Cleaner
  5. DEEBOT OZMO Slim11
  6. Instruction manual

ECOVACS ROBOTICS DEEBOT OZMO Slim11 Instruction Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
Instruction Manual

Advertisement

loading

Related Manuals for ECOVACS ROBOTICS DEEBOT OZMO Slim11

Summary of Contents for ECOVACS ROBOTICS DEEBOT OZMO Slim11

  • Page 1 Instruction Manual...
  • Page 2 Congratulations on the purchase of your ECOVACS ROBOTICS DEEBOT! We hope it brings you many years of satisfaction. We believe that your new robot will help keep your home clean and give you more quality time to do other things.

  • Page 3: Table Of Contents

    Contents 1. Important Safety Instructions ............................4 2. Package Contents ................................8 3. Operating and Programming ............................11 4. Maintenance ..................................17 5. Alarm Sounds ..................................22 6. Troubleshooting ................................23 7. Technical Specifications ..............................24...

  • Page 4: Important Safety Instructions

    1. Important Safety Instructions IMPORTANT SAFETY INSTRUCTIONS 3. If there is a drop off in the cleaning area due to a step or stairs, you should operate the Appliance When using an electrical Appliance, basic to ensure that it can detect the step without precautions should always be followed, including falling over the edge.
  • Page 5 1. Important Safety Instructions 9. Do not operate the Appliance in an area where 17. Do not put objects into the suction intake. Do there are lit candles or fragile objects. not use if the suction intake is blocked. Keep the 10.
  • Page 6 1. Important Safety Instructions 22. Turn OFF the power switch before cleaning or by improper use. maintaining the Appliance. 30. The robot contains batteries that are only 23. The plug must be removed from the receptacle replaceable by skilled persons. To replace the before cleaning or maintaining the Docking robot’s battery, please contact Customer Service.
  • Page 7 1. Important Safety Instructions 37. Exhausted batteries are to be removed from the Class II Appliance and safely disposed of. Short-circuit-proof safety isolating 38. If the Remote Control is to be stored unused for transformer a long period, the batteries should be removed. 39.

  • Page 8: Package Contents

    2. Package Contents 2.1 Package Contents Remote Control with (4) Side Brushes Robot Docking Station batteries Washable/Reusable Sponge Filter and High- Instruction Manual+ Cleaning Cloth Plate Microfiber Cleaning Cloth efficiency Filter Quick Start Guide Note: Figures and illustrations are for reference only and may differ from actual product appearance. Product design and specifications are subject to changes without notice.
  • Page 9 2. Package Contents 2.3 Product Diagram Robot Bottom View Anti-Drop Sensors AUTO Mode Side Brushes Button Wi-Fi Indicator Direct Suction Option Driving Wheel Anti-Collision Sensors and Bumper Reservoir Charging Contacts Universal Wheel RESET Button Power Switch Multi-function Cleaning Tool Dust Bin...
  • Page 10 2. Package Contents Docking Station Remote Control Infrared Signal Generator Direction Control Buttons START/PAUSE Button Docking Station Pins Return to Charger Mode Button Edge Cleaning Mode Button Advanced Mopping System Spot Cleaning Mode Button Water Inlet Reservoir Cleaning Cloth Plate Washable/Reusable Microfiber Cleaning Cloth...

  • Page 11: Operating And Programming

    3. Operating and Programming 3.1 Notes Before Cleaning WARNING: Do not use DEEBOT on wet surfaces or surfaces with standing water. Before using the product on a rug with tasseled edges, please fold the Tidy up the area to be cleaned by putting furniture, such as chairs, in rug edges under.
  • Page 12 3. Operating and Programming 3.2 Preparation Remove Protection Film Docking Station Placement Remove Protection Strip Install Side Brushes Power ON Charge DEEBOT When DEEBOT completes the Note: cleaning cycle or when battery power gets low, DEEBOT automatically returns to the Docking Station to recharge itself.
  • Page 13 3. Operating and Programming 3.3 Selecting Cleaning Mode AUTO Cleaning Mode Edge Cleaning Mode Spot Cleaning Mode...
  • Page 14 3. Operating and Programming All the functions mentioned above can be enabled on the App. Return to Docking Station Download ECOVACS HOME to access more features, including MAX Mode, Scheduled Cleaning, etc. ECOVACS HOME iOS 9.0 or later Android 4.0 or later...
  • Page 15 3. Operating and Programming 3.4 Pause, Wake Up, Power Off Pause Wake Up Note: The robot’s Control Panel stops glowing after the robot is paused Press the AUTO button on DEEBOT to wake it up for a few minutes. Press the AUTO Mode Button on DEEBOT to wake up the robot.
  • Page 16 3. Operating and Programming 3.5 Optional Mopping System Note: Empty the Reservoir and remove the Cleaning Cloth Plate before cleaning on carpet. When using the mopping system, fold area rug edges under themselves so DEEBOT will avoid the rug. Note: After DEEBOT finishes mopping, empty any remaining water from the Reservoir.

  • Page 17: Maintenance

    4. Maintenance Before performing cleaning and maintenance tasks on DEEBOT, turn the robot OFF and unplug the Docking Station. 4.1 Optional Mopping System...
  • Page 18 4. Maintenance 4.2 Dust Bin and Filters Dust Bin High Efficiency Filter Filter Net Sponge Filter...
  • Page 19 4. Maintenance 4.3 Direct Suction Option and Side Brushes Note: A Multi-Function Cleaning Tool is provided for easy maintenance. Handle with care, this cleaning tool has sharp edges. Direct Suction Option Side Brushes...
  • Page 20 4. Maintenance 4.4 Other Components Note: Before cleaning the robot’s Charging Contacts and Docking Station Pins, turn the robot OFF and unplug the Docking Station.
  • Page 21 4. Maintenance 4.5 Regular Maintenance To keep DEEBOT running at peak performance, perform maintenance tasks and replace parts with the following frequencies: Robot Part Maintenance Frequency Replacement Frequency Cleaning Cloth After each use Every 50 washings Side Brush Once every 2 weeks Every 3-6 months Sponge Filter/ High Efficiency Filter Once per week...

  • Page 22: Alarm Sounds

    5. Alarm Sounds DEEBOT will tell you something is wrong with an alarm indicator light and sounds. More detailed support is available through the ECOVACS HOME and online website. Indicator Lights Scenario Indicator Light The robot is cleaning AUTO Mode Button glows a solid WHITE The robot is charging AUTO Mode Button flashes WHITE The robot has low battery...

  • Page 23: Troubleshooting

    6. Troubleshooting Malfunction Possible Causes Solutions DEEBOT is not switched ON. Switch ON DEEBOT. DEEBOT has not connected to the Docking Be sure that the robot’s Charging Contacts have Station. connected to the Docking Station Pins. DEEBOT is not charging. Re-activate the battery.
  • Page 24 6. Troubleshooting Malfunction Possible Causes Solutions Program DEEBOT to clean at specific times using the Time Scheduling function is cancelled. ECOVACS HOME. DEEBOT is switched OFF. Switch ON DEEBOT. Keep DEEBOT switched ON and connected to the The robot’s battery is low. Docking Station to make sure it has a full battery to work DEEBOT does not clean at any time.
  • Page 25 6. Troubleshooting Malfunction Possible Causes Solutions Incorrect home Wi-Fi username or password Enter the correct home Wi-Fi username and password. entered. DEEBOT is not within range of your home Make sure DEEBOT is within range of your home Wi-Fi Wi-Fi signal. signal.

  • Page 26: Technical Specifications

    7. Technical Specifications Model DK3G.10 Working voltage 14.4V DC Docking Station Model CH1630A 100-240 V AC, 50-60 Hz, Rated Input Rated Output 20 V AC, 0.8 A 25 W Remote Control Model RC1633 Working Voltage 3 V DC Remote Control Battery Type Nominal Voltage 1.5 V DC Frequency Bands...
