- Page 1 Smart Control Kit Installation Guide Installation requires no special tools—you’ll just need a screwdriver, stepladder and smartphone! Model V2 adhguardianusa.com 1-424-272-6998...
- Page 2 Thank you for purchasing the beam Smart Control Kit! Please read and follow all installation instructions. Homeowners should retain this guide for reference. TIP: If you are a professional installer, setup within the beam Home app should be done using the homeowner’s smartphone. ______________________ Date Installed: Controller...
- Page 3 Download the app & begin setup • While inside your home, download the “beam Home” app from the App Store (iOS) or Google Play (Android). • Open the app, and select “Setup Your beam.” • Follow prompts within the app to verify the WiFi network you’d like your controller to connect to, and enter your network password.
-
Page 4: Power Up The Controller
Power up the controller • Locate the controller and power adapter . Plug the adapter into the DC IN port on the controller and a nearby power source. • The controller’s WiFi status light will blink orange to indicate it’s ready for setup. -
Page 5: Program The Controller
Program the controller • Follow prompts within the app, and when directed, press your phone screen tightly against the bottom setup port. TIP: It may be helpful to dim the lights or cup your hand over your phone during programming to minimize light interference. •... - Page 6 Scan the wireless door sensor code • Locate the wireless door sensor and follow prompts within the app to scan the code (found on the back of the sensor). • Enter a name to identify your door. • Unplug the controller and head out to the garage!
- Page 7 Mount the wireless door sensor • Clean and wipe dry an area at the top of your garage door’s interior panel. • Remove the battery tab from the back of the wireless door sensor and mount to the cleaned area of the garage door using the adhesive Velcro strip.
-
Page 8: Mount The Controller

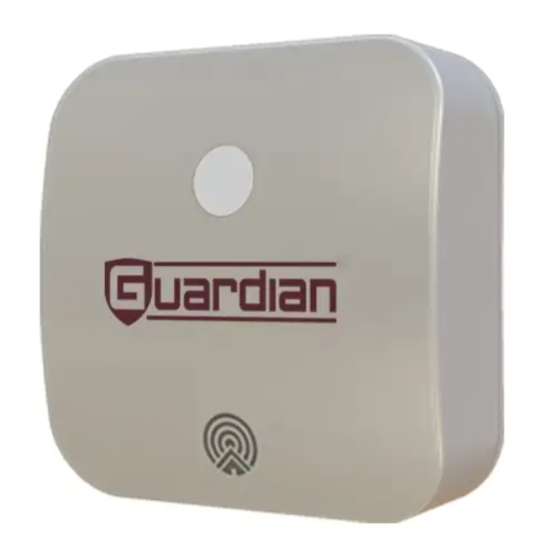

Mount the controller • Locate the controller and power adapter , and grab your stepladder. • Clean and wipe dry your selected mounting location, either on the garage door opener or a nearby surface. Mount using the adhesive strip on the back of the controller. TIP: The controller should be mounted within 3 feet of the garage door opener and within 6 feet of a power source. - Page 9 Connect the opener cable to the controller • Locate the opener cable • Plug the black connector into the opener port on the top side of the controller. WiFi Status Opener Port Power Indicator DC IN Port...
- Page 10 TIP: View sample connection diagrams for other garage door opener makes and models at: adhguardianusa.com/install-beam Sample diagram of Guardian terminals PUSH BUTTON PUSH BUTTON PUSH BUTTON PUSH BUTTON...
- Page 11 Power up the controller & opener • Plug the power adapter into the DC IN port on the controller and a nearby power source. • Plug your garage door opener back in. All done!
- Page 12 • Do not use this device on garage door openers made before 1993 without a working photo-eye safety system. ©2019, ADH Guardian USA LLC. Amazon, Alexa and all related logos are trademarks of Amazon.com, Inc. or its affiliates. Guardian Access & Door Hardware...
- Page 13 FCC Statement： Any Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference,and (2) this device must accept any interference received, including interference that may cause undesired operation.
