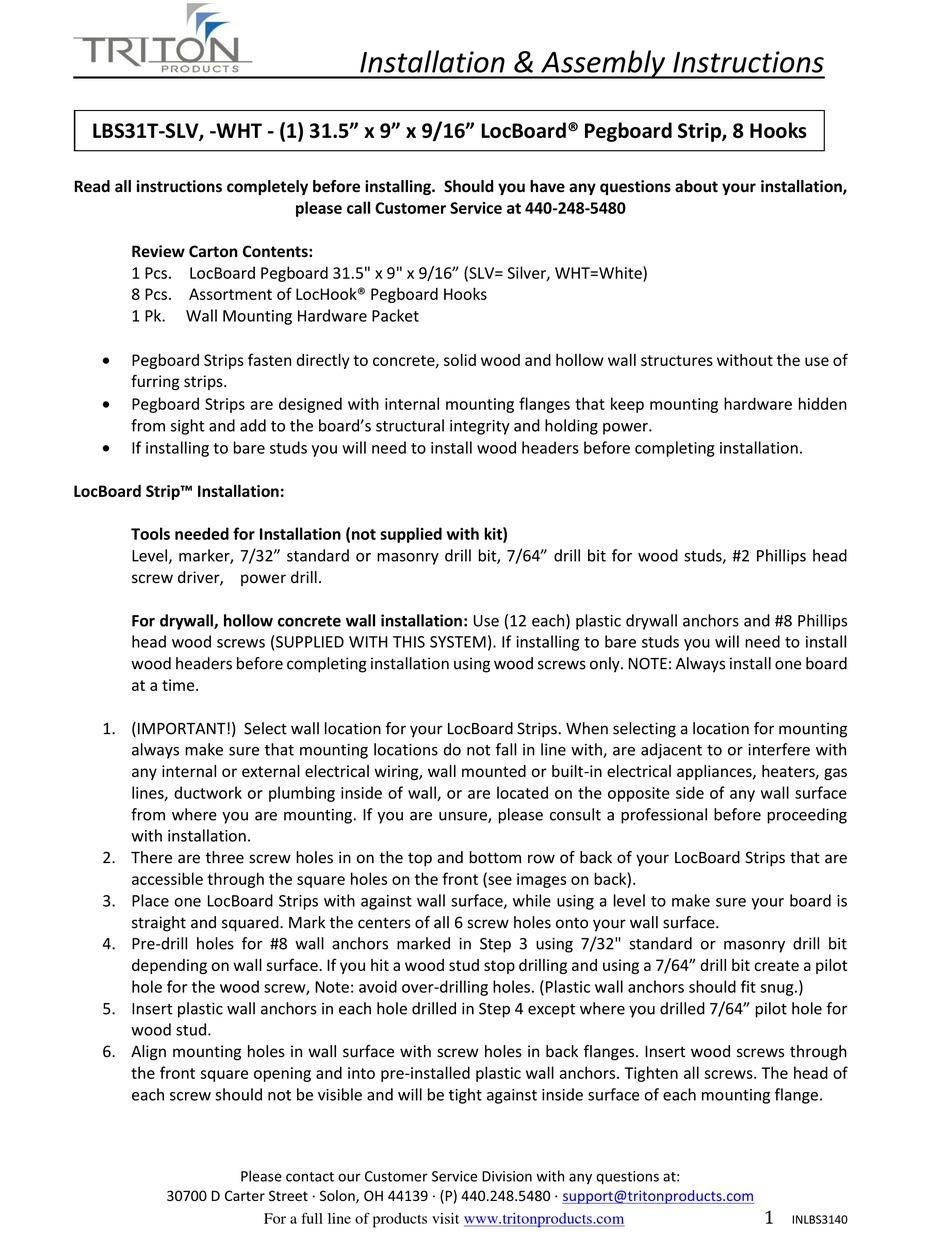

Triton LocBoard LBS31T-SLV-1 Installation & Assembly Instructions

LBS31T-SLV, -WHT - (1) 31.5" x 9" x 9/16" LocBoard® Pegboard Strip, 8 Hooks
Read all instructions completely before installing. Should you have any questions about your installation,

Review Carton Contents:

1 Pcs. LocBoard Pegboard 31.5" x 9" x 9/16" (SLV= Silver, WHT=White)
8 Pcs. Assortment of LocHook® Pegboard Hooks
1 Pk. Wall Mounting Hardware Packet

Pegboard Strips fasten directly to concrete, solid wood and hollow wall structures without the use of
furring strips.

Pegboard Strips are designed with internal mounting flanges that keep mounting hardware hidden
from sight and add to the board's structural integrity and holding power.

If installing to bare studs you will need to install wood headers before completing installation.
LocBoard Strip™ Installation:
Tools needed for Installation (not supplied with kit)
Level, marker, 7/32" standard or masonry drill bit, 7/64" drill bit for wood studs, #2 Phillips head
screw driver, power drill.
For drywall, hollow concrete wall installation: Use (12 each) plastic drywall anchors and #8 Phillips
head wood screws (SUPPLIED WITH THIS SYSTEM). If installing to bare studs you will need to install
wood headers before completing installation using wood screws only. NOTE: Always install one board
at a time.
1. (IMPORTANT!) Select wall location for your LocBoard Strips. When selecting a location for mounting
always make sure that mounting locations do not fall in line with, are adjacent to or interfere with
any internal or external electrical wiring, wall mounted or built-in electrical appliances, heaters, gas
lines, ductwork or plumbing inside of wall, or are located on the opposite side of any wall surface
from where you are mounting. If you are unsure, please consult a professional before proceeding
with installation.
2. There are three screw holes in on the top and bottom row of back of your LocBoard Strips that are
accessible through the square holes on the front (see images on back).
3. Place one LocBoard Strips with against wall surface, while using a level to make sure your board is
straight and squared. Mark the centers of all 6 screw holes onto your wall surface.
4. Pre-drill holes for #8 wall anchors marked in Step 3 using 7/32" standard or masonry drill bit
depending on wall surface. If you hit a wood stud stop drilling and using a 7/64" drill bit create a pilot
hole for the wood screw, Note: avoid over-drilling holes. (Plastic wall anchors should fit snug.)
5. Insert plastic wall anchors in each hole drilled in Step 4 except where you drilled 7/64" pilot hole for
wood stud.
6. Align mounting holes in wall surface with screw holes in back flanges. Insert wood screws through
the front square opening and into pre-installed plastic wall anchors. Tighten all screws. The head of
each screw should not be visible and will be tight against inside surface of each mounting flange.
Please contact our Customer Service Division with any questions at:
30700 D Carter Street ∙ Solon, OH 44139 ∙ (P) 440.248.5480 ∙
Installation & Assembly Instructions
please call Customer Service at 440-248-5480
For a full line of products visit
support@tritonproducts.com
www.tritonproducts.com
1
INLBS3140
