MultiStand
MSA200

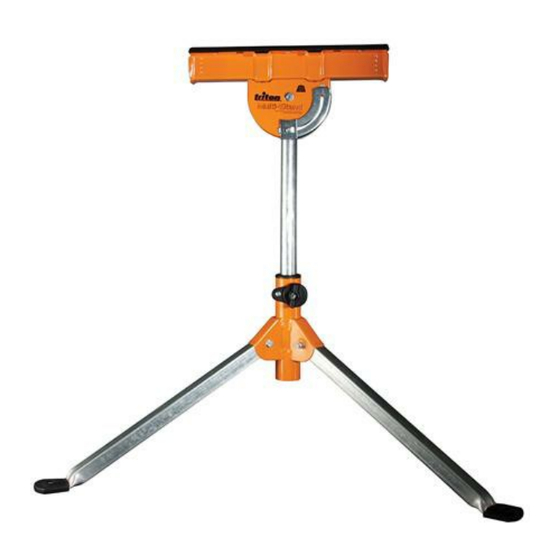

Multipurpose, adjustable support stand with extrawide tripod base for excellent stability on level or uneven ground. Folds down in seconds for
convenient transportation and storage. Swivelling and tilting head with builtin clamp and lowfriction slide surfaces.
Multipurpose support stand with extrawide tripod base for excellent stability on level or
uneven ground
Tilting, swivelling head features an open Uchannel combined with builtin clamping system
Height quickly adjusts from 635mm 940mm / 25" 37"
Supports 100kg / 220lbs
Head pivots from horizontal to vertical
Technical Specification
Product Height
Product Length
Product Width
Product Weight
Capacity Maximum load
Height Range
Standing Size Height
Angle Adjustment Range
What's in the Box
1070mm
800mm
800mm
5.3kg
100kg
635 940mm
635mm
Vertical though to
horizontal
1 x Head 385mm
1 x Adjustable leg support
2 x Swivel/tilt guides
4 x Plastic wingnuts
1 x Round plastic wingnut
1 x M8 bolt 80mm
1 x M8 bolt 65mm
4 x Dome cross head screws
1 x Washer 25mm
2 x Washer 20mm
1 x 40mm plate
1 x Instruction manual
MSA
200
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Triton MSA200
Summary of Contents for Triton MSA200
- Page 1 MultiStand MSA200 Multipurpose, adjustable support stand with extrawide tripod base for excellent stability on level or uneven ground. Folds down in seconds for convenient transportation and storage. Swivelling and tilting head with builtin clamp and lowfriction slide surfaces. Multipurpose support stand with extrawide tripod base for excellent stability on level or uneven ground Tilting, swivelling head features an open Uchannel combined with builtin clamping system Height quickly adjusts from 635mm 940mm / 25" 37" Supports 100kg / 220lbs Head pivots from horizontal to vertical Technical Specification What's in the Box 1 x Head 385mm Product Height 1070mm 1 x Adjustable leg support Product Length 800mm 2 x Swivel/tilt guides 4 x Plastic wingnuts Product Width 800mm 1 x Round plastic wingnut Product Weight 5.3kg 1 x M8 bolt 80mm 1 x M8 bolt 65mm Capacity Maximum load 100kg 4 x Dome cross head screws 1 x Washer 25mm Height Range 635 940mm 2 x Washer 20mm Standing Size Height 635mm 1 x 40mm plate 1 x Instruction manual Angle Adjustment Range Vertical though to...
-
Page 2: Operating And Safety Instructions
Multi-Stand Operating and Safety Instructions Bedienings- en veiligheidsvoorschriften Instructions d’utilisation et consignes de sécurité Gebrauchs- und Sicherheitsanweisung Istruzioni per l’uso e la sicurezza Instrucciones de uso y de seguridad Instruções de Operação e Segurança Instrukcja obsługi i bezpieczestwa Инструкции по эксплуатации и правила... - Page 4 (II) (Fig. A) (III) (IV) Page 3...
-
Page 5: Specification
Introduction Safety Instructions Thank you for purchasing this Triton tool. This manual contains information necessary for safe Carefully read and understand this manual and any label attached to the tool before use. and effective operation of this product. This product has unique features and, Keep these instructions with the product for future reference. -
Page 6: Maintenance
6. Fasten the Head Assembly (L) to the quadrants using the Pan Head Bolts (M). The round • Inspect the Triton Multi-Stand before every use. DO NOT use if any kind of damage is knob on the clamp which is built into the head should be on the same side as the round detected (deformation, corrosion, damaged welds etc.).
