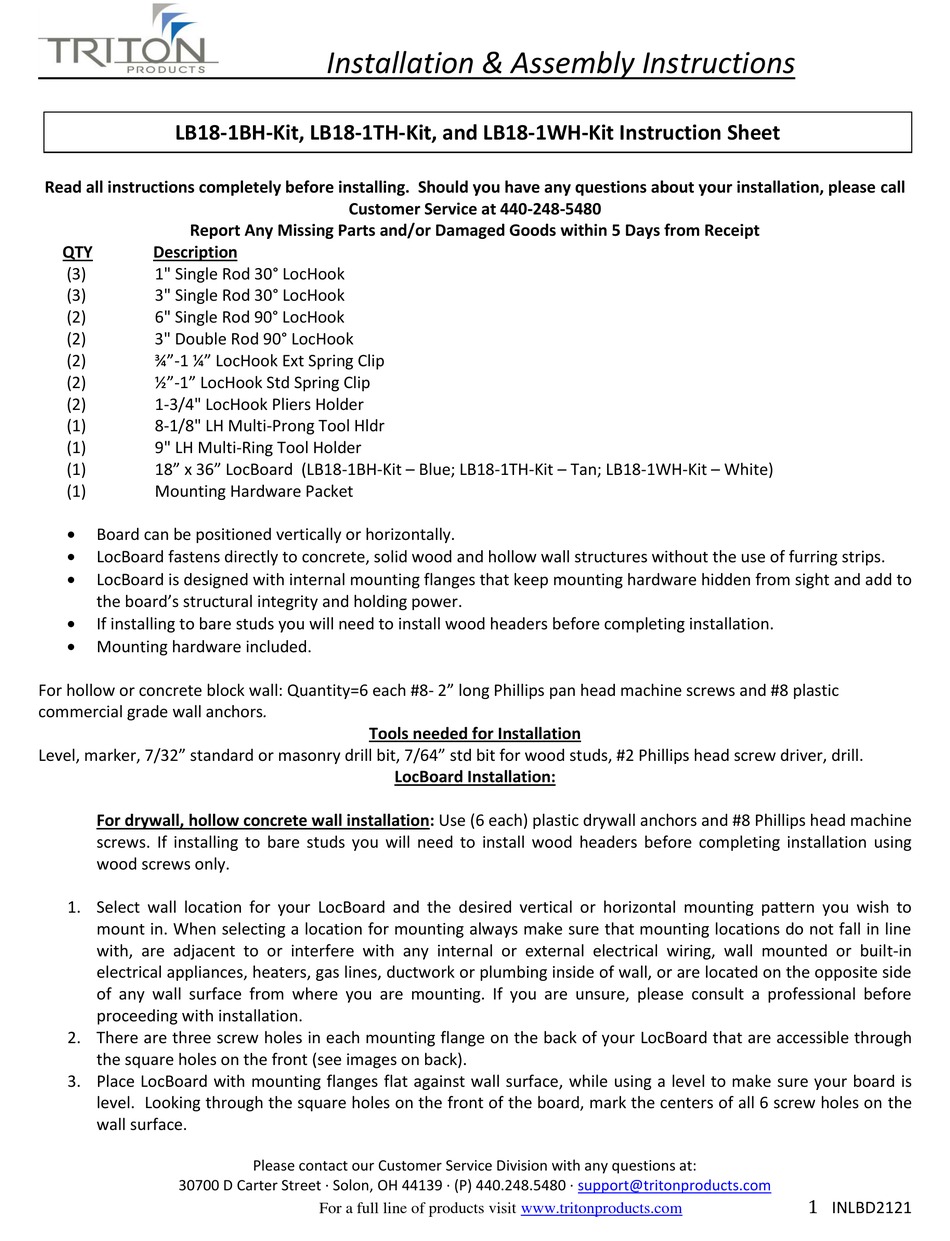

Triton LB18-1BH-Kit Installation & Assembly Instructions

LB18-1BH-Kit, LB18-1TH-Kit, and LB18-1WH-Kit Instruction Sheet
Read all instructions completely before installing. Should you have any questions about your installation, please call
Report Any Missing Parts and/or Damaged Goods within 5 Days from Receipt
QTY Description
(3) 1" Single Rod 30° LocHook
(3) 3" Single Rod 30° LocHook
(2) 6" Single Rod 90° LocHook
(2) 3" Double Rod 90° LocHook
(2) ¾"-1 ¼" LocHook Ext Spring Clip
(2) ½"-1" LocHook Std Spring Clip
(2) 1-3/4" LocHook Pliers Holder
(1) 8-1/8" LH Multi-Prong Tool Hldr
(1) 9" LH Multi-Ring Tool Holder
(1) 18" x 36" LocBoard (LB18-1BH-Kit – Blue; LB18-1TH-Kit – Tan; LB18-1WH-Kit – White)
(1) Mounting Hardware Packet

Board can be positioned vertically or horizontally.

LocBoard fastens directly to concrete, solid wood and hollow wall structures without the use of furring strips.

LocBoard is designed with internal mounting flanges that keep mounting hardware hidden from sight and add to
the board's structural integrity and holding power.

If installing to bare studs you will need to install wood headers before completing installation.

Mounting hardware included.
For hollow or concrete block wall: Quantity=6 each #8- 2" long Phillips pan head machine screws and #8 plastic
commercial grade wall anchors.
Level, marker, 7/32" standard or masonry drill bit, 7/64" std bit for wood studs, #2 Phillips head screw driver, drill.
For drywall, hollow concrete wall installation: Use (6 each) plastic drywall anchors and #8 Phillips head machine
screws. If installing to bare studs you will need to install wood headers before completing installation using
wood screws only.
1. Select wall location for your LocBoard and the desired vertical or horizontal mounting pattern you wish to
mount in. When selecting a location for mounting always make sure that mounting locations do not fall in line
with, are adjacent to or interfere with any internal or external electrical wiring, wall mounted or built-in
electrical appliances, heaters, gas lines, ductwork or plumbing inside of wall, or are located on the opposite side
of any wall surface from where you are mounting. If you are unsure, please consult a professional before
proceeding with installation.
2. There are three screw holes in each mounting flange on the back of your LocBoard that are accessible through
the square holes on the front (see images on back).
3. Place LocBoard with mounting flanges flat against wall surface, while using a level to make sure your board is
level. Looking through the square holes on the front of the board, mark the centers of all 6 screw holes on the
wall surface.
