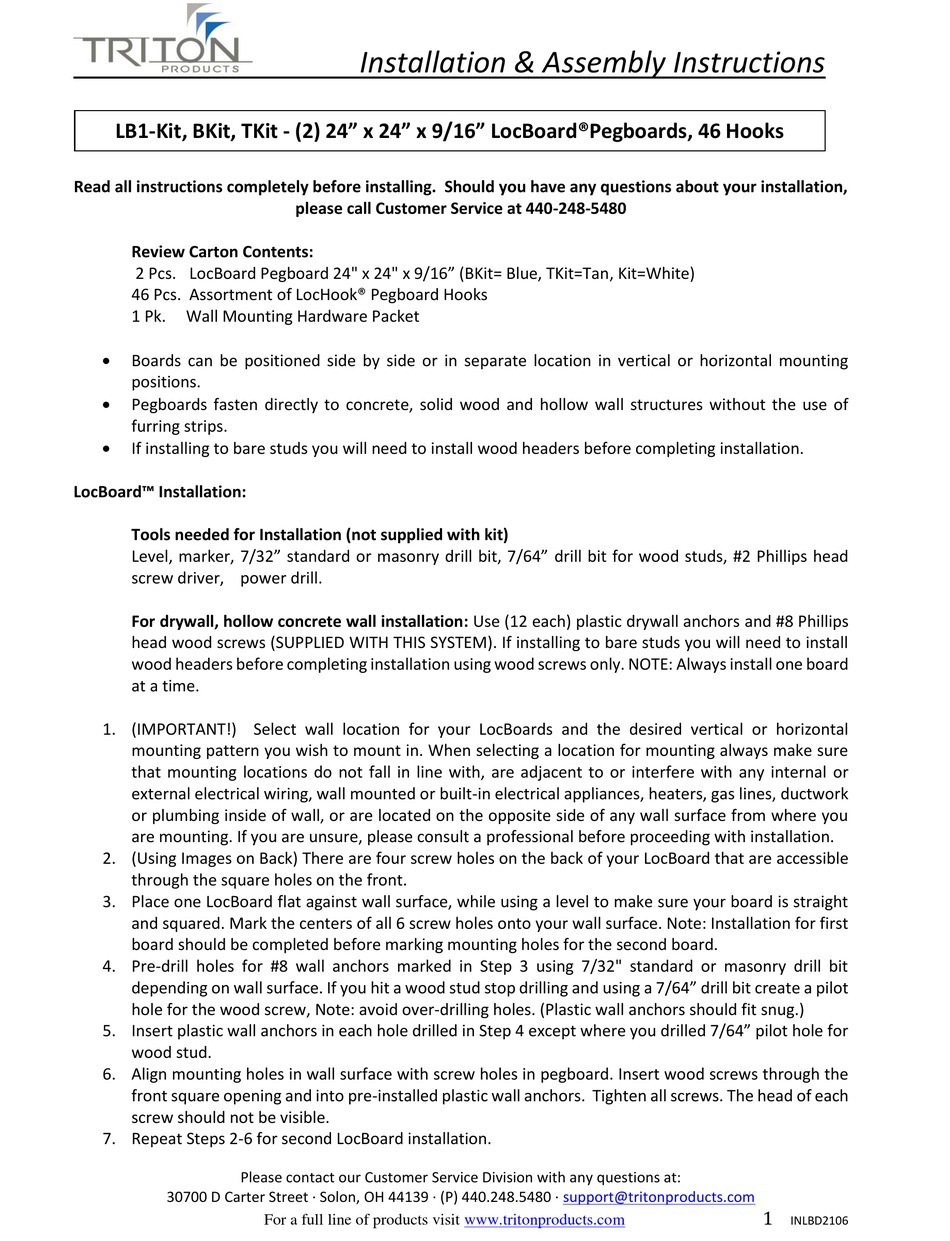

Triton LB1-Kit Installation & Assembly Instructions

LB1-Kit, BKit, TKit - (2) 24" x 24" x 9/16" LocBoard®Pegboards, 46 Hooks
Read all instructions completely before installing. Should you have any questions about your installation,

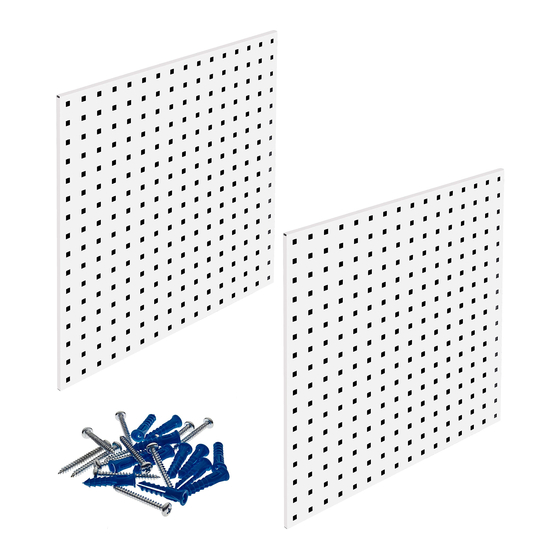

Review Carton Contents:

2 Pcs. LocBoard Pegboard 24" x 24" x 9/16" (BKit= Blue, TKit=Tan, Kit=White)
46 Pcs. Assortment of LocHook® Pegboard Hooks
1 Pk. Wall Mounting Hardware Packet

Boards can be positioned side by side or in separate location in vertical or horizontal mounting
positions.

Pegboards fasten directly to concrete, solid wood and hollow wall structures without the use of
furring strips.

If installing to bare studs you will need to install wood headers before completing installation.
LocBoard™ Installation:
Tools needed for Installation (not supplied with kit)
Level, marker, 7/32" standard or masonry drill bit, 7/64" drill bit for wood studs, #2 Phillips head
screw driver, power drill.
For drywall, hollow concrete wall installation: Use (12 each) plastic drywall anchors and #8 Phillips
head wood screws (SUPPLIED WITH THIS SYSTEM). If installing to bare studs you will need to install
wood headers before completing installation using wood screws only. NOTE: Always install one board
at a time.
1. (IMPORTANT!) Select wall location for your LocBoards and the desired vertical or horizontal
mounting pattern you wish to mount in. When selecting a location for mounting always make sure
that mounting locations do not fall in line with, are adjacent to or interfere with any internal or
external electrical wiring, wall mounted or built-in electrical appliances, heaters, gas lines, ductwork
or plumbing inside of wall, or are located on the opposite side of any wall surface from where you
are mounting. If you are unsure, please consult a professional before proceeding with installation.
2. (Using Images on Back) There are four screw holes on the back of your LocBoard that are accessible
through the square holes on the front.
3. Place one LocBoard flat against wall surface, while using a level to make sure your board is straight
and squared. Mark the centers of all 6 screw holes onto your wall surface. Note: Installation for first
board should be completed before marking mounting holes for the second board.
4. Pre-drill holes for #8 wall anchors marked in Step 3 using 7/32" standard or masonry drill bit
depending on wall surface. If you hit a wood stud stop drilling and using a 7/64" drill bit create a pilot
hole for the wood screw, Note: avoid over-drilling holes. (Plastic wall anchors should fit snug.)
5. Insert plastic wall anchors in each hole drilled in Step 4 except where you drilled 7/64" pilot hole for
wood stud.
6. Align mounting holes in wall surface with screw holes in pegboard. Insert wood screws through the
front square opening and into pre-installed plastic wall anchors. Tighten all screws. The head of each
screw should not be visible.
7. Repeat Steps 2-6 for second LocBoard installation.
