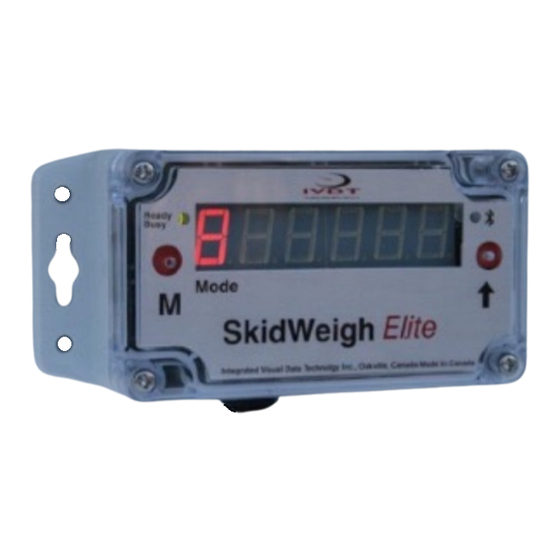

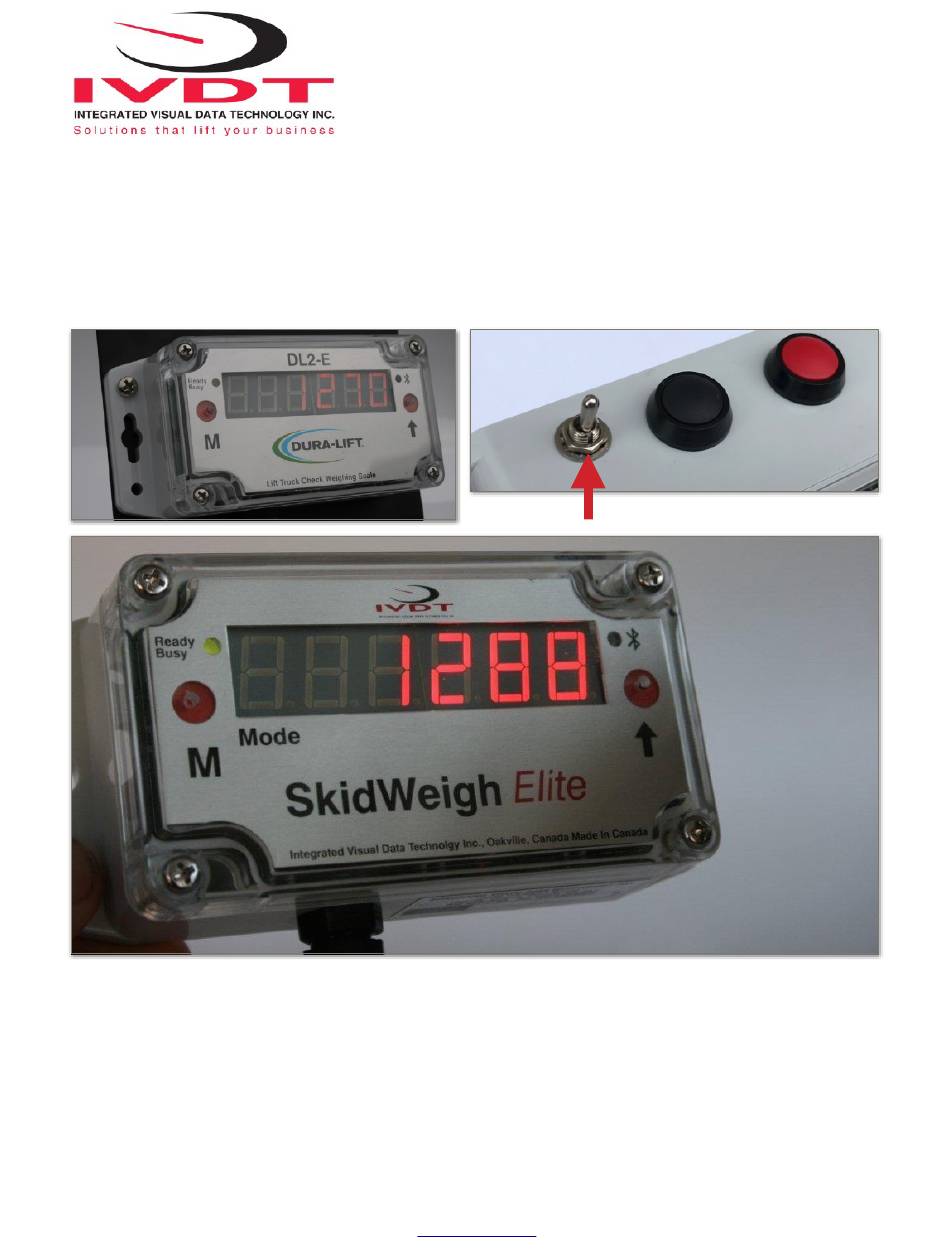

- Page 1 Installation & Calibration Manual Power On / Off Switch Electric Pallet Truck Check Weighing Systems SkidWeigh Series ED2E-EP and DL2E-EP ED2E-EP V1500 Integrated Visual Data Technology Inc. 3439 Whilabout Terrace, Oakville, Ontario, Canada L6L 0A7 www.skidweigh.com...
-
Page 2: Electromagnetic Compatibility
General Installation Guide This SkidWeigh Series ED2E-EP / DL2E-EP system installation & calibration guide describes how to install, calibrate, test and use your electric pallet truck on-board weighing system. Following the instructions in this guide will enable you to get your system setup and operating quickly. In the event that you require additional assistance, please contact customer support via e-mail at support@skidweigh.com, visit www.skidweigh.com or contact us at the address and or... -
Page 3: Pressure Transducer Installation
Operational Principal The SkidWeigh ED2E-EP / DL2E-EP system operation principal is based on the hydraulic pressure transducer mounted in the vehicle lifting hydraulic circuit. The increase in the hydraulic pressure will activate the specific “weighing cycle” algorithm and initiate automatic motion control of the hydraulic lift motor. - Page 4 Method B. Use the two black wires and splice them in series with one of the lift pump solenoid coil wires activating the pump motor. Disconnect one of the original solenoid coil wire ( From either positive or negative terminal of the solenoid coil ) and splice the two bLACK wires in series to the disconnected wire and solenoid terminal. ...
-
Page 5: Electrical Connections
Selecting the Mounting Location for Digital Indicator Use the mounting bracket with the anti vibration mounts and fasten the digital indicator to the vehicle dashboard, or any other convenient place on the electric pallet truck body There are many examples of mounting locations that will depend on the vehicle model. -
Page 6: Starting The Calibration Procedure
Starting the Calibration Procedure Lower the Empty Forks to the Ground There should be no hydraulic pressure in hydraulic lift circuit. - Turn power switch to on position - If the LED display does not show any number(s), turn on the main power switch located on top of the housing. - Page 7 Calibration of Loaded Forks Position the electric pallet truck into the skid load with your known load weight. Lower the loaded forks to the ground and make sure that no pressure is in the system. (In our example the known load weight is 4000 pounds) Start entering the known load weight into the digital indicator by using the arrow up button to toggle digits 0-9 and ‘M’...
- Page 8 Operator Weighing Procedure The Mode 8 shown on LED display is always the starting point to initiate a weighing cycle Weighing Loads When power to the vehicle is turned on the LED display should show software version. (Example: Software version 1500) If the LED display is not showing any digits make sure the power on / off switch located on top of the instrument enclosure is on.
- Page 9 two buttons to add multiple load weights and to reset system to 0 when complete and or print. ON / OFF Power Switch ACCUMULATIVE TOTAL RESET and PRINT BUTTON ADD LOAD BUTTON Black Button to be pressed to accumulate / add loads. LED display must show a current load weight in order to add the load weight to a series of series in the accumulative load weight total counter.
