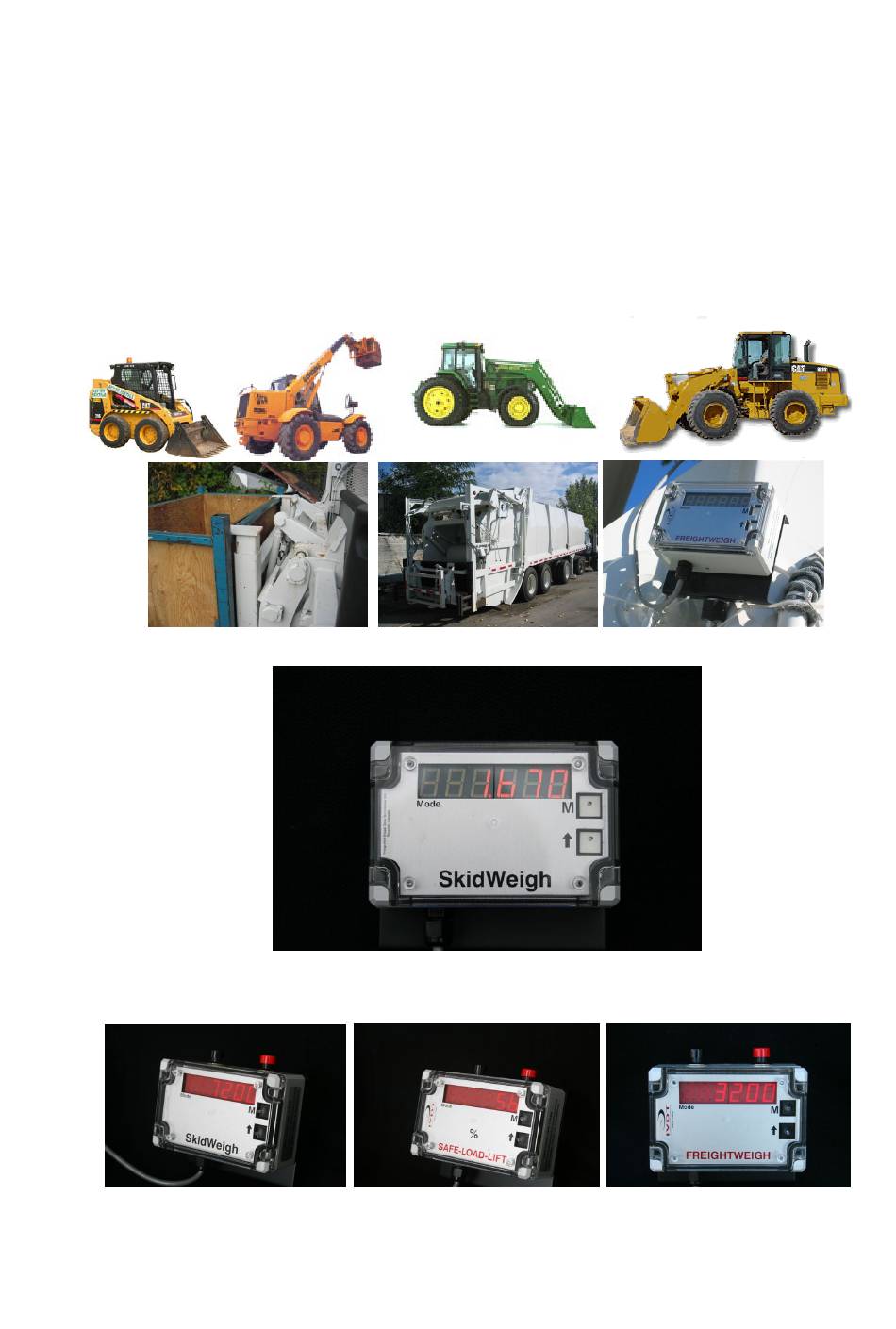

- Page 1 ED2-Series SkidWeigh System Automatic Check Weighing for Loading Shovels, Skid Steers, Loaders, Telehandlers and Recycling Material Handling Vehicles Ver.120706-22-SD4 ED2-L Series showing the load weight in t (tones)
- Page 2 The ED2-SSL, ED2-CC and ED2-L Series SkidWeigh systems are an automatic heavy duty loader /forklift checks weighing /overload warning system used to verify load weights on the move. This is not a “Legal for Trade” scale, but an economical on-board check weighing system that will allow your loader operator to increase vehicle utilization, increase productivity, provide operator safety and display the load weights readout within +/-0.5% to +/-1% of the vehicle’s lifting capacity.
- Page 3 Mounting Location for Digital Indicator The compact design and light weight the ED2 Series digital indicator can easily be mounted within the operator’s compartment. Select a suitable location and using the mounting bracket with the anti-vibration mount install the digital indicator on the vehicle’s dashboard preferably on the right hand side. A bracket can be bolted onto a lock striker plate, window frame or turret support.
-
Page 4: Electrical Connections

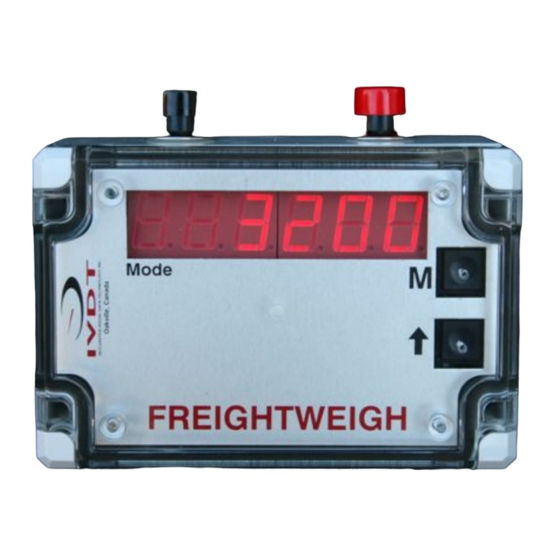

2. The pressure transducer must be installed in the hydraulic line between the lift control valve and the lift cylinder(s). If possible locate a hydraulic fitting that can be removed to allow drilling and tapping. Failing this a hydraulic adaptor can be fitted. Connect appropriate fitting and hose to allow pressure transducer to be mounted in a safe location. - Page 5 Digital Indicator Calibration / Setup Two Keys Description Upper Right Key Labeled “M” (Calibration / MODE key) Lower Right Key Labeled “⇑ ⇑ ⇑ ⇑ ” (0 – 9 numerical increments input key) MODE Five Digits Load Weight Readout Display Digit 5 Digit 4 Digit3...
-
Page 6: Starting Point
Example: For 3000 pounds lifting capacity of the vehicle, use at least 1500 pounds or close to that • load weight to be used to calibrate the system. Note: If you want the system to show load weight in pounds; use the known load weight in pounds •... - Page 7 STATIC Weighing Method & System Calibration Calibration of the Empty Bucket / Forks Lower the empty bucket or forks to the ground (No hydraulic pressure in the lifting circuit) To access the calibration function press the “M” key and hold it down for 5 seconds. •...
- Page 8 Calibration of Loaded Bucket / Forks (Example: Known Load Weight is 1500) At this point, drive the vehicle into the skid with a known load weight. (If this is a typical pallet with • known weight, make sure that the forks are in the pallet and are lowered to the ground. In the case of the bucket make sure that the loaded bucket fully crowded and lowered to the ground.
- Page 9 Press the “M” key to advance to MODE 6 and immediately lift the loaded bucket or forks just above • the ground. (Activate the lift control valve, as you would do during the normal lifting operation). • MODE Five Digits Load Weight Readout Display The display will go blank.
- Page 10 DYNAMIC Weighing Method & System Calibration Calibration of the Empty Bucket / Forks Lower the empty bucket or forks to the ground (No hydraulic pressure in the lifting circuit) To access the calibration function press the “M” key and hold it down for 5 seconds. •...
- Page 11 Calibration of Loaded Bucket / Forks (Example: Known Load Weight is 1500) At this point, drive the vehicle into the skid with a known load weight. (If this is a typical pallet with • known weight, make sure that the forks are in the pallet and are lowered to the ground. In the case of the bucket make sure that the loaded bucket is fully crowded and lowered to the ground.
- Page 12 Press the “M” key to advance to MODE 6 and immediately start lifting the loaded bucket or forks at • engine idle at smooth speed (Open lifting valve fully to raise the load), DO NOT stop the lift cycle until Mode number changes from 6 to calibrated load weight entered into the system. (With engine at the idle speed, activate lift control valve fully, do not stop until you get weight readout).
- Page 13 If another weighing cycle is not to be initiated and the vehicle is in motion or the forks are lifted during normal operation, the hydraulic pressure “spikes” will be introduced and some random readout value on the digital display will be shown. The value displayed might be 0, 10, 20, 25, etc. This readout value does not represent the load weight, but is only a readout value due to the vehicle motion and the system automatic weight cycle.
- Page 14 MODE Five Digits Load Weight Readout Display Using the same keys “M” and “⇑ ⇑ ⇑ ⇑ ”, enter the “Overload Weight Value”. In our example it’s 4000. • You will note that the MODE 7 digit remains throughout this operation. (Make sure that 5 digit is 0) MODE Five Digits Load Weight Readout Display...
- Page 15 ED2 Series with Two Independent Weighing Channels (Two position switch located on the top of the instrument housing) The ED2-2X version of the SkidWeigh or any other models with such a feature has an additional weighing channel that can be used to verify load weights on vehicles operating with other attachments (extension forks, bucket, clamps or lifting container buckets, etc.) Some material handling operations require frequent changes between the “normal forks”...
- Page 16 Accumulative Load Weight Function Without Onboard Printer: Left Button: Accumulative function for load weights Every time the indicator shows the load weight and the left button is pressed, the load weight will be added into a weighing counter and will show the current total weight of all load weights entered in the counter.
- Page 17 RESET. Example of single load weight being printed: IVDT Skidweigh 4380 Every time the indicator shows the load weight and the left button is pressed, the load weight will be added into a load weighing counter.
- Page 18 Example of 40 load weights added in the weighing counter and being printed: IVDT SkidWeigh #01 = 01550 #02 = 01000 “ “ #40 = 01265 TOTAL = 42550...
- Page 19 The onboard printer, (NCI Dot Matrix MiniPrinter Series or CEN-DM Thermal Printer) is 12V Printer can be powered only through IVDT Inc. wiring harness since power from the vehicle can be anywhere from 12 to 55V DC. Only through original wiring harness the printer will get 12V DC from the ED2-SkidWeigh Series Digital Indicator, regardless of the vehicle operating voltage.
- Page 20 ED2 Series SkidWeigh MODE Description MODE 8 Represents Standard Operational “Weighing Cycle Mode” MODE 0 to 6 Represents standard calibration mode MODE 7 Represents Optional “Overload Warning Input Value Set-up” MODE Description Action Remarks MODE 8 must be Lower the forks to the Standard “Weighing Cycle Mode”...
-
Page 21: Troubleshooting
Troubleshooting For help with general or miscellaneous problems that you may experience with your ED2 Series SkidWeigh, refer to the following table for the possible solutions. Problem Possible solution Possible cause - Check whether the fuse is blown - Check for a bad ground chassis MODE 8 digit is not shown on the connection instrument display when the... - Page 22 Conformity (EMC) by application of harmonized standards. (NCI printer, pressure transducers) Conformity (EMC) compliance with Part 15 of the FCC rules.
- Page 23 ED2 Series SkidWeigh User’s Manual (Vehicle Operator Copy) The ED2 Series SkidWeigh is fully automatic lift truck / loader check weighing /overload warning system. This is not a “Legal for Trade” weighing scale, but an economical onboard check weighing system that will allow your lift truck / loader operator to determine the load weight readout within +/- 0.5% to +/- 1% of the vehicle lifting capacity.
- Page 24 Dynamic Weighing Method To obtain a load weight readout the lift truck operator is to lower the loaded bucket / forks to the ground, wait until the indicator MODE shows the number then the load is being lifted without any interruption until load weigh is shown on the indicator.
- Page 25 Right Button : Reset and print function of accumulative load weights Every time the indicator shows the load weight and the right button is pressed, the current load weight or current total weight in the counter will be reset. In the case of the system equipped with onboard printer, the weight ticket will be printed.
