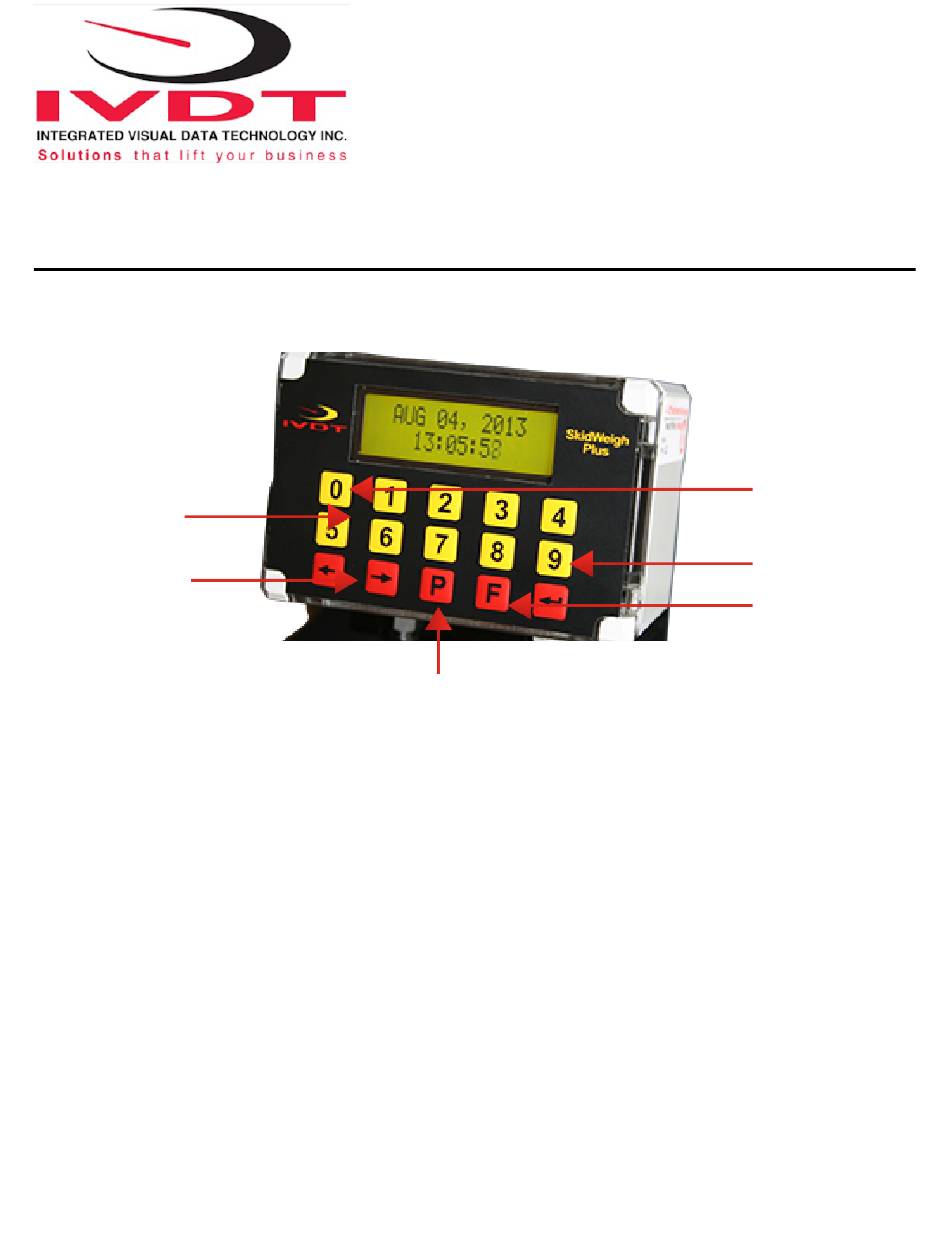

SkidWeigh Plus ED3/4-IM: Quick Reference Calibration &
Alpha/Numeric
Keypad
(<)(>)
Scroll Keys
Admin Menu
SkidWeigh Plus ED3/4-IM Key Pad Operator Access Programming Functions
Note: All Keypad access control from the factory will come with 111 up to 999 (9 slots) pre-
programmed into each unit. Therefore the first 9 slots should be reprogrammed when commissioned
into your application.
Step
1.: Power on the unit. A correctly installed unit will show 'ENTER ID.' Enter the following code
742F.
Step
2.: The system will automatically begin on slot 1, which from the factory will be programmed with
111. Enter the new 3 digit operator code and press enter. Once accepted it will then move to slot 2.
Repeat step 2 until all operator codes are entered into the system.
Step
3.: Removing Operator Codes: Power on the unit. Enter 742F using the keypad. Press enter
until you come to the slot with the code to be removed. Enter 0 and press enter.
Operation Guide
SkidWeigh Plus ED3/4-IM Key Pad
(P) Key
• Print Tickets (systems with compatible printer)
• Save Data to USB
• Send Data to Base Station
• Waybill # ID Input
• Decimal Input (used with parts count by weight)
(0) Function Key
(9) Function Key
(F) Function Key
Advertisement
Table of Contents
Related Manuals for IVDT SkidWeigh Plus ED3-IM
Summary of Contents for IVDT SkidWeigh Plus ED3-IM
- Page 1 SkidWeigh Plus ED3/4-IM: Quick Reference Calibration & Operation Guide SkidWeigh Plus ED3/4-IM Key Pad (0) Function Key Alpha/Numeric Keypad (9) Function Key (<)(>) Scroll Keys (F) Function Key Admin Menu (P) Key • Print Tickets (systems with compatible printer) • Save Data to USB •...
- Page 2 SkidWeigh Plus ED3/4-IM: Quick Reference Calibration & Operation Guide SkidWeigh Plus ED3/4-IM RFID Card Access Programming Functions Note: All systems equipped with RFID Card or Fob readers will come with a Master Card for programming and 2 cards that will allow the vehicle to start till secure sequenced cards specific to operators are added.
- Page 3 ‘Synchronization’ and retrieve the time from the Base Station. Step 4.: For the SkidWeigh Plus ED3-IM select ‘Manual’ and press enter. Enter the correct time. Use enter to move through the date and time until finished. When complete the system will show configured.
- Page 4 SkidWeigh Plus ED3/4-IM: Quick Reference Calibration & Operation Guide 4.) Setting Vehicle ID Note: All reports will display a vehicle identification number as well as responsible operator. You can assign a numerical value to your lift truck up to 3 digits. Step 1.: With the lift truck powered on press (F) then (9) and enter the ‘Supervisor Code’.
- Page 5 SkidWeigh Plus ED3/4-IM: Quick Reference Calibration & Operation Guide SkidWeigh Plus ED3/4-IM Data Export Menu Note: The data export menu is a password protected area that allows users with authority to download data from one on-board unit and upload to another. Depending on how the unit is equipped, not all options may be available.
- Page 6 SkidWeigh Plus ED3/4-IM: Quick Reference Calibration & Operation Guide SkidWeigh Plus Operation Guide (continued) Step 4.: Do not manipulate the tilt, side shift or fourth lever function during the weighing process Note: It is important to maintain consistency in the above process, similar to the process in the calibration guide.
- Page 7 SkidWeigh Plus ED3/4-IM: Quick Reference Calibration & Operation Guide Note: Waybill# Load Identification (continued) (B) When a single load weight is displayed on the LCD press (P) to advance to the waybill# input. ↵) With the last waybill digit entered press (Enter Key complete the single load weigh cycle with waybill#.
