Table of Contents

EM-30
Series
Turret Stereo and Zoom
INSTRUCTION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EM-33 and is the answer not in the manual?

Questions and answers

Related Manuals for Meiji Techno EM-33

Summary of Contents for Meiji Techno EM-33

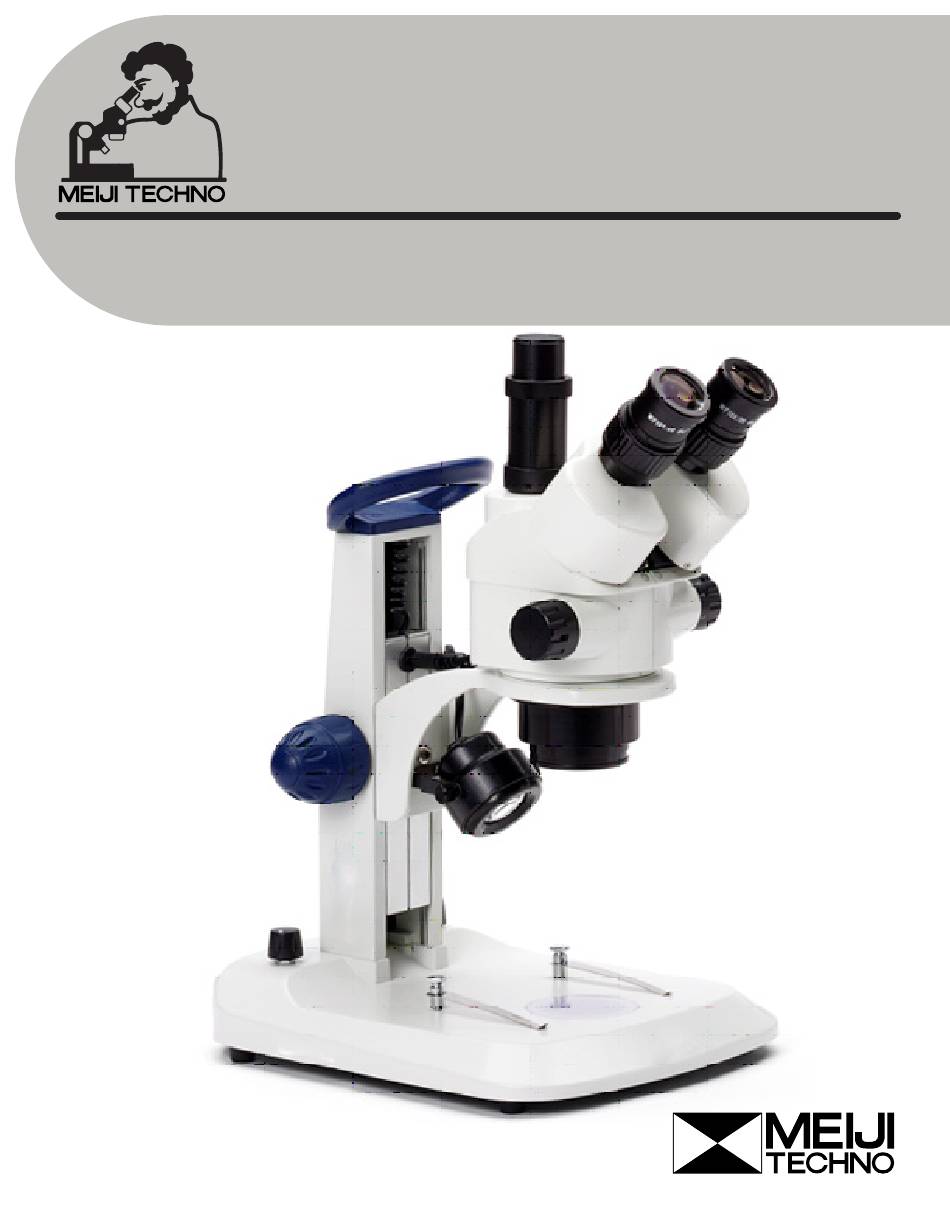

  • Page 1 EM-30 Series Turret Stereo and Zoom INSTRUCTION MANUAL...
  • Page 2 EM-30 Series Turret Stereo and Zoom INSTRUCTION MANUAL Table of Contents Introduction 2-3) Construction of the microscope 4-5) Functions of the microscope Preparing the microscope for use 7-9) Working with the microscope 10-11) Maintenance and cleaning...

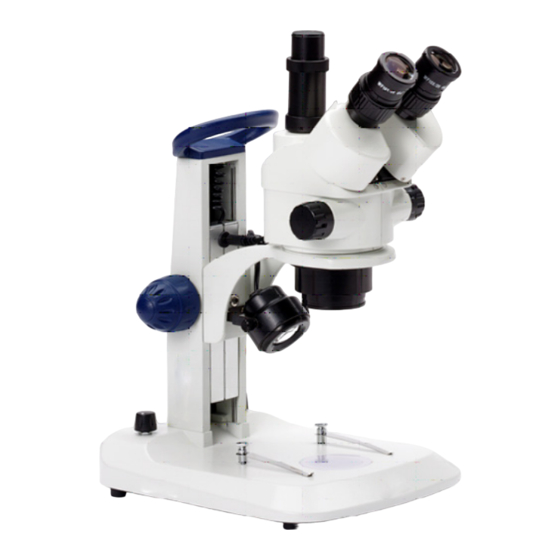

  • Page 3 EM-30 Series Turret Stereo and Zoom INSTRUCTION MANUAL Introduction With your purchase of a EM-30 (zoom) stereo microscope you have chosen for a quality product. The EM-30 is developed for use at schools, and by collectors of minerals, stamps etc. The stereo microscope consists of two separate microscope tubes which are combined as a unit, in order to focus them simultaneously on the object.

  • Page 4: Construction Of The Microscope

    EM-30 Series Turret Stereo and Zoom INSTRUCTION MANUAL Construction of the Microscope The names of the several parts are listed below and are indicated in the picture on the next page: A) Photo tube with focussing (trinocular models) B) Carrying Handle C) Connector indicdent illuminator D) Focusing knob(s) E) Intensity controller for incident illumination...
  • Page 5 EM-30 Series Turret Stereo and Zoom INSTRUCTION MANUAL...

  • Page 6: Functions Of The Microscope

    EM-30 Series Turret Stereo and Zoom INSTRUCTION MANUAL Functions of the Microscope The stereo microscope consists of a stand with holder/focusing system, in which the stereo head is placed and locked with set screw . Always hold the microscope at its arm and grip when moving it. Tube The zoom stereo microscope heads of the EM-30 are equipped with a 45 degrees tube, which is rotatable over 360 degrees.
  • Page 7 EM-30 Series Turret Stereo and Zoom INSTRUCTION MANUAL The stereo versions(1/3x or 2/4x) are equipped with 2 pairs of achromatic objectives in a revolving nosepiece (K). By rotating this nosepiece over 180 degrees another magnification is set. Turn the nosepiece untill it clearly “clicks” into position. Illumination The stand is equipped with transmitted and incident LED illumination of 3 Watt.

  • Page 8: Preparing The Microscope For Use

    EM-30 Series Turret Stereo and Zoom INSTRUCTION MANUAL Preparing the Microscope for Use Take the stereo microscope out of its packing and put it on a firm stable table. Connect the power cable to the mains supply and switch on the microscope. Place the eyeshades onto the eyepieces.

  • Page 9: Working With The Microscope

    EM-30 Series Turret Stereo and Zoom INSTRUCTION MANUAL Working with the Microscope • Place an object onto the stage plate and adjust the height of the holder randomly with the focussing knobs (D) at the backside of the stand. • Set both diopter adjustment rings(H) to the “O”...
