  • Page 1 JAPAN...

  • Page 2: Table Of Contents

    Page INSTRUCTION ........................ 3 ASSEMBLY INSTRUCTIONS ..................4 Installing the Eye Guards ................... 6 Installing the Eyepieces ....................6 Adjusting the Interpupillary Distance ................6 Determining the Correct Eyepoint ................6 Eyeglass Wearers ...................... 6 Standard Binocular Head ................... 7 Ergonomic Binocular Head ..................

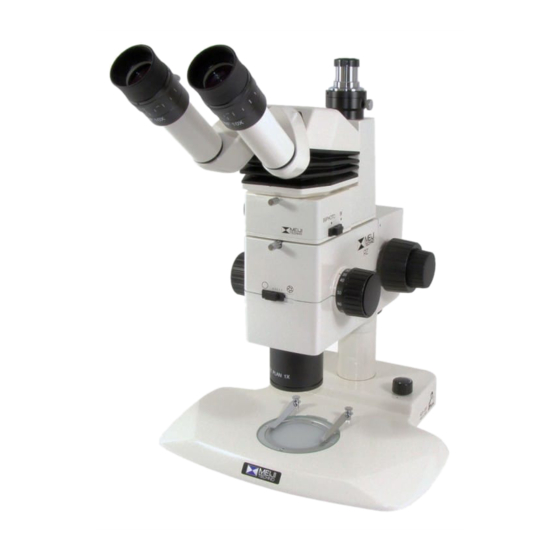

  • Page 3: Instruction

    A magnification indicator is conveniently located on the zoom control. The RZ series is also coated with a special anti-static finish, which is especially useful when working with sensitive electronic components.

  • Page 4: Assembly Instructions

    ASSEMBLY INSTRUCTIONS Read these instructions thoroughly before attempting assembly. The RZ is a modular system, and your configuration might not include all of the parts discussed in this manual. This will affect the assembly process, so be sure that you understand how your components fit together and the order in which they should be assembled before you begin.
  • Page 5 (4) Viewing Head: A basic RZ system will have the viewing head mounted directly to the microscope body. However, If your system includes the COX Coaxial Illuminator or the MA751 Photo/Video Attachment, these items must be installed before the head is mounted (see Page15 ). The dovetail on the bottom of the viewing head (ergonomic or standard) fits into the mount on the top of the microscope body.

  • Page 6: Installing The Eye Guards

    INSTALLING THE EYE GUARDS Each eyepiece is provided with a protective rubber eye guard. Use of the rubber eye guard protects the optical surface of the eyepiece from accidental damage and prevents stray light from interfering with the image you are viewing.

  • Page 7: Standard Binocular Head

    STANDARD BINOCULAR HEAD The standard binocular head is inclined at 45 degree. The interpupillary distance is adjustable from 46mm to 75mm. ERGONOMIC BINOCULAR HEAD The ergonomic binocular head viewing angle is adjustable from 10 to 50 and the interpupillary distance is adjustable from 52mm to 75mm. ADJUSTING THE VIEWING HEIGHT The viewing height is correctly adjusted when your body, neck and back are positioned to avoid fatigue and strain.

  • Page 8: Tension Controls

    CHANGING THE MAGNIFICATION The RZ series microscopes have a continuous zoom range with a 10:1 zoom ratio and positive detente click stops at twelve positions of magnification. The zoom controls are located on each side of the microscope and can be operated from either side of the microscope.

  • Page 9: Dioptric And Parfocality Adjustment With Eyepiece Reticle

    DIOPTRIC AND PARFOCALITY ADJUSTMENT WITH EYEPIECE RETICLE Install the eyepiece containing the reticle into the right eyetube. Focus the right eyepiece on the image of the reticle by rotating the dioptric adjustment rings until the image of the reticle is sharply in focus. Place a flat specimen on the microscope stage beneath the objective.

  • Page 10: Rzp Plain Stand

    Cat. No. FL181 (110V), FL181/220 (220/240V) Replacement Bulb: Cat. No. FL180/70 ANNULAR ILLUMINATION An annular fiber optic light system is also available for the RZ series stereo microscopes. Composed of a 150W halogen light source and annular light guide. Cat. No. FL182 (110V), FL182/220 (220/240V) Replacement Bulb: Cat.

  • Page 11: Rzt Transmitted Light Stand

    RZT TRANSMITTED LIGHT STAND The RZT Transmitted Light Stands are used for brightfield observation of transparent specimens. The RZT features a 6V 30W halogen lamp with variable intensity control, 95mm diameter clear glass stage plate, two stage clips and an anti-static finish. A second transformer is incorporated into the base for use with the optional COX illuminator or auxiliary light source.

  • Page 12: Rzbd Brightfield/Darkfield Transmitted Light Stand

    RZBD BRIGHTFIELD/DARKFIELD TRANSMITTED LIGHT STAND The RZBD transmitted light stand is used for brightfield/darkfield observation of transparent specimens. The RZBD stand incorporates an annular optic light guide and an external 150W halogen light source. The RZBD stand features an anti-static paint-coated aluminum alloy base which includes a 95mm diameter clear glass stage plate, two stage clips and a built-in brightfield/darkfield baffle.

  • Page 13: Graduated Mechanical Stage For Rzp

    GRADUATED MECHANICAL STAGE FOR RZP This stage has 0.1mm graduations and coaxial controls for precise control of mounted specimens. Features 116mm x 137mm work surface with stage clips, 50mm x 75mm X-Y travel. Cat. No. MA578 GRADUATED MECHANICAL STAGE FOR RZT, RZBD, RZDT This stage has 0.1mm graduations and coaxial controls for precise control of mounted specimens.

  • Page 14: Cox Coaxial Vertical Illuminator

    COX COAXIAL ILLUMINATOR The COX Coaxial Illuminator directs light from a 6V 30W halogen lamp (replacement bulb: MA326) down through the objective lens onto your specimen and increases the microscope magnification by a factor of 1.5X. This vertical lighting is especially useful for viewing highly reflective surfaces such as solder balls, integrated circuits, wafers, or magnetic recording heads, as well as for illuminating small pits and other surfaces that would otherwise be in shadow.

  • Page 15: Photomicroscopy And Videomicroscopy Parts And Accessories

    PHOTOMICROSCOPY AND VIDEOMICROSCOPY PARTS AND ACCESSORIES The primary component necessary for photo or video work with the RZ stereo microscope is the MA751 Photo/Video Attachment. The MA751 allows you to take 35mm or large-format Polaroid photographs of your specimens, or to display your specimens on a video monitor. If you wish to photograph specimens while simultaneously displaying them on a video monitor, you can do so by attaching the MA752 Auxiliary Video Attachment to the MA751 photo/video attachment.

  • Page 16: Ma752 Auxiliary Video Attachment

    MA752 AUXILIARY VIDEO ATTACHMENT The MA752 Auxiliary Video Attachment attaches to on the left side of the MA751 photo/video attachment and allows you to mount an additional video camera to the microscope. A standard “C” mount (MA151/10) for attaching a video camera is included in the MA752, so if you have a camera and monitor, no further accessories are required.

  • Page 17: 35Mm Photomicroscopy Equipment

    35mm PHOTOMICROSCOPY EQUIPMENT Three parts are required for mounting a 35mm SLR camera body to the MA751 Photo/Video Attachment: 1. The appropriate T-2 Adapter Ring for your SLR camera body: T2-1 Canon T2-6 Olympus T2-2 Minolta T2-7 Contax, Yashika T2-3 Pentax K T2-8 Konica...

  • Page 18: Installing Ma150/50 And Ma150/60 Camera Attachment

    INSTALLING MA150/50 AND MA150/60 Camera Body The MA150/50 is comprised of two parts held together by a set screw: a small mounting flange that fits over the photo tube and locks down with a second T2 Adapter set screw, and a larger upper tube with a threaded end to accept the T2 adapter that is attached to your MA150/50 camera body.

  • Page 19: Using The Ma150/50 And Ma150/60 Camera Attachment

    USING THE MA150/50 AND MA150/60 CAMERA ATTACHMENTS Taking high quality photographs through a microscope takes a little practice, but the basic steps that you will need to follow are really quite simple. First of all, it is important that your microscope’s interpupillary, diopter, and illumination settings are properly adjusted (see Pages-in this manual).
  • Page 20 The image you wish to photograph should now be focused in all of the eyepieces and at the plane of the film. The procedure is identical for the MA150/50, except you must use the viewfinder window located on your 35mm camera body to parfocal the camera attachment instead of using the focusing eyepiece. Viewing the image of the specimen using the MA150/50 camera attachment is more difficult due to the small size of the viewfinder window and the lack of 10X magnification that the MA150/60 focusing eyepiece adds.

  • Page 21: Large Format Photomicroscopy Equipment

    LARGE FORMAT PHOTOMICROSCOPY EQUIPMENT The MEIJI TECHNO PMX100 Large Format Photographic Camera mounts directly to the photo tube of the RZ Photo/Video attachment, featuring a built-in 10X magnification factor and comes equipped with a 10X widefield focusing eyepiece and framing reticle.

  • Page 22: Using The Framing Reticle

    PMX100 CAMERA OPERATION (1) Place the PMX100 photomicrographic camera over the photo tube. The PMX100 requires no photo eyepiece as the camera comes equipped with a 10X projection lens. (2) Install the film holder of your choice by loosening the clips and positioning the film holder on top of the connecting frame.
  • Page 23 VIDEOMICROSCOPY EQUIPMENT MEIJI TECHNO offers a variety of videomicrography equipment including cameras, monitors and "C" mounts in a range of magnifications. 1. VIDEO CAMERAS CK3800N CCD color TV camera, 1/2” CCD, 450 lines horizontal resolution, NTSC system, 115V- DC12V adapter, BNC and Y/C cables.

  • Page 24: Installing Ma752 Auxiliary Video Attachment "C" Mounts

    INSTALLING MA752 AUXILIARY VIDEO ATTACHMENT “C” MOUNTS STANDARD “C” MOUNT MA151/10 ASSEMBLY: CCD Camera The MA151/10 consists of two parts: a 1” thread “C” mount portion with a set screw, and video tube that is already screwed into the video attachment. First “C”...

  • Page 25: Installing Ma751 Photo/Video Attachment "C" Mounts

    The MEIJI MA765 Drawing Attachment for the RZ Series gives you the power to create high quality detailed images of your most demanding specimens.

  • Page 26: Optical Data

    RZ Series MAGNIFICATION AND FIELD OF VIEW PLANACHROMAT OBJECTIVES 1.0X 0.5X 0.75X 1.5X 2.0X Working Distance Working Distance Working Distance Working Distance Working Distance 78.5mm 164mm 107mm 43mm 29mm Eyepiece Zoom Total Field Total Field Total Field Total Field Total Field Mag.

  • Page 27: Maintenance And Care

    MAINTENANCE AND CARE REPLACING THE BULB OR FUSE Before replacing the bulb or fuse turn off the power to the microscope and disconnect the plug from the electrical power source. After use, the bulb and lamp housing can become very hot! Take care not to touch the lamp housing and do not bring flammable substances (Alcohol, cleaning solvents, gasoline, paint thinner, etc.) near the lamp housing.

  • Page 28: Bulb Replacement Rzbd Stand

    BULB REPLACEMENT FOR RZBD STANDS The bulb on 150W models is accessed through the external fiber optic light source. The outer cover of the external light source (FL180A or FL180B) is hinged at the rear. Rotate the large locking screw found on the top/front of the cover counter clockwise and gently pull up on the handle.
  • Page 29 6, Oi-670, Oi-machi, Iruma-gun Saitama 356-0053, Japan Phone : 492-67-0911 Fax : 492-69-0691, 492-69-0692 2186 Bering Drive San Jose, CA., 95131, USA Phone : 408-428-9654 Fax : 408-428-0472 Toll free : 800-832-0060 98. 07. 214. 2,000 V2 Printed in Japan...
