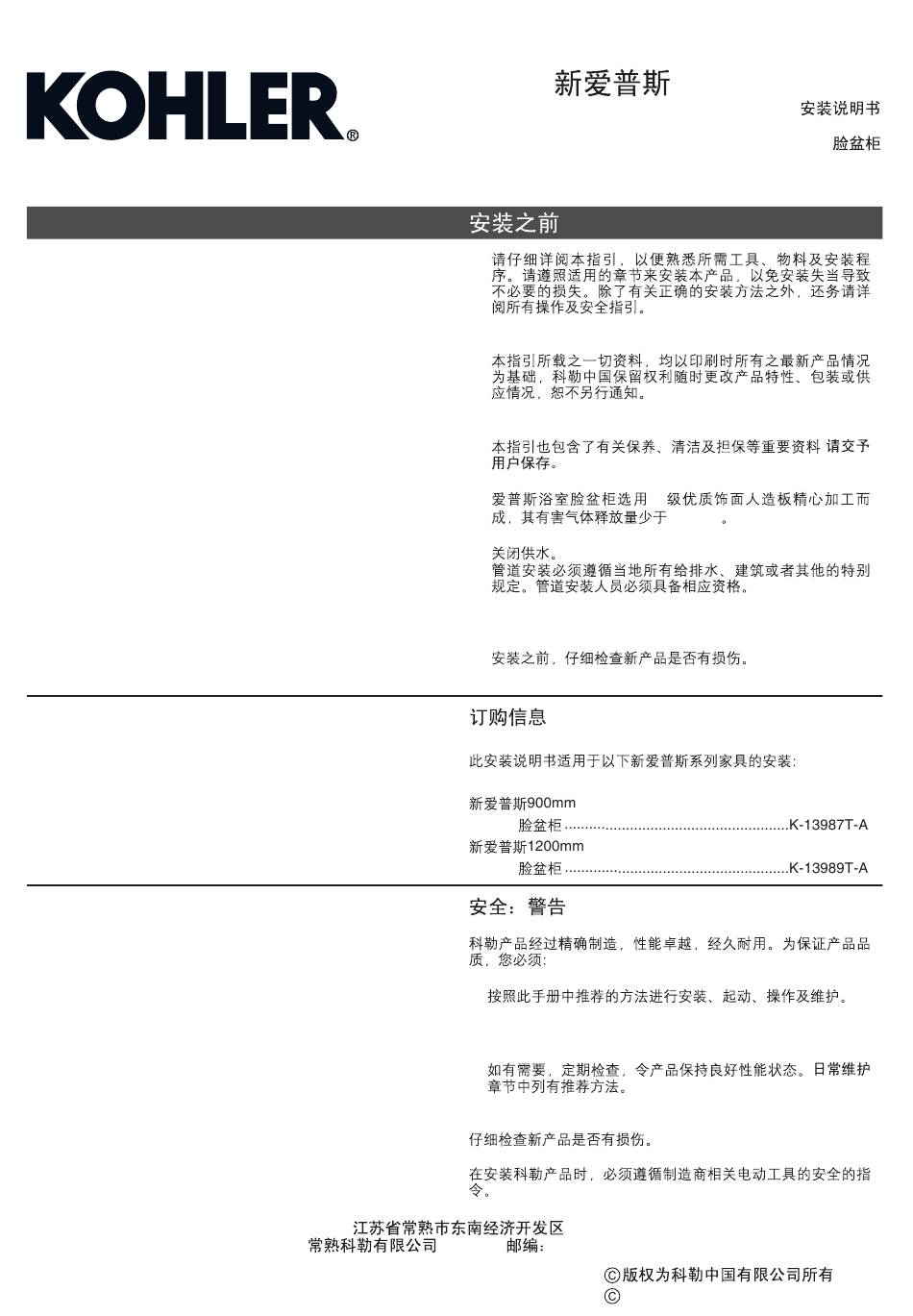

BEFORE YOU BEGIN
BEFORE YOU BEGIN
·
Please read these instructions carefully to familiarize
yourself with the required tools, materials, and installation
sequences. Follow the sections that pertain to your
particular installation. This will help you avoid costly
mistakes. In addition to proper installation, read all
operating and safety instructions.
·
All information in these instructions is based upon the
latest product information available at the time of
publication. Kohler China. reserves the right to make
changes in product characteristics, packaging, or
availability at any time without notice.
·
These instructions contain important care, cleaning, and
warranty information-
please leave instructions for the
consumer.
·
IPSWICH bathroom cabinet adopts E1 grade wood-based
panel of high quality, and with further processing, its
harmful emissions will be less than 1.5mg/L.
·
Turn off the water supply.
·
The pluming installation must comply with Water Supply
Regulations/Bye-laws, Building Regulations or any
particular regulations and practices, specified by the local
water company or water undertakers. The installation
should be carried out by a plumber.
·
Before installation carefully inspect the new fixture for any
signs of damage.
ORDERING INFORMATION
This installation covers the following products in the NEW
IPSWICH range:
NEW IPSWICH 900mm
Washbasin Cabinet ..................................K-13987T-A
NEW IPSWICH 1200mm
Washbasin Cabinet ..................................K-13989T-A
SAFETY: WARNINGS
Kohler products are precision-engineered and should give
continued superior and safe performance, provided:
1. They are installed, commissioned, operated and
maintained in accordance with the recommendations given
in this Manual.
2. Periodic attention is given, as necessary, to maintain the
product in good functional order. Recommended
guidelines are given in the
Carefully inspect the new fixture for any signs of damage.
When installing Kohler Products, manufacturers guidelines for
power tool safety should be followed.
1199569-T01-A
MAINTENANCE
section.
·
·
·
·
·
·
·
1.
2.
215500
-1-
NEW
IPSWICH
INSTALLATION INSTRUCTIONS
WASHBASIN CABINETS
K-13987T-A/K-13989T-A
E1
1.5mg/L
Copyright Kohler China Ltd., 2012
-
, 2012
