Bristol series bathroom cabinets

Advertisement

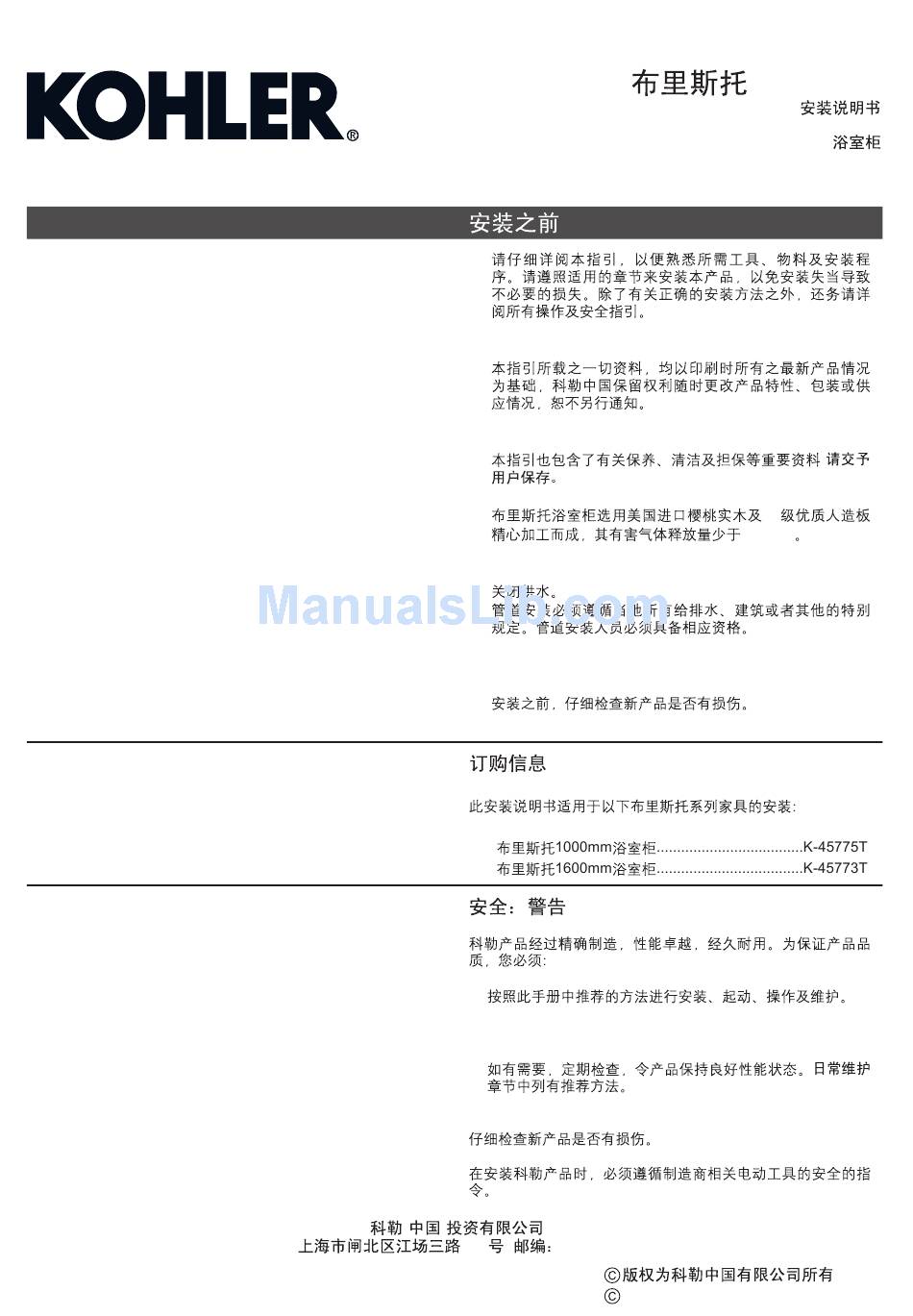

BEFORE YOU BEGIN

BEFORE YOU BEGIN
·
Please read these instructions carefully to familiarize
yourself with the required tools, materials, and installation
sequences. Follow the sections that pertain to your
particular installation. This will help you avoid costly
mistakes. In addition to proper installation, read all
operating and safety instructions.
·
All information in these instructions is based upon the
latest product information available at the time of
publication. Kohler China. reserves the right to make
changes in product characteristics, packaging, or
availability at any time without notice.
·
These instructions contain important care, cleaning, and
warranty information-
please leave instructions for the
consumer.
·

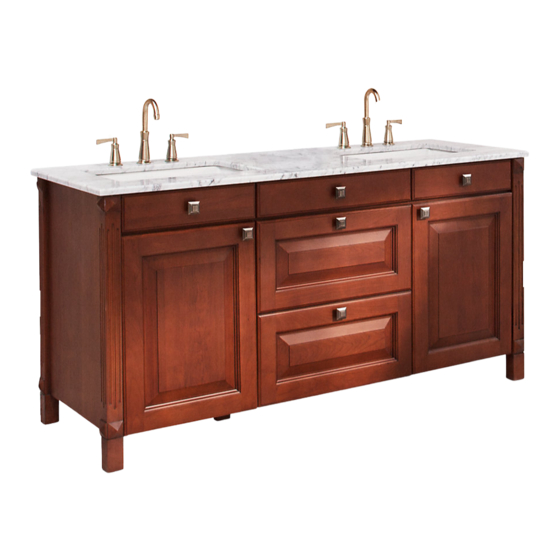

BRISTOL bathroom cabinet adopts America imported
solid cherry wood and E1 grade wood-based panel of high
quality, and with further processing, its harmful emissions
will be less than 1.5mg/L.
·
Turn off the water supply.
·
The pluming installation must comply with Water Supply
Regulations/Bye-laws, Building Regulations or any
particular regulations and practices, specified by the local
water company or water undertakers. The installation
should be carried out by a plumber.
·
Before installation carefully inspect the new fixture for any
signs of damage.

ORDERING INFORMATION

This installation covers the following products in the BRISTOL
range:
BRISTOL 1000mm Bathroom Cabinet ...............K-45775T
BRISTOL 1600mm Bathroom Cabinet ...............K-45773T

SAFETY: WARNINGS

Kohler products are precision-engineered and should give
continued superior and safe performance, provided:
1. They are installed, commissioned, operated and
maintained in accordance with the recommendations given
in this Manual.
2. Periodic attention is given, as necessary, to maintain the
product in good functional order. Recommended guidelines
are given in the
MAINTENANCE
Carefully inspect the new fixture for any signs of damage.
When installing Kohler Products, manufacturers guidelines for
power tool safety should be followed.
1202483-T01-B
section.
(
)
-1-
·
·
·
·
·
·
·
1.
2.
158
200436
Copyright Kohler China Ltd., 2013
BRISTOL
Installation INSTRUCTIONS
BATHROOM CABINETS
K-45775T/K-45773T
E1
1.5mg/L
-
, 2013

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the K-45775T and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Kohler K-45775T

  • Page 1 · · All information in these instructions is based upon the latest product information available at the time of publication. Kohler China. reserves the right to make changes in product characteristics, packaging, or availability at any time without notice. ·...
  • Page 2 ROUGHING-IN Reference Value UNIT : mm Fig.1 Kohler reserves the right to change marked dimensions without prior notice. INSTALLATION A. Install Washbasin Cabinet · · Install the services. · · Hot (H) and Cold (C) inlets must be connected to the correct inlet pipes.
  • Page 3 1. After unpacking, screw out adjustable feet (see Fig.3). Place the cabinet at a desired position in the bathroom, and then adjust the four adjustable feet to put the cabinet in place. Go up Go down Fig.3 2. Pre-drill the floor drainage hole if the bathroom is suitable for floor drainage.
  • Page 4 B. Remove/Adjust the Door(s) and Hinges Door Adjustment Note: Refer to the hinge assembly illustration above to select the screw that corresponds to the adjustment needed. · · Height-to move the door up or down. · · Side-to move the door to the left or to the right. ·...
  • Page 5 2. Metal Drawer Removal · · Fully extend the rails. · · Slightly lift the drawer and then pull the drawer out towards yourself. · · Set the drawer aside. Reinstallation · · Push the rails towards inside. · · Align the drawer on the rails and push forward until you hear the rails "snap"...
  • Page 6 Fig.12a Fig.12b Fig.12c C. Finish Installation 1. Install the faucet and lavatory in accordance with the manufacturer s instructions. 2. Connect the hot and cold water supplies. 3. Attach the waste, and tighten securely. 4. Turn on the hot and cold water valves and check the supply connections for any leaks.
  • Page 7 b. Floor drainage (S-Trap) Please install the drain assembly and faucet as shown. Please set the water supply and drainage position according to the suppliers instructions. You can adjust the height of shelf to fit the drain assembly. Faucet Supply Lines Shut-off Valve Door Drain Assembly...
  • Page 8 6. Please do not sit, lean or step on the basin cabinet. 7. If any fixtures caused by abnormal reasons, Kohler China can supply paid replacement for service parts caused by abnormal reasons in the limited duration of warranty.
