Unitech MS840 Quick Start Manual

MS840
Quick Start Guide

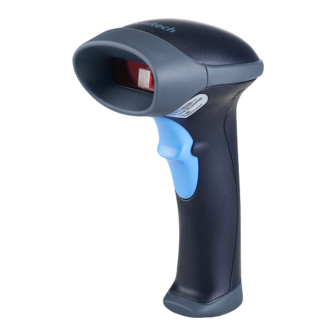

The Unitech MS840 Laser Scanner
Installation Instructions & Popular Configuration Settings
Connecting USB cable to a host
Plug the interface cable into a free USB port of a host computer. The
MS840 is now ready to use.
SETTINGS AND CONFIGURATION
The following section covers the most common configuration
settings for your MS840 scanner.
For additional configuration options please
unitechscanners.com/MS840 and select the "Download" tab.
You will find the User's Manual and a variety of other resources.
SETUP AND INSTALLATION
The following steps will walk you through the installation process.
Test & Finish
Open a word processing program such as Microsoft Word or Notepad
on your host. Now scan the following barcode:
If the word "Unitech" appears on the screen you have succesfully
installed your scanner. Congratulations!
Flash Mode
visit
Flash Mode
Scan here to switch to Flash Mode from the default Trigger Mode. In
Flash mode, the MS840 will function automatically. It will scan at a set
interval.
Connecting and disconnecting the interface cable
An audible "click" sound indicates the interface cable has been plugged in correctly and the connector lock is engaged. To unplug the interface cable,
release the connector lock by inserting one end of a paperclip into the handle.
Trigger Mode
Trigger Mode
Scan here to switch back to Trigger Mode. In Trigger Mode, the MS840
will scan only when the scanner button is pressed.
Tab Mode
Tab Mode
If you wish to switch from the default Enter Mode to Tab Mode, scan
the top barcode then the bottom barcode. In this mode, data will tab
over to the next column as you scan instead of jumping to the next line.
