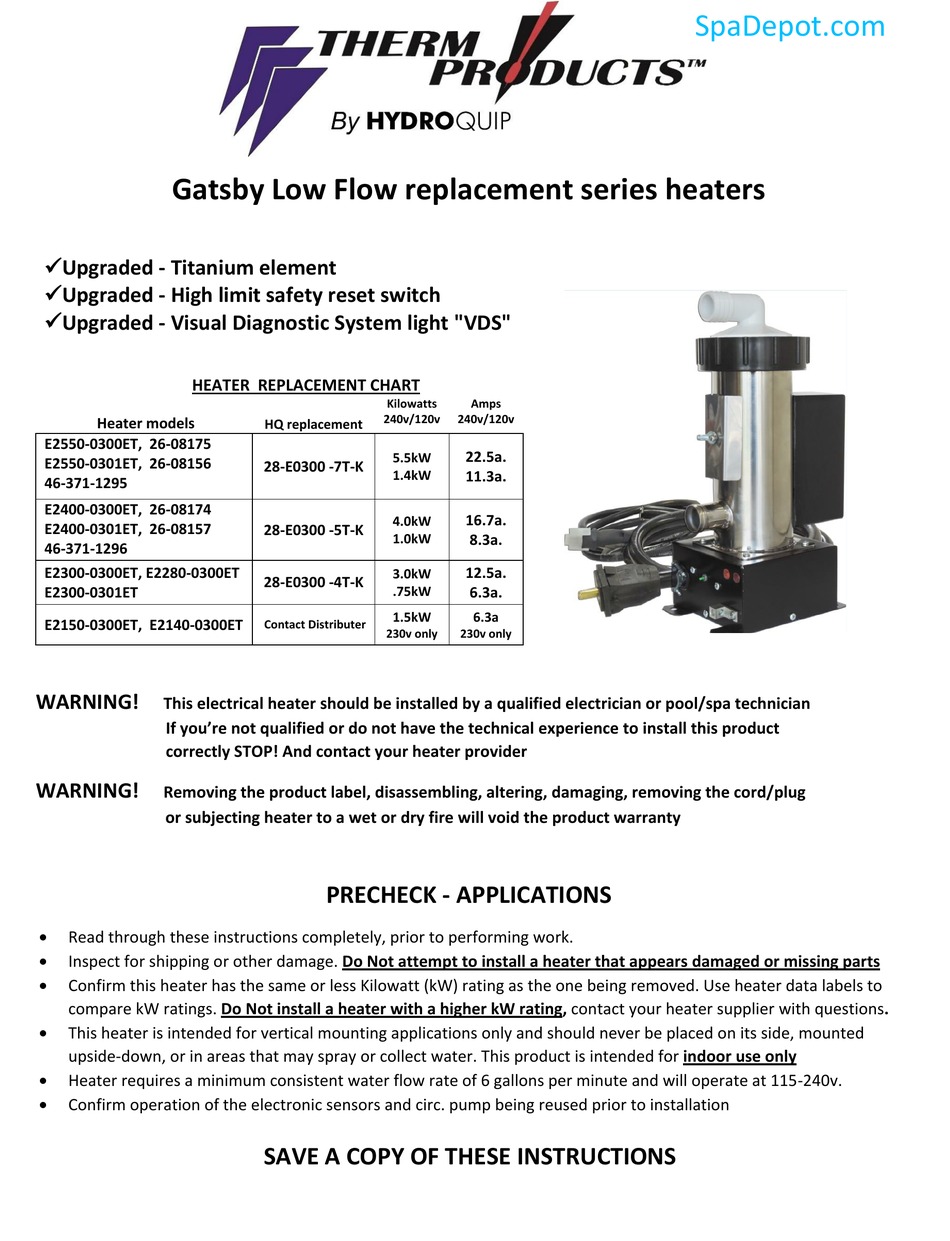

HydroQuip Therm Products E2550-0300ET Manual

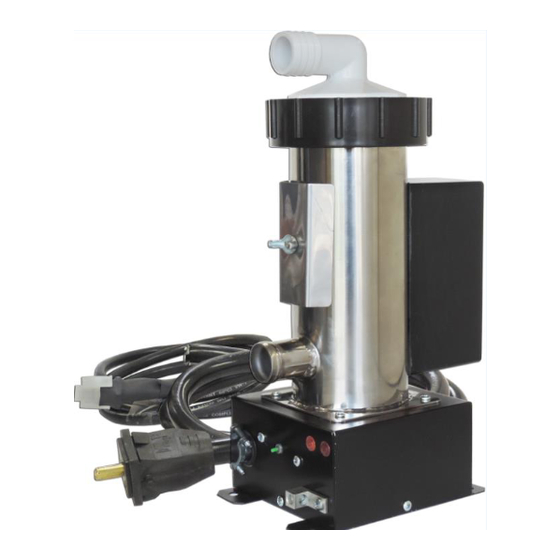

Gatsby Low Flow replacement series heaters
Upgraded - Titanium element
Upgraded - High limit safety reset switch
Upgraded - Visual Diagnostic System light "VDS"

HEATER REPLACEMENT CHART

Heater models
E2550-0300ET, 26-08175
E2550-0301ET, 26-08156
46-371-1295
E2400-0300ET, 26-08174
E2400-0301ET, 26-08157
46-371-1296
E2300-0300ET, E2280-0300ET
E2300-0301ET
E2150-0300ET, E2140-0300ET
WARNING!
This electrical heater should be installed by a qualified electrician or pool/spa technician
If you're not qualified or do not have the technical experience to install this product
correctly STOP! And contact your heater provider
WARNING!
Removing the product label, disassembling, altering, damaging, removing the cord/plug
or subjecting heater to a wet or dry fire will void the product warranty

Read through these instructions completely, prior to performing work.

Inspect for shipping or other damage. Do Not attempt to install a heater that appears damaged or missing parts

Confirm this heater has the same or less Kilowatt (kW) rating as the one being removed. Use heater data labels to
compare kW ratings. Do Not install a heater with a higher kW rating, contact your heater supplier with questions.

This heater is intended for vertical mounting applications only and should never be placed on its side, mounted
upside-down, or in areas that may spray or collect water. This product is intended for indoor use only

Heater requires a minimum consistent water flow rate of 6 gallons per minute and will operate at 115-240v.

Confirm operation of the electronic sensors and circ. pump being reused prior to installation
Kilowatts
240v/120v
HQ replacement
5.5kW
28-E0300 -7T-K
1.4kW
4.0kW
28-E0300 -5T-K
1.0kW
3.0kW
28-E0300 -4T-K
.75kW
1.5kW
Contact Distributer
230v only

PRECHECK - APPLICATIONS

SAVE A COPY OF THESE INSTRUCTIONS
Amps
240v/120v
22.5a.
11.3a.
16.7a.
8.3a.
12.5a.
6.3a.
6.3a
230v only
