- Page 1 SpaDepot.com CS/ES9700Y SERIES Operation Manual Covers the following CS & ES series: 9700Y, 9704Y, 9707Y, 9708Y, 9709Y GECKO Y SERIES...
- Page 2 Introduction This manual covers electrical and installation details on the following product series. Some photos and instructions may not apply to the product you have purchased. -U Series "Fixed" Heater configuration: This series is designed to fit the most common heater position. Depending upon the actual control being replaced, you may still need to modify the plumbing to achieve proper alignment.
-
Page 3: Table Of Contents
Table of Contents Important Safety Instructions......3-4 Electrical Installation..........5-7 GFCI Wiring Detail..........7 Heater Installation..........8 Versi-Heat / Optional Heaters.......8 Power Connection..........9 Circuit Board Configurations.......10 Pump Cord Connections........10 WiFi Module Installation Kit.........11 Spaside Control Installation........12 Spaside Functions/Features......13-15 Power Up & Breaker Settings......16 Changing Low-Level Configuration.....16 Spaside Messages.........17-18 Operation Considerations........19 Trouble Shooting..........20-21... -
Page 4: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS DANGER To reduce the risk of injury, do not permit children to use this product unless they are closely supervised at all times. WARNING - RISK OF CHILD DROWNING. Extreme caution must be exercised to prevent unauthorized access by children. To avoid accidents, ensure that children cannot use a spa or hot tub unless they are supervised at all times. - Page 5 IMPORTANT SAFETY INSTRUCTIONS Persons using medication should consult a physician before using a spa or hot tub since some medication may affect heart rate, blood pressure, and circulation. For Cord and Plug Connected Units Must be connected to a grounded, grounding type receptacle only. NEVER connect the spa to an extension cord.
-
Page 6: Electrical Installation
Electrical Installation A licensed electrician must accomplish the electrical installation in accordance with the National Electric Code(NEC) Article 680, and any local codes in effect at the time of installation. Refer to the System Data Label for equipment voltage and maximum amperage draws. - Page 7 Electrical Installation ELECTRICAL CONNECTIONS OPTION 1 GFCI Installed in Main Service Panel 20-60AMP HARDWIRED MAIN BREAKER PANEL INLINE SPA DISCONNECT PORTABLE SPA LINE 1 LINE 2 REFER TO GFCI WIRING DETAIL ON PAGE 8 Option 1 shows the power from GFCI breaker installed into main service panel to a service disconnect within line-of-site of the spa.
-
Page 8: Gfci Wiring Detail
Electrical Installation If your system was configured to include a 120VAC power cord, ensure that the proper receptacle has been installed (a dedicated circuit is required). DO NOT under any circumstances modify a 20 Amp plug to fit into a 15 Amp receptacle or use an extension cord. -
Page 9: Heater Installation

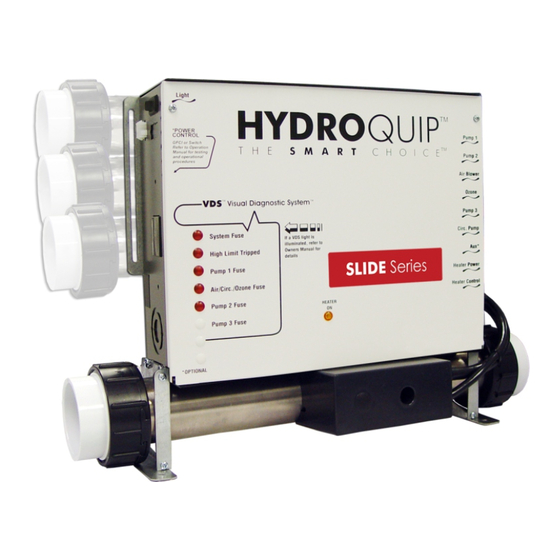

Heater Installation The "U" Series Fixed Heater and "US" Series Slide Heater systems will arrive from the factory with the heater mounted in the bottom location as pictured in Step 1. The "US" Series Slide Heater can be used in this configuration or you can move the Slide Heater to the back of the control as shown below to align easily with your particular plumbing arrangement. -
Page 10: Power Connection
Power Connection IMPORTANT: Always refer to the product data label (located on top of the control box) for specific electrical information. Use copper conductors only as required by the NEC. Ÿ Secure wires as defined by the NEC and in compliance with any local Ÿ... -
Page 11: Circuit Board Configurations
Circuit Board Configurations All component outputs are pre-configured for 120V. If 240V output is required, please utilize the illustration below and the wiring diagram that was included with your unit for the correct component location to properly convert to 240V. Neutral &... -
Page 12: Wifi Module Installation Kit
Wi-Fi Module Installation Kit (Optional) Your new system has the capability to connect with the internet by using a Wi-Fi Module Kit (sold separately). If using this option with your system, please make sure to install the module kit following these few steps: Step 1 - Insert the wi-fi module cable connector (MODULE “CO”) into the empty connection on the system circuit board marked “CO”... -
Page 13: Spaside Control Installation
Spaside Control Installation A optional placard has been provided with each control to eliminate problems encountered when the spaside access hole is too large. Use the illustrations and instructions below to install the spaside control provided with your system. PLACARD TAB LOCK ADHESIVE GASKET... - Page 14 CS970XY Spaside Functions / Features Pump 1 Pump 2 Blower Light Power Program Temp Up Temp Dwn Blower Filtration Pump 1 Indicator Indicator Indicator Pump 2 Light Heater Indicator Indicator Indicator Pump 1 - Press o nce to turn on low speed. Press a second time to turn pump to high speed (with a dual-speed pump).
-
Page 15: Spaside Functions/Features
Spaside Functions / Features (Cont.) Power Key - This key provides access to: Manual Economy Mode - When active this mode forces the system to maintain a temperature 20F° less than the set temperature. The display will toggle between “ ”... - Page 16 Spaside Functions / Features (Cont.) Setting the Filter Cycle Frequency: - Enter the programming menu by pressing and holding the FILTER key for 5 seconds. The current time will be displayed with the hours flashing. If adjusting the clock is necessary do it now, otherwise press the FILTER key repeatedly until FF## “FF”...
-
Page 17: Power Up & Breaker Settings
Power Up & Breaker Setting Power-up & breaker setting Boot up display sequence (Each parameter is displayed for 2 seconds) 8 . 8 . 8 Lamp test Software number Software Revision Low-level selection All the segments and Software Part Number Revision of the Software Low-level selected LEDs light up. -
Page 18: Spaside Messages
Smart Winter Mode Smart Winter Mode (SWM) protects the spa and equipment by monitoring the temperature within the equipment bay. When a freezing condition is detected SWM becomes active for the next 24 hours. During this period the system will start the Pump(s) and Blower for a minimum of 1 minute at preset intervals becoming more frequent the more severe the freezing condition becomes. - Page 19 Spaside Messages Cont’d The system detected water flow when the heater main pump was or is off. Make sure that the low-level programming has been properly set, with or without circulation pump (depending on your system configuration) If present while heater pump is off pressure/flow switch may be stuck shut or need replacement and/or adjustment.
-
Page 20: Operation Considerations
Operation Considerations The following describes situations you may encounter and situations to be aware of. Warm Weather Conditions Since your spa will normally be expected to maintain warm to hot water ready for use, a great deal of attention has been directed to the energy conservation detail of insulation to keep electrical cost down. Energy conservation efficiency may be achieved by extensive insulation of the spa cabinet, plumbing, spa shell and in some climates full foam insulation may have been provided. -
Page 21: Troubleshooting
Troubleshooting The following describes situations and possible solutions to common problems you may encounter as a spa owner. TroubleShooting Nothing Operates Main Breaker is OFF - Set to On. Sub-Panel Breaker Off - Set to On. Equipment GFCI Off - Set to On. Power switch in Off position - Set to On. - Page 22 Troubleshooting Therapy Jet Not Operational Water Shut-Off Valves are Closed - Open Shut-Off valves. Dirty Filter - Clean or replace filter. Jets Not Properly Adjusted - Adjust Jets properly. Diverter Valve Not Properly Adjusted - Adjust diverter valve properly. Thermal Overload Tripping - Check for restricted flow of water. Water Leaks Spa Overfilled - Adjust water level.
-
Page 23: System Data Label
The voltage and amperage ratings are shown on the bottom of the label. Product, Model, Serial and Code numbers are also shown on the label. Corona, CA 92880 | www.hydroquip.com E99812 Warranty Information... - Page 24 07/19 85-0127B Rev.03.1...
