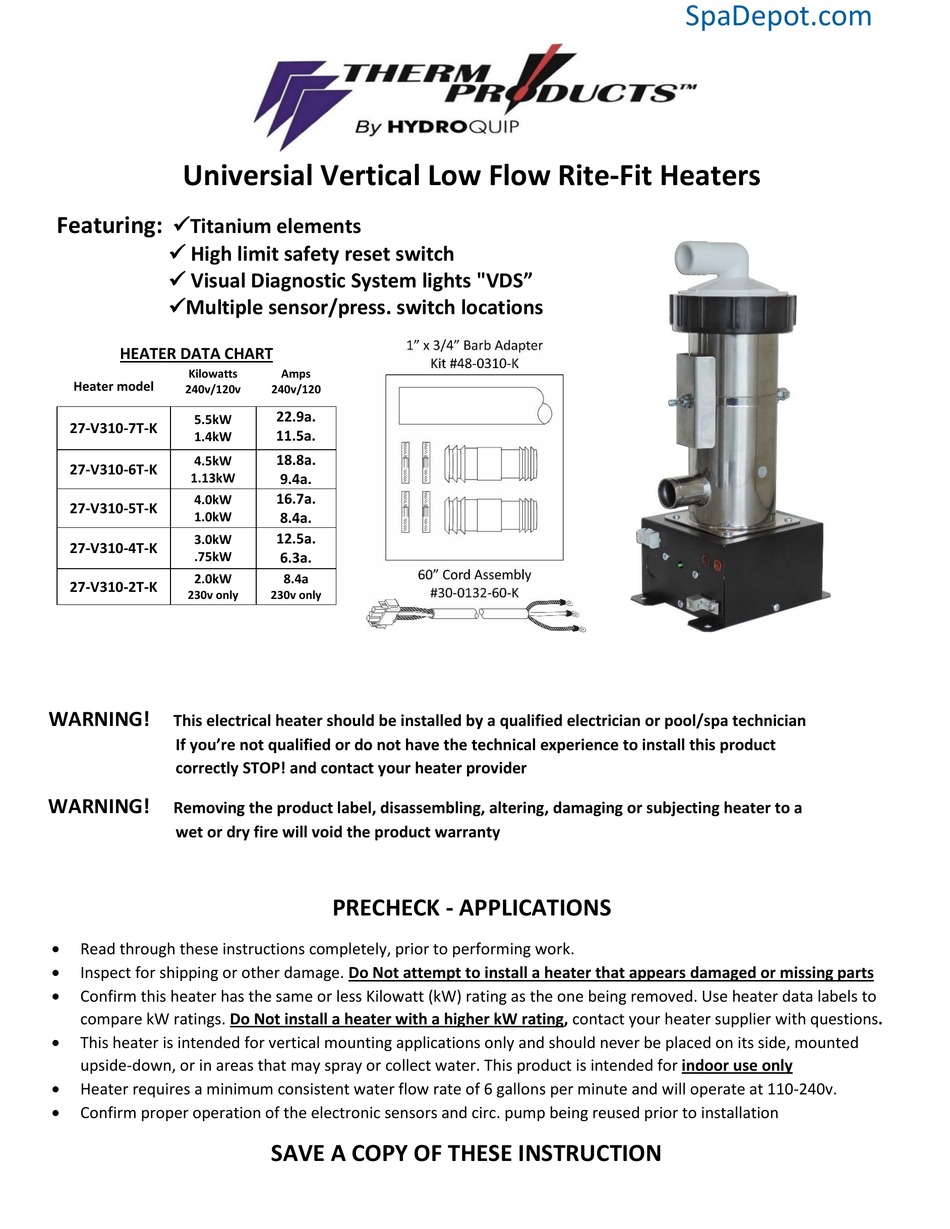

HydroQuip Therm Products 27-V310-7T-K Manual

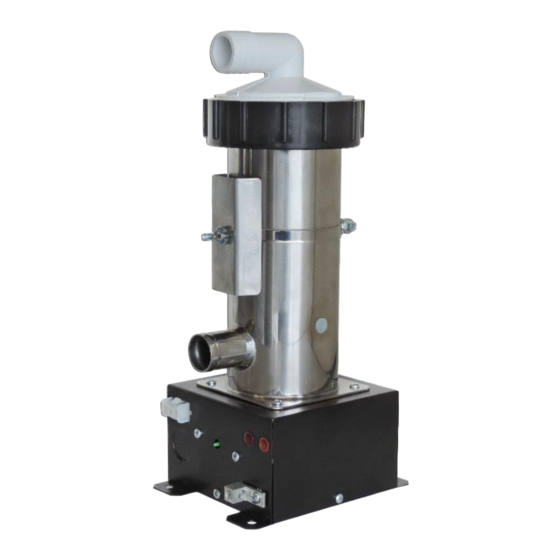

Universial Vertical Low Flow Rite-Fit Heaters
Titanium elements
Featuring:
 High limit safety reset switch
 Visual Diagnostic System lights "VDS"
Multiple sensor/press. switch locations

HEATER DATA CHART

Kilowatts
Heater model
240v/120v
5.5kW
27-V310-7T-K
1.4kW
4.5kW
27-V310-6T-K
1.13kW
4.0kW
27-V310-5T-K
1.0kW
3.0kW
27-V310-4T-K
.75kW
2.0kW
27-V310-2T-K
230v only


WARNING!

This electrical heater should be installed by a qualified electrician or pool/spa technician
If you're not qualified or do not have the technical experience to install this product
correctly STOP! and contact your heater provider
WARNING!
Removing the product label, disassembling, altering, damaging or subjecting heater to a
wet or dry fire will void the product warranty

Read through these instructions completely, prior to performing work.

Inspect for shipping or other damage. Do Not attempt to install a heater that appears damaged or missing parts

Confirm this heater has the same or less Kilowatt (kW) rating as the one being removed. Use heater data labels to
compare kW ratings. Do Not install a heater with a higher kW rating, contact your heater supplier with questions.

This heater is intended for vertical mounting applications only and should never be placed on its side, mounted
upside-down, or in areas that may spray or collect water. This product is intended for indoor use only

Heater requires a minimum consistent water flow rate of 6 gallons per minute and will operate at 110-240v.

Confirm proper operation of the electronic sensors and circ. pump being reused prior to installation
Amps
240v/120
22.9a.
11.5a.
18.8a.
9.4a.
16.7a.
8.4a.
12.5a.
6.3a.
8.4a
230v only

PRECHECK - APPLICATIONS

SAVE A COPY OF THESE INSTRUCTION
