Item #1001 509 809
Model SL-200-12A
USE AND CARE GUIDE
TRANSFORMER
Questions, problems, missing parts? Before returning to the store,
call HamptonBay Customer Service
8 a.m. - 7 p.m., EST, Monday Friday, 9 a.m. - 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM
THANK YOU
We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this transformer. We strive to continually create
quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs. Thank
you for choosing Hampton Bay!
Advertisement
Table of Contents
Related Manuals for HAMPTON BAY SL-200-12A
Summary of Contents for HAMPTON BAY SL-200-12A
- Page 1 THANK YOU We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this transformer. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs. Thank...
-
Page 2: Table Of Contents
Table of Contents Hardware Included ..............4 Table of Contents ............2 Safety Information ............2 Package Contents ..............4 Warranty ............3 Installation ..............5 What is Covered ..............3 Operation ..............8 What is Not Covered .............. 3 Troubleshooting ............ -
Page 3: Warranty
Warranty WHAT IS COVERED The manufacturer warrants this transformer to be free from defects in materials and workmanship for a period of two (2) years from date of purchase. This warranty applies only to the original consumer and only to products used in normal use and service. If this product is found to be defective, the manufacturer’s only obligation, and your exclusive remedy, is the repair or replacement of the product at the manufacturer’s discretion, provided that the product has not been damaged through misuse, abuse, accident, modifications, alterations, neglect or mishandling. -
Page 4: Pre-Installation
Pre-installation Use only CSA or UL approved low-voltage WARNING: cable. Failure to use at least 16 gauge minimum cable or install it as directed in these instructions may result in Risk of Fire or Electric Shock. Using large cable will ensure maximum light output. -
Page 5: Installation
Installation Connecting the Cable to the Preparing the Cable Transformer Being careful when splitting NOT to expose the copper wire, remove Lay the transformer on a flat, stable surface and insert the stripped the landscape wire insulation 1/2 in. from both wires and twist ends. end of one wire under the terminal clamping plate “COM”. - Page 6 Installation (continued) Placing Your Fixtures and Routing Attaching Your Fixtures the Cable Lay your fixtures (not included) out where you want to locate them. Turn the transformer on. Attach your fixtures to the cable to using Be sure they do not exceed the 200-watt rating of the transformer. cable connectors as shown.
- Page 7 Installation (continued) Mounting the Transformer Mounting the Photocell To mount directly to a wall surface use the included screws (AA) as Mount the photocell (B) bracket on a wall or other solid surface with shown, suitable for mounting within 12 in. to 48 in. (0.3 m to 1.2 m) the screws (BB) provided.
-
Page 8: Operation

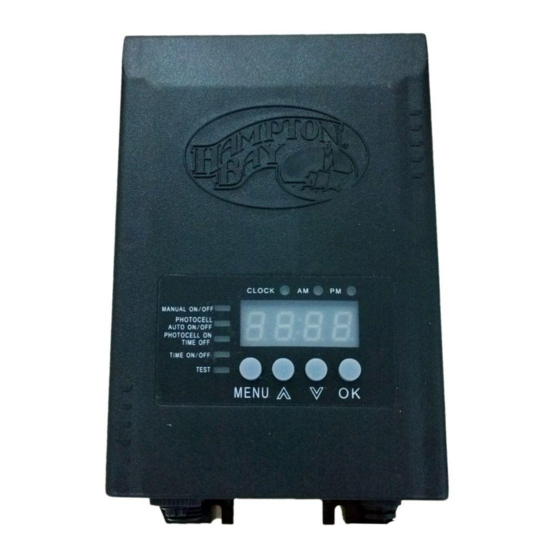

Operation Setting the Clock Operating in Manual Mode This setting allows you to set the clock to local time. This setting allows you to immediately turn the lights on and turn them a) Press MENU until CLOCK LED indicator is lit and the digit indicator off when you no longer need them. - Page 9 Operation (continued) Setting the TIME ON/OFF Using the TEST function This setting allows you to control the time the lights turn on and This setting allows you to test your landscape lighting after when they will go off. installation. a) Press MENU until the TIME ON/OFF LED indicator is lit and press Press MENU until the TEST LED indicator is lit and press OK.
-
Page 10: Troubleshooting
Troubleshooting Problem Probable Cause Check that the transformer power is on. Check if there is a loose connection at the transformer screw All of the lights fail to work terminal with the cable. Check that the power switch is not in an OFF setting. Check the connector to make sure the wire barbs have pierced the landscape cable. - Page 11 Questions, problems, missing parts? Before returning to the store, call HamptonBay Customer Service 8 a.m. - 7 p.m., EST, Monday Friday, 9 a.m. - 6 p.m., EST, Saturday 1-855-HD-HAMPTON HAMPTONBAY.COM Retain this manual for future use.
