Item #1012029952
Mode
ER-200-1215-AL
HAMPTON BAY
®
USE AND CARE GUIDE

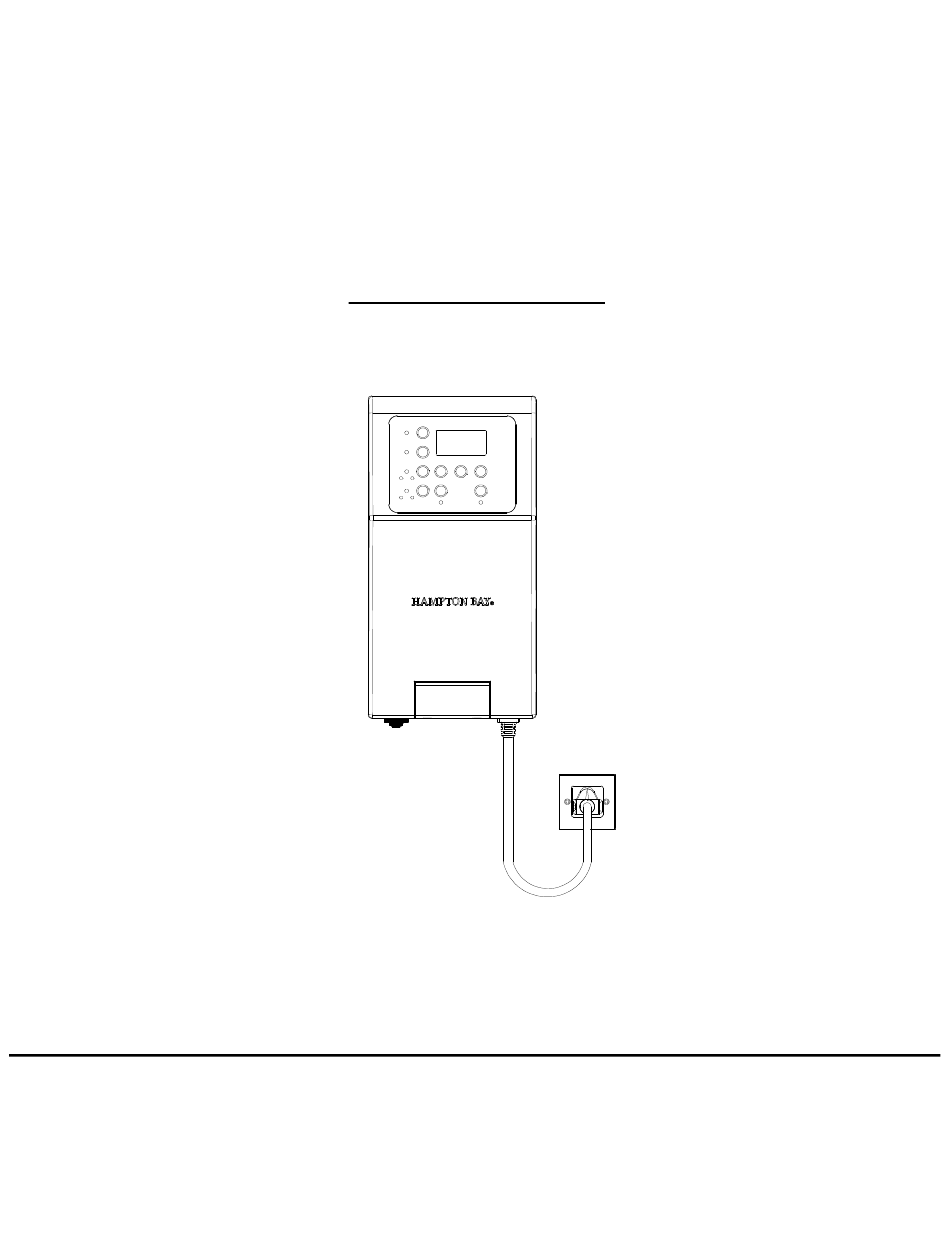

ASTRO LANDSCAPE TRANSFORMER
Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service
8 a.m. – 7 p.m. PST Monday – Friday and 9 a.m. – 6 p.m., PST, Saturday at
1-855-HD-HAMPTON(1-855-434-2678)
HAMPTONBAY.COM
THANK YOU
We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this transformer. We strive to continually
create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement
needs. Thank you for choosing Hampton Bay!
Advertisement
Table of Contents
Related Manuals for HAMPTON BAY ER-200-1215-AL
Summary of Contents for HAMPTON BAY ER-200-1215-AL
- Page 1 THANK YOU We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this transformer. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement...
-
Page 2: Table Of Contents
Table of Contents Table of Contents ..............2 Installation ................7 Safety Information ..............3 Function section introduction ..........10 Warranty .................. 4 Astronomical Region Correspondence Map ......11 Pre-installation ................5 Operation ................12 Tools Required ..............5 ............ 16 Troubleshooting Guide Hardware Included ............5 Cable Selection Chart ............17 Package Contents............... -
Page 3: Safety Information
Safety Information Proper mounting, wiring, grounding and servicing. WARNING: Make sure there is no wire insulation under the clamping plate. The secondary wiring is intended for shallow burial (less than 6 in. (152 mm).) Risk of fire, do not place insulation under terminal WARNING: Do not coil the cable around the plate. -
Page 4: Warranty
Warranty WHAT IS COVERED The manufacturer warrants this transformer to be free from defects in materials and workmanship for a period of two (2) years from date of purchase. This warranty applies only to the original consumer and only to products used in normal use and service. -
Page 5: Pre-Installation
Pre-installation TOOLS REQUIRED Wire Wire Phillips Hammer stripper cutter screwdriver HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity 4.8X30 Screw Wall Anchor HAMPTONBAY.COM (1-855-434-2678) Please contact 1-855-HD-HAMPTON for further assistance. -
Page 6: Package Contents
Pre-installation (continued) PACKAGE CONTENTS Part Description Quantity Transformer Mounting Template... -
Page 7: Installation
Installation Connecting the Cable to the Preparing the Cable Transformer □ □ Use caution when splitting to avoid exposing copper Lay the transformer (A) on a flat, stable surface and wire. open the terminal connector door flap. Insert the □ Remove 1/2 in. - Page 8 Installation (continued) Placing the Fixtures and Mounting the Transformer Routing the Cable □ □ Lay the fixtures (not included) in their desired Mount the transformer (A) directly to a wall surface locations. Be sure they do not exceed the 200-watt within 12 in.
- Page 9 Installation (continued) Protecting or Hiding the Attaching the Fixtures Cable □ Connectors (not included) as shown. Press the Once all fixtures are in place, the cable may be connector tight onto the cable until the prongs pierce covered with mulch or buried up to 6 in. (15 cm) deep. the cable insulation.
-
Page 10: Function Section Introduction
Function section introduction The 200W Astronomical Low Voltage transform allows for multi-volt output and setting up schedules for 2 independent zones. Scheduling can be set with specific on/off times, sunrise/sunset based on an astronomical clock, or on at sunset and off at a specific time. Functions Buttons □... -
Page 11: Astronomical Region Correspondence Map
Astronomical Region Correspondence Map Time Zone State Washington Oregon、Nevada California Montana、North Dakota、South Dakota Wyoming、Idaho、Utah、Colorado Arizona、New Mexico Minnesota Nebraska、Iowa、Kansas、Missouri Kentucky、Oklahoma、Arkansas、Tennessee、Texas、Louisiana、Mississippi、Alabama Wisconsin、New Hampshire、Vermont、Maine Illinois、 Michigan、New York、 Massachusetts、Connecticut、Rhode island、Pennsylvania、New jersey、Ohio、West Virginia、Maryland、Delaware、Virginia、Indiana、Delaware North Carolina、South Carolina、Georgia、Florida NOTE: Puerto Rico Hawaii and Alaska are not within the optional range of astronomical function settings. HAMPTONBAY.COM (1-855-434-2678) Please contact 1-855-HD-HAMPTON... -
Page 12: Operation
Operation Manual Mode Set the Current Time □ □ To test out your wiring and to make sure all lights are Press the CLOCK Function button and the green light functioning, even if daytime, make sure no functions will light up. □... -
Page 13: Voltage Selection
Operation(continued) Voltage Selection Program Time ON/OFF □ □ Press the SWITCH 12V/15V Function button and the If you wish to only use sunrise / sunset skip to step 5. □ green light will light up. Press the TIME ON/OFF Function button and the green □... - Page 14 Operation (continued) Program Time ON/OFF Program Sunrise/Sunset(Astro) Time ON/OFF (continued) □ □ With the TIME ON/OFF and Zone(s) you want to program lit Press the ASTRO Function button and the green press OK. ON will display and the hour as well as AM/PM light will light up.
-
Page 15: Factory Reset
Operation(continued) Program Sunrise/Sunset(Astro) Activating Zones Time ON/OFF(continued) □ □ The Zone(s) ASTRO time is now set and the current Once each Zone is programmed with TIME ON/OFF or time will be displayed as well as the time zone and area ASTRO you must make sure the corresponding blue light number you selected. -
Page 16: Troubleshooting Guide
Troubleshooting Guide Problem Possible Cause □ Check that the transformer power is on. □ Check if there is a loose connection at the transformer screw terminal with the cable. □ Check that the power switch is not in an OFF setting. □... -
Page 17: Cable Selection Chart
Cable Selection Chart 12 VOLT Cable Length Total Fixture Wattage 0 – 50 ft. 51 – 100 ft. 101 – 150 ft. 0 – 60 Watts 16 AWG 16 AWG 14 AWG 61 – 120 Watts 16 AWG 14 AWG 12 AWG 121 –... - Page 18 HAMPTON BAY ® Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service 8 a.m. – 7 p.m. PST Monday – Friday and 9 a.m. – 6 p.m., PST, Saturday at 1-855-HD-HAMPTON(1-855-434-2678) HAMPTONBAY.COM Retain this manual for future use.
