Summary of Contents for Metos Econo BD-600W

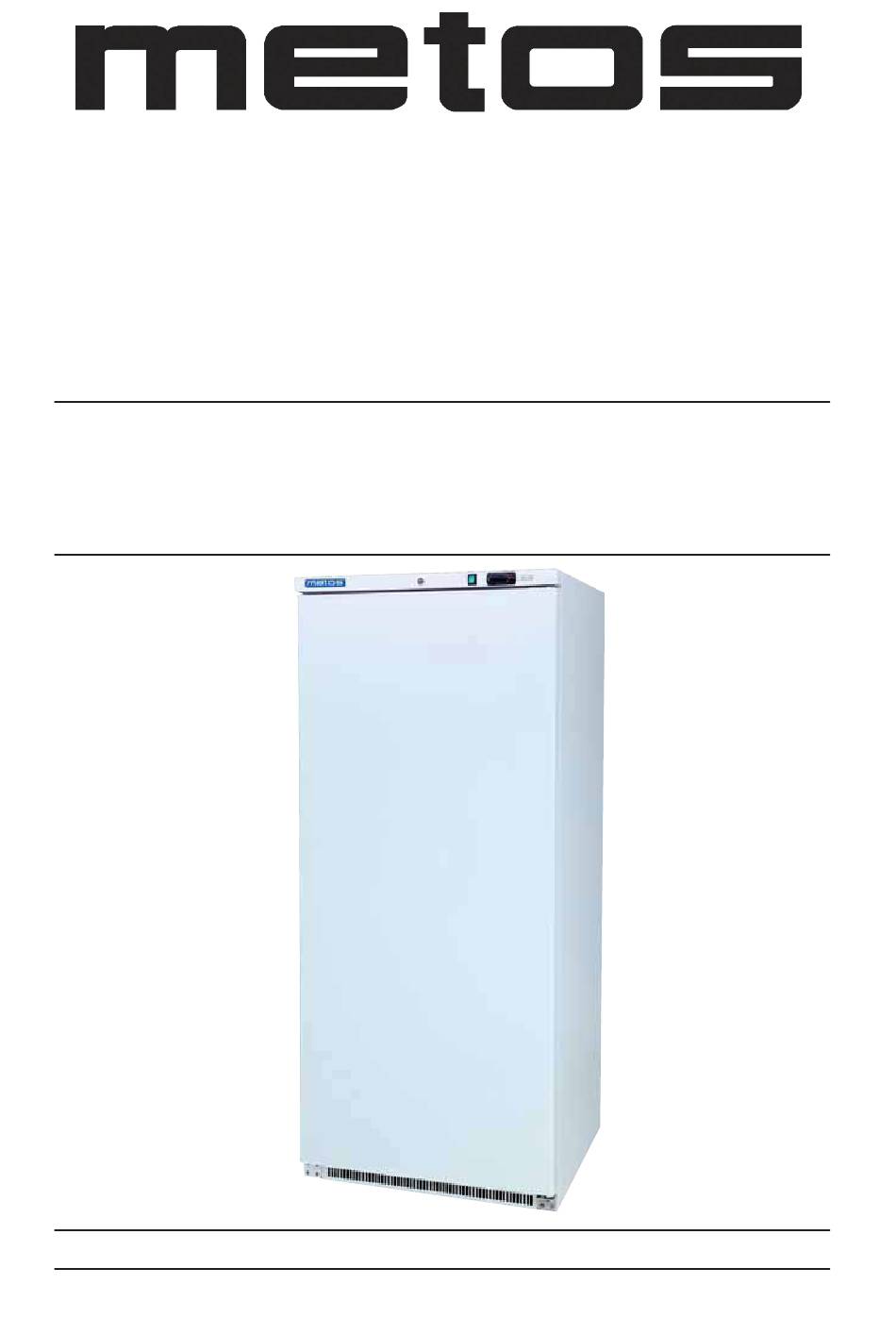

- Page 1 FREEZER Metos Econo BD-600W 4249051 Installation and Operation Manual 28.09.2012...
-
Page 2: Table Of Contents
TABLE OF CONTENTS General ..................2 1.1 Intended use ....................2 1.2 Controls at reception ...................2 1.3 Handling .....................2 1.4 Unpacking ....................3 1.5 Disposal of the appliance ................3 Installa tion ................. 3 2.1 Positioning ....................3 2.2 Preliminary electrical checks ..............4 2.3 Start-up .......................4 Use.................... -
Page 3: General
Freezer Metos Econo BD-600W 28.09.2012 General Please read the introductions in this manual as it contains important information regarding proper, effi cient and safe use and mainentance of the appliance. Keep this manual in a safe place for the eventual use by other operators of the applian- The installation of this appliance must be carried out in the accordance with the manufacturers instructions and following local regulations. -
Page 4: Unpacking
Freezer Metos Econo BD-600W 28.09.2012 1.4 Unpacking Unpack the appliance and check for visible damages. Packing materials (plastic bags, polystyrene foam, nails, etc.) should be kept out of children’s reach as they are potential sources of hazard, and they should be properly re- cycled in compliance with local regulations in force. -
Page 5: Preliminary Electrical Checks
Freezer Metos Econo BD-600W 28.09.2012 If the appliance has been moved, wait for a while before switching it on again. In particular, if it was not handled vertically, you need to wait at least 2 hours. Remove the plastic protection from the external surfaces. Wash the inside part with luke warm water and mild soap. -
Page 6: Construction
Freezer Metos Econo BD-600W 28.09.2012 Construction UPPER HINGE EVAPORATOR BOTTOM HINGE ASSISTANT CONDENSER SELF-CLOSING HINGE RETURN AIR TUBE ADJUSTABLE FEET CABINET JUNCTION BOX EVAPORATOR COVER SUBASSEMBLY CASTOR COMPRESSOR LOCK THERMOSTAT SAFTY COVER OF COMPREESOR UNIT SWITCH CONTROL PANEL CONDENSER FAN MOTOR... -
Page 7: Temperature Controller
Freezer Metos Econo BD-600W 28.09.2012 temperature controller 3.2.1 Setting the set point (desired temperature) • Press SET for 1s,the set value will start fl ashing after a few moments Increase or decrease the value using UP or DOWN; •Press SET to confi rm the new value. -
Page 8: Cleaning And Maintenance
Freezer Metos Econo BD-600W 28.09.2012 Cleaning and Maintenance Always disconnect the appliance from the mains before any cleaning and maintenance. The machine must not be cleaned with a pressure washer. Do not spray water direct on appliance. Avoid using excess amounts of water. Water should not get in contact with electric components. -
Page 9: Technical Information
Freezer Metos Econo BD-600W 28.09.2012 Technical information BD-600W Volum 600 l Outer messurements 740 x 870 x 2050 mm WxDxH Temperature ≤-18°C Current 230V /1 /50Hz Energy consumption 4.36 (kW.h/24h) Power 297 W Refrigerant R134a Amount 160g Refrigeration and wiring disgrams... -
Page 10: Troubleshooting
Freezer Metos Econo BD-600W 28.09.2012 Troubleshooting In case of malfunction, review the following list to fi nd out if it is possible to put the appliance in order without a service call. If the fault presists after making the mentioned checks, call service.
