Summary of Contents for Horizon Hobby Bind-N-Fly AS3X UMX A-10

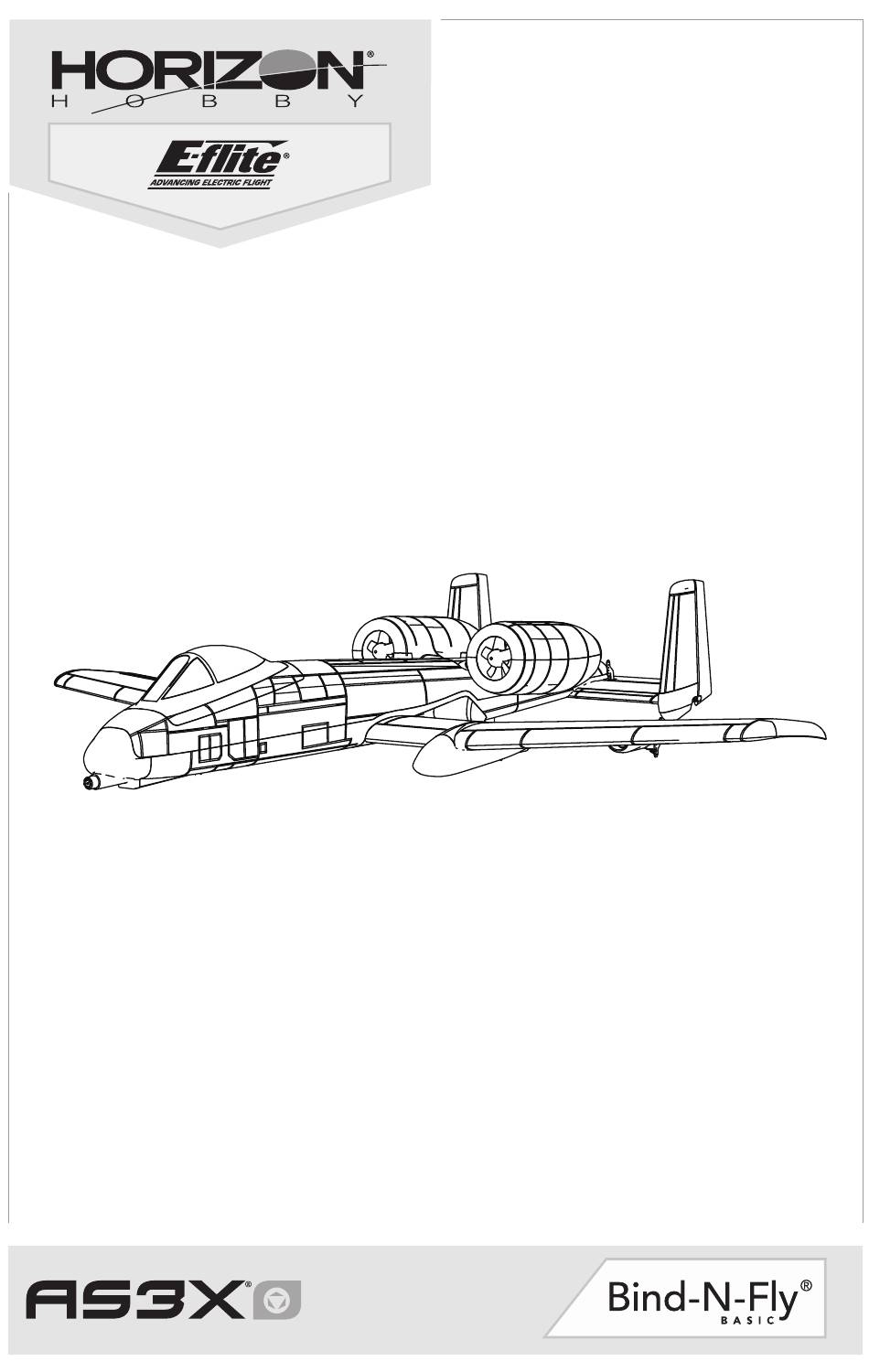

- Page 1 A-10 ™ Instruction Manual Bedienungsanleitung Manuel d’utilisation Manuale di Istruzioni...
- Page 2 Do not use with incompatible components or alter this product in any way outside of the instructions provided by Horizon Hobby, LLC. This manual contains instructions for safety, operation and maintenance. It is essential to read and follow all the instructions and warnings in the manual, prior to assembly, setup or use, in order to operate correctly and avoid damage or serious injury.
-
Page 3: Table Of Contents
Table of Contents Transmitter and Receiver Binding ......4 Motor Service .............11 Low Voltage Cutoff (LVC) ........4 Post Flight Checklist ...........12 ESC/Receiver Arming, Battery Installation and Troubleshooting Guide ........12 Center of Gravity ...........5 Troubleshooting Guide (Continued) ......13 Control Centering ..........6 Limited Warranty ..........13 Factory Control Horn Settings........6 Warranty and Service Contact Information ..15 Dual Rates and Expos ...........6... -
Page 4: Transmitter And Receiver Binding
Transmitter and Receiver Binding For a list of compatible DSM2/DSMX transmitters, please visit www.bindnfly.com Binding Procedure CAUTION: When using a Futaba transmitter with a Spektrum DSM module, you must reverse the ® throttle channel and rebind. Refer to your Spektrum module manual for binding and failsafe instructions. Refer to your Futaba transmitter manual for instructions on reversing the throttle channel. -
Page 5: Esc/Receiver Arming, Battery Installation And Center Of Gravity
ESC/Receiver Arming, Battery Installation and Center of Gravity NOTICE: Always keep material or debris away from the intake. When armed, the rotor will turn in response to throttle movement and could ingest in any loose objects. Arming the ESC/receiver also occurs after binding as previously described, but subsequent connection of a flight battery requires the following steps. -
Page 6: Control Centering
Control Centering Before the first flights, or in the event of an accident, make sure control surfaces are centered when the transmitter controls and trims are neutral. The transmitter sub-trim must be set to zero. Adjust the linkages mechanically if the control surfaces are not centered. Use of the transmitter sub-trims may not correctly center the aircraft control surfaces due to the mechanical limits of linear servos. -
Page 7: Landing Gear Removal
Landing Gear Removal Carefully pull the gear straight out of the retainer clip that secures it into the fuselage. When needed, assemble in reverse order. When the landing gear is reinstalled, make sure the nose gear is angled forward as shown. -
Page 8: Control Direction Test
Control Direction Test You should bind your aircraft and transmitter Transmitter Aircraft Reaction before doing these tests. Command Move the controls on the transmitter to Down make sure the aircraft control surfaces Elevator move correctly and in the proper direction. Make sure the tail linkages move freely and that paint or decals are not adhered to them. -
Page 9: As3X Direction Test
AS3X Direction Test You should bind your aircraft and Aircraft AS3X Reaction transmitter before doing these tests. movement Move the controls on the transmitter to make sure the aircraft control surfaces move correctly and in the proper direction. Make sure the tail linkages move freely and that paint or decals are not adhered to them. -
Page 10: Flying Tips And Repairs
Flying Tips and Repairs Range Check your Radio System aircraft, so control is generated by airspeed rather than air from a propeller moving over the control After final assembly, range check the radio system surfaces. with the aircraft. Refer to your specific transmitter Takeoff instruction manual for range test information. -
Page 11: Motor Service
Motor Service Disassembly CAUTION: DO NOT handle the rotor or motor while the flight battery is connected. Personal injury could result. 1. The lower half of the nacelle hatch is secured to the top half using glue and clear tape. Carefully cut the clear tape and follow the seam with a knife to cut the glue and remove the bottom half of the nacelle. -
Page 12: Post Flight Checklist
Post Flight Checklist 1. Disconnect the flight battery from the ESC Store the flight battery apart from the aircraft (Required for safety and battery life). and monitor the battery charge. 2. Power OFF the transmitter. Make note of the flight conditions and flight plan results, planning for future flights. -
Page 13: Troubleshooting Guide (Continued)
Limited Warranty What this Warranty Covers ALL IMPLIED WARRANTIES, INCLUDING, WITHOUT Horizon Hobby, LLC, (Horizon) warrants to the original LIMITATION, THE IMPLIED WARRANTIES OF NON- purchaser that the product purchased (the “Product”) INFRINGEMENT, MERCHANTABILITY AND FITNESS will be free from defects in materials and workmanship FOR A PARTICULAR PURPOSE. - Page 14 Limitation of Liability Request is available at http://www.horizonhobby.com/ HORIZON SHALL NOT BE LIABLE FOR SPECIAL, content/service-center_render-service-center. If you INDIRECT, INCIDENTAL CONSEQUENTIAL do not have internet access, please contact Horizon DAMAGES, LOSS OF PROFITS OR PRODUCTION OR Product Support to obtain a RMA number along with COMMERCIAL LOSS IN ANY WAY, REGARDLESS OF instructions for submitting your product for service.
-
Page 15: Warranty And Service Contact Information
Hanskampring 9 European Union D 22885 Barsbüttel, Germany Sales: Horizon Hobby GmbH +49 (0) 4121 2655 100 IC Information IC ID: 6157A-EFLAS6410NBLT Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. -
Page 16: Compliance Information For The European Union
Instructions for disposal EFL UMX A-10 BNF Basic (EFLU3750) of WEEE by users in the EU Compliance Statement: Horizon Hobby, LLC hereby declares European Union that this product is in compliance with the essential This product must not be disposed of requirements and other relevant provisions of the with other waste. -
Page 17: Replacement Parts
Replacement Parts – Ersatzteile – Pièces de rechange – Ricambi Part # • Nummer Description Beschreibung Description Descrizione Numéro • Codice DSMX 4-Kanal AS3X Récepteur DSMX DSMX 4-Ch AS3X Ricevente AS3X a Empfänger mit 4 voies AS3X avec EFLAS6410NBLT receiver w/Twin 4 canali DSMX con bürstenlosem doppeltem double contrôleur... -
Page 18: Optional Parts And Accessories
Optional Parts and Accessories Optionale Bauteile und Zubehörteile Pièces optionnelles et accessoires Parti opzionali e accessori Part # • Nummer Description Beschreibung Description Descrizione Numéro • Codice Charger Lead with E-flite Ladekabel m/ Câble de charge avec Cavo di carica con EFLA230 JST Female JST Buchse... - Page 19 © 2017 Horizon Hobby, LLC. E-flite, AS3X, UMX, DSM, DSM2, DSMX, ModelMatch, Bind-N-Fly, Celectra and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, LLC. The Spektrum trademark is used with permission of Bachmann Industries, Inc. Futaba is a registered trademark of Futaba Denshi Kogyo Kabushiki Kaisha Corporation of Japan.
