Prestige APSSECRS RF Owner's Manual

Prestige APSSECRS RF Owner's Manual

Upgrade kit

Advertisement

Quick Links

Owner's Guide
For Models:
PE2LEDZ
PE1M2LEDZ
APSSECRS
RF Upgrade Kit
IMPORTANT NOTE: The operation of the Security and Convenience System as described in this manual is
applicable to most vehicles. However, due to the configuration of some vehicles, some functions AND/OR
SAFETY PRECAUTIONS may not apply. Please see your installing dealer for more information.
2018 Voxx Electronics Corporation. All rights reserved.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the APSSECRS RF and is the answer not in the manual?

Questions and answers

Summary of Contents for Prestige APSSECRS RF

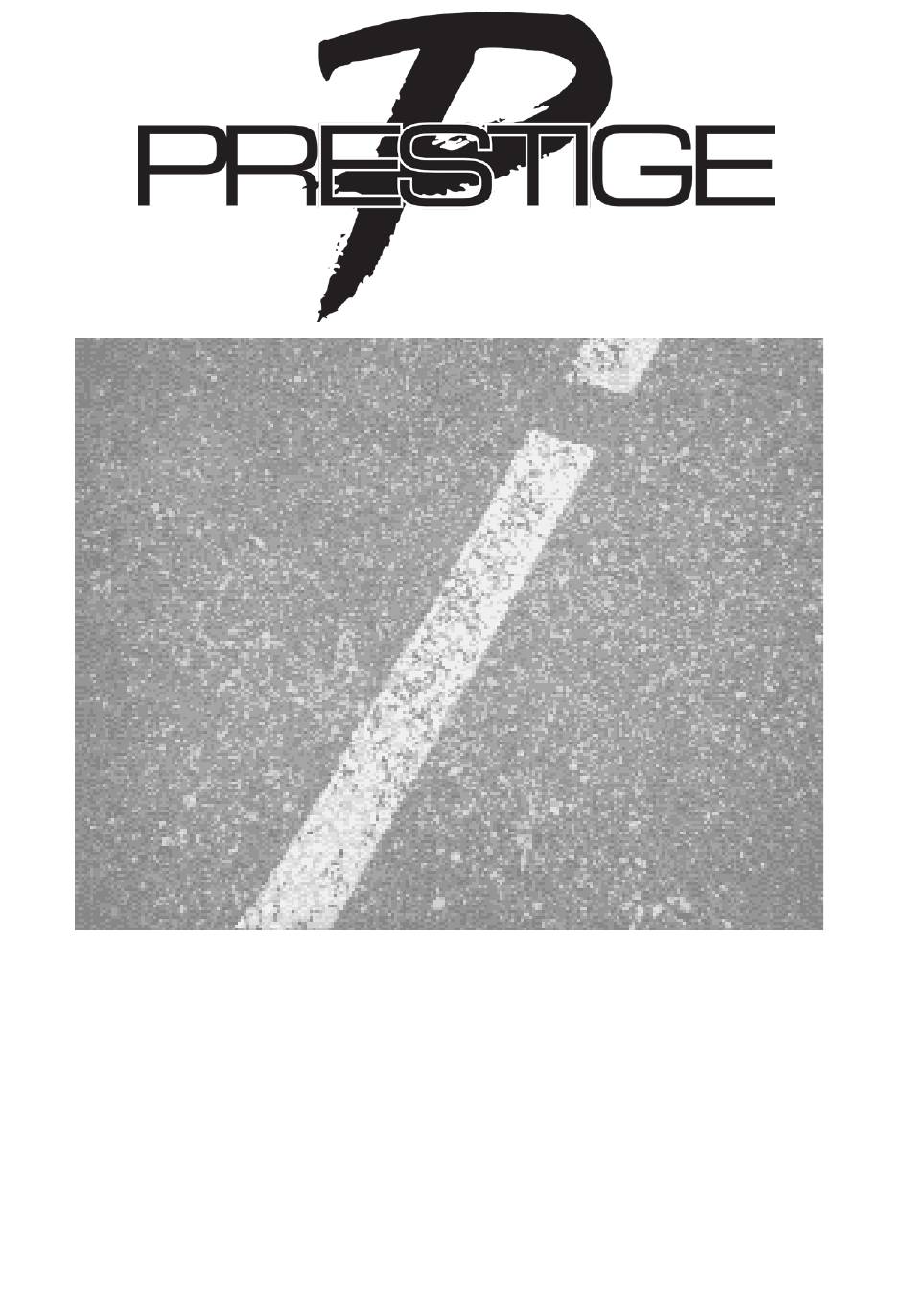

  • Page 1 Owner’s Guide For Models: PE2LEDZ PE1M2LEDZ APSSECRS RF Upgrade Kit IMPORTANT NOTE: The operation of the Security and Convenience System as described in this manual is applicable to most vehicles. However, due to the configuration of some vehicles, some functions AND/OR SAFETY PRECAUTIONS may not apply.
  • Page 2: Table Of Contents

    Table of Contents Using Your Remote Control ..............3 Arming the Security System .............. 3 Disarming the Security System ............3 Two Stage Door Unlock (optional) ............. 3 Activating Trunk Release (optional) ........... 3 Activating AUX Output (optional) ............3 Using the Personal Protection Alarm ..........
  • Page 3: Using Your Remote Control

    Using Your Remote Control Arming the Security System To arm the system, exit the vehicle, close all doors, then press the button. The parking lights will flash 1 time, indicating the system is armed, has locked the doors (if equipped and connected) and activated the starter disable feature. The LED status indicator will blink steadily, once per second.
  • Page 4: Bypassing The Shock Sensor

    Bypassing The Shock Sensor The included security shock sensor has two stages of detection, Warn-Away and Full Trigger. To arm the system and shock sensor press the button. The system will beep and the lights wil flash 1 time. To Arm the system and bypass the Warn-Away detection stage press the button 2 times within 5 seconds.
  • Page 5: Valet Mode

    Valet Mode When valet mode is activated the status LED will light solid, and all security and remote start functions will be disabled. To enter or exit valet mode simply follow the steps outlined below: Turn the vehicle’s ignition ON. Push and hold the programming/valet button.
  • Page 6 Custom Code Valet Override (Optional) Unlike the default Valet Override, Custom Code Override is a user personalized code that offers a higher lever of security. If the user chooses to use Custom Code Override, Feature Bank 2 ; Feature 9 must be programmed for “Custom Code”. Once the option has been selected the code must be programmed.
  • Page 7: Using Your Remote Vehicle Starter

    Using Your Remote Starter Remote Starting Your Vehicle To activate the remote start function, press and release the button 2 times within 2 seconds. The system will sound, the parking lights will flash 1 time and the system will check the vehicle to ensure it is safe to start. If all safety parameters are correct, the vehicle will start.
  • Page 8: Remote Start Ready Mode

    Remote Start Ready Mode must be enabled if your vehicle is equipped with a manual transmission. Remote Start Ready Mode - Manual Transmission Vehicles Only To activate the remote start function, the system must first be in Remote Start Ready Mode.
  • Page 9: Cancelling Remote Start Ready Mode

    Cancelling Remote Start Ready Mode - Manual Transmission Vehicles Only The system will exit remote start ready mode if any of the following occur: Open any door Open the hood or trunk (if connected) Press the brake Release the parking brake Turn the ignition ON Using the “Quick-stop”...
  • Page 10: Turbo Timer Mode (Optional)

    Turbo Timer (Optional) This option will keep the engine running to allow the vehicle’s turbo to properly cool down before shutting the engine off. To engage the Turbo Timer feature: With the vehicle running via the ignition key and your foot off of the brake pedal.
  • Page 11: Status Led, Light Flashes And Siren/Horn Indications

    Status LED, Light Flashes, and Siren/Horn Indications Status LED Flash Indications LED Flashes Function Disarmed Slow Flash Armed Fast Flash Passive Arming Countdown ON (Solid) Valet Mode 1 Flash / Disarmed Zone 1 Trigger, Shock Sensor 2 Flashes / Disarmed Zone 2 Trigger, Trunk / Hood 3 Flashes / Disarmed Zone 3 Trigger, Door...
  • Page 12 2 Way Remote Control Notifications FUNCTION BEEPS / LED FLASHES Lock 1 Beep / Flash Unlock 2 Beeps / Flashes Trunk Release 2 Beeps / Flashes Remote Start Activation RS Activation Melody Confirm Remote Start 4 Beeps / Flashes Remote Start Running 1 Flash per 5 seconds for duration run time Remote Start Shutdown RS Shutdown Melody Alarm Trigger Event...
  • Page 13: Replacing Remote Control Batteries

    Replacing Remote Control Batteries 5 Button Remote Control - Model 185SP The CR2032 battery inside each remote control should last approximately 1 year under normal use. When the batteries become weak you will notice the remote control range (the distance from the vehicle the remote control will work) deteriorate and the small LED on the remote control will dim.
  • Page 14: Warranty Information

    LIMITED LIFETIME WARRANTY Applies to Prestige Series Control Modules, Sirens, Sensors, and Relays. Voxx Electronics Corporation (the Company) warrants to the original purchaser of this product that should this product or any part thereof, (other than transmitters) under nor- mal use and conditions, be proven defective in material or workmanship during the life-...
  • Page 15 Voxx Electronics Corporation. Customer Service 1-800-225-6074 WWW.VOXXELECTRONICS.COM FCC COMPLIANCE This device complies with Part 15 of the FCC rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2.

This manual is also suitable for:

Pe1m2ledzPe2ledz

Table of Contents
