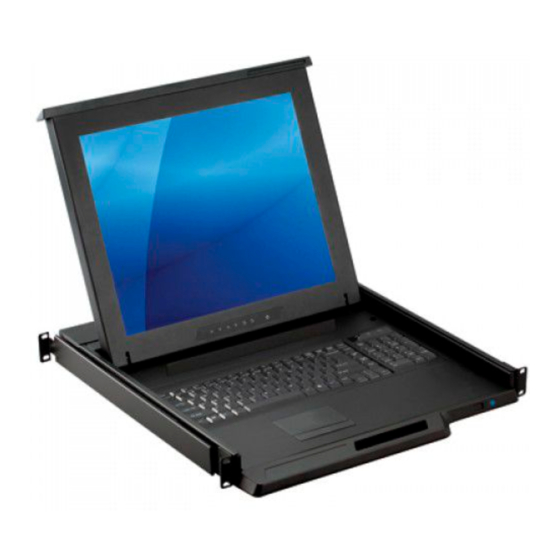

Acnodes MKDH8170U User Manual

17/19" 1280x1024 lcd keyboard drawer 1000-nit high brightness lcd 8 port kvm switch

Hide thumbs

Table Of Contents

Quick Links

Download this manual

For l a stest product information, please v i s it Acnodes' website at www.acnodes.com

14628 Central Ave. Chino, CA 91710

Tel: 909. 597. 7588

Fax: 909. 597. 1939

Table of Contents

Need help?

Do you have a question about the MKDH8170U and is the answer not in the manual?

Questions and answers

Summary of Contents for Acnodes MKDH8170U

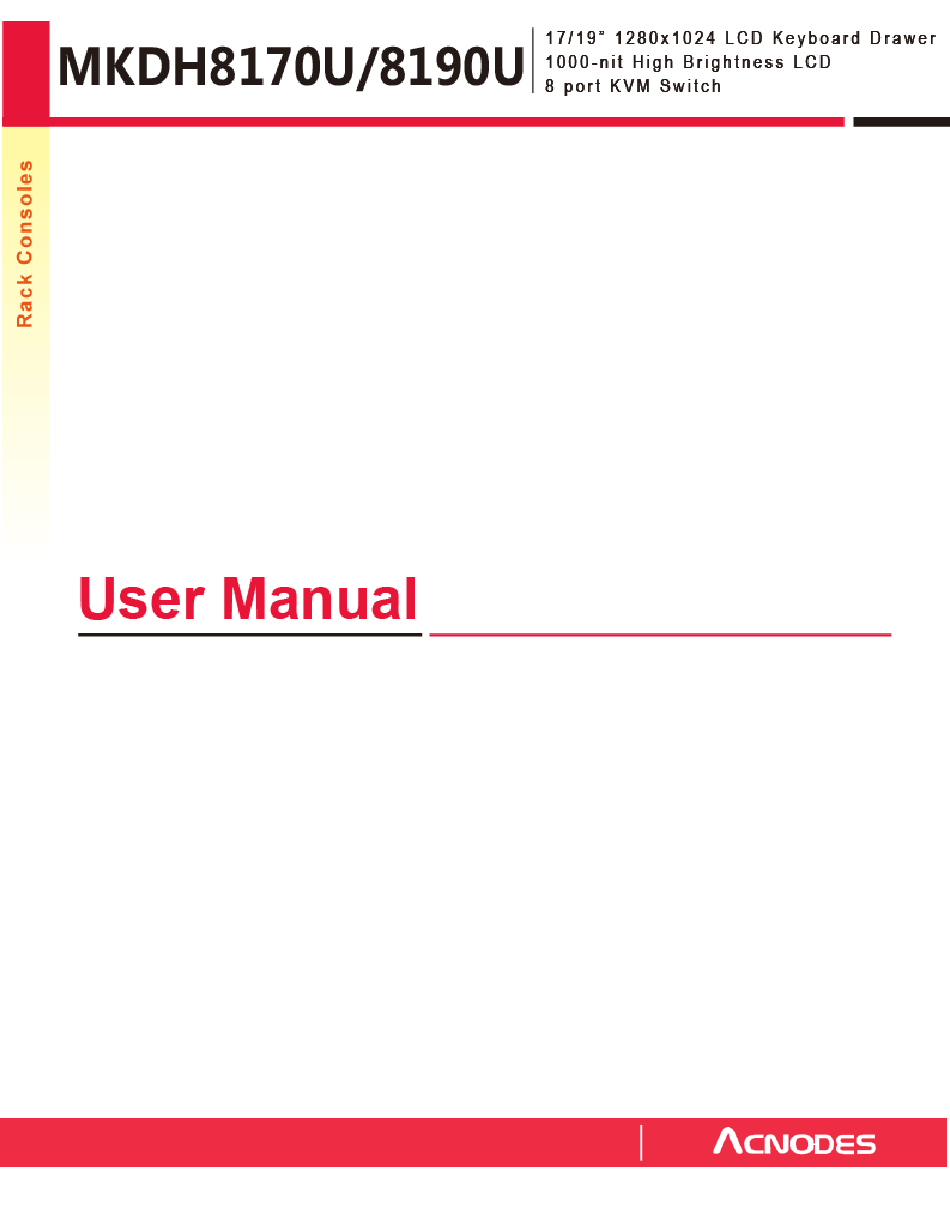

Page 1 All rights reserved. Product description and product specifications are subject to change without notice. For l a stest product information, please v i s it Acnodes’ website at www.acnodes.com 14628 Central Ave. Chino, CA 91710 Tel: 909. 597. 7588 Fax: 909. 597. 1939...
Page 2 Legal Information First English printing, October 2002 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
Page 3: Table Of Contents
Contents < Part. 2 > MKDH8170U/8190U Package Content Structure Diagram & Dimension P.1 - 2 Installation P.3 - 5 < Part. 2 > Specifications / OSD Product Specifications P.6 - 7 Keyboard / Mouse Specifications On-screen Display Operation ( OSD ) P.9 - 10...
Page 4 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
Page 5: Package Content
< Part 1 > < 1.1 > Package Content MKDH 8170U/8190U unit X 1 - 6ft Combo KVM cable X 1 - Power cord X 1 - M6 screw, cage nut & cup wash er X 8 < 1.2 > Structure Diagram LCD interchange able mo dule kit Keyboard interchangeable module kit Installation Slides...
Page 6 Weight Weight 441.6 x 580 x 44 mm 590 x 823 x 140 mm 13 kg 18.5 kg MKDH8170U 17.4 x 22.8 x 1.73" 23.2 x 32.4 x 5.5” 29 lb 41 lb 441.6 x 620 x 44 mm 590 x 823 x 140 mm 14 kg 19.5 kg...
Page 7: Installation
< 1.3 > Installation - How to install Installation Slides Step ¦ Insert the left and right rear mounting brackets into the LCD c onsole drawer. Step ¦ Measure the depth of the front and rear mounting rails. ¦ Align each rear mounting bracket to a suitable length. Step Complete the installation ¦...
Page 8 < 1.3 > Installation - How to install 2 post rack brackets Step ¦ Release front mounting ears before applying 2 post r ac k brackets. ¦ Insert rear m ounting brack ets into the LCD console drawer. Opt ion Model : MB-751-12 Step ¦...
Page 9 < 1.3 > Installation- How to use the drawer ¦ Hold the handle and slide out the drawer. ¦ Flip up the LCD to a suitable angle. ¦ Operate the LCD cons ole drawer.
Page 10: Product Specifications
< Part 2 > < 2.1 > Product Specifications MKDH8170U KDH8190U Panel Panel Size ( diagonal ) 17-inch TFT color LCD 19-inch TFT color LCD Display pix el ( dots x lines ) 1280 x 1024 1280 x 1024 Brightness ( typ. )
Page 11 Regulatory Safety Approval FCC & CE Physical MKDH8170U KDH8190U Specification Product ( W x D x H ) 441.6 x 580 x 44 m m 441.6 x 620 x 44 mm 17.4 x 22.8 x 1.73 inch 17.4 x 24.4 x 1.73 inch...
Page 12: Keyboard / Mouse Specifications
< 2.2 > Keyboard / Mouse Specifications G keyboard integrated with touchpad G keyboard integrated with tr ackball Key force 55 ± 5g Travelling distance 3 ± 0.3m m Switch life > 10 million life cycle time Soft ware support MS W indows 7 / 2008 / 2003 / 2000 / XP / ME / 98 / DOC Linux / Mac Supporting layouts...
Page 13: On-Screen Display Operation ( Osd )
< 2.3 > On-screen Display Operation ( OSD ) M embrane Switch Funct ion Turn the monitor on or off Display the OSD menu Act as an Enter key to select screen setting options Scroll through menu options and adjust the displayed co ntrol Exit t he OSD screen Go back to the previous on-screen sub-men u o r...
Page 14 < 2.3 > On-screen Display Operation ( OSD ) OSD C onfiguration Page Image: for the brightness, contrast, color temp , red, green, and blue Geometry: for the auto adjust, H position, V position, phase and clock Video: for the colour, tint, sharpness, noise reduction, DCDi and TV Setup Audio: for volume, bass, treble, balance, AV L and mute Misc:...
Page 15: Part. 3 > Options
< Part 3 > < 3.1 > Options : - Audio ( 3.5mm audio jack s for au dio in & o ut, and 2W + 2W spea kers )
Page 16: Kvm
< 3.2 > Options : DC Power Model Input r ating Input voltage: 24-Volt 48-Volt Input ra nge : 18 ~ 36V 36 ~ 75V Input current - No load 50 m A 50 mA - Full load 4880 mA 2442 mA Output rating Output voltage:...

This manual is also suitable for:

Mkdh8190u
