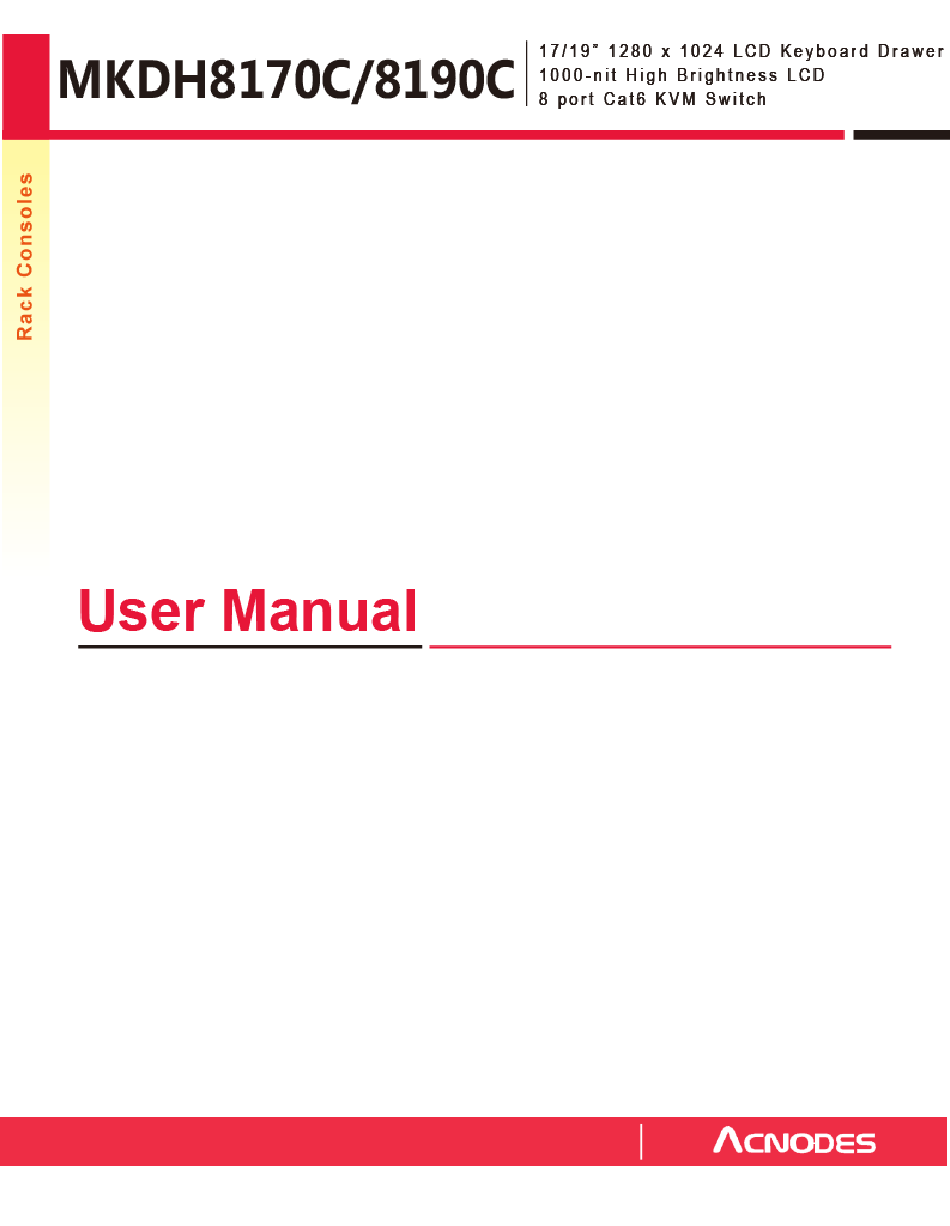

- Page 1 All rights reserved. Product description and product specifications are subject to change without notice. For l a stest product information, please v i s it Acnodes’ website at www.acnodes.com 14628 Central Ave. Chino, CA 91710 Tel: 909. 597. 7588 Fax: 909. 597. 1939...
- Page 2 Legal Information First English printing, October 2002 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
- Page 3 On-screen Display Operation ( OSD ) P.9 - 10 < Part. 3 > Options P.11 Audio P.12 48V, 24V or 12VDC power < Part. 4 > KVM Integration http://www.acnodes.com/files/downloads/CKVM-UM.pdf Combo Local Remote 8-port 16-port 32-port Cat6 KVM KCP802 KCP1602 KCP3202...
- Page 4 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
- Page 5 < Part 1 > < 1.1 > Package Content MKDH 8170C/8190C unit X 1 - 6ft Combo KVM cable X 1 - Power cord X 1 - M6 screw, cage nut & cup wash er X 8 < 1.2 > Structure Diagram LCD interchange able mo dule kit Keyboard interchangeable module kit Installation Slides...
- Page 6 23.2 x 32.4 x 5.5” 29 lb 41 lb 441.6 x 620 x 44 mm 590 x 823 x 140 mm 14 kg 19.5 kg MKDH8190C 17.4 x 24.4 x 1.73" 23.2 x 32.4 x 5.5” 31 lb 43 lb...
- Page 7 < 1.3 > Installation - How to install Installation Slides Step ¦ Insert the left and right rear mounting brackets into the LCD c onsole drawer. Step ¦ Measure the depth of the front and rear mounting rails. ¦ Align each rear mounting bracket to a suitable length. Step Complete the installation ¦...
- Page 8 < 1.3 > Installation - How to install 2 post rack brackets Step ¦ Release front mounting ears before applying 2 post r ac k brackets. ¦ Insert rear m ounting brack ets into the LCD console drawer. Opt ion Model : MB-751-12 Step ¦...
- Page 9 < 1.3 > Installation- How to use the drawer ¦ Hold the handle and slide out the drawer. ¦ Flip up the LCD to a suitable angle. ¦ Operate the LCD cons ole drawer.
- Page 10 < Part 2 > < 2.1 > Product Specifications MKDH8170C KDH8190C Panel Panel Size ( diagonal ) 17-inch TFT color LCD 19-inch TFT color LCD Display pix el ( dots x lines ) 1280 x 1024 1280 x 1024 Brightness ( typ. ) 1000 1000 Contras t Ratio ( typ.
- Page 11 Regulatory Safety Approval FCC & CE Physical MKDH8170C KDH8190C Specification Product ( W x D x H ) 441.6 x 580 x 44 m m 441.6 x 620 x 44 mm 17.4 x 22.8 x 1.73 inch 17.4 x 24.4 x 1.73 inch Packing ( W x D x H ) 590 x 823 x 140 mm 590 x 823 x 140 mm...
- Page 12 < 2.2 > Keyboard / Mouse Specifications G keyboard integrated with touchpad G keyboard integrated with tr ackball Key force 55 ± 5g Travelling distance 3 ± 0.3m m Switch life > 10 million life cycle time Soft ware support MS W indows 7 / 2008 / 2003 / 2000 / XP / ME / 98 / DOC Linux / Mac Supporting layouts...
- Page 13 < 2.3 > On-screen Display Operation ( OSD ) M embrane Switch Funct ion Turn the monitor on or off Display the OSD menu Act as an Enter key to select screen setting options Scroll through menu options and adjust the displayed co ntrol Exit t he OSD screen Go back to the previous on-screen sub-men u o r...
- Page 14 < 2.3 > On-screen Display Operation ( OSD ) OSD C onfiguration Page Image: for the brightness, contrast, color temp , red, green, and blue Geometry: for the auto adjust, H position, V position, phase and clock Video: for the colour, tint, sharpness, noise reduction, DCDi and TV Setup Audio: for volume, bass, treble, balance, AV L and mute Misc:...
- Page 15 < Part 3 > < 3.1 > Options : - Audio ( 3.5mm audio jack s for au dio in & o ut, and 2W + 2W spea kers )
- Page 16 < 3.2 > Options : DC Power Model Input r ating Input voltage: 24-Volt 48-Volt Input ra nge : 18 ~ 36V 36 ~ 75V Input current - No load 50 m A 50 mA - Full load 4880 mA 2442 mA Output rating Output voltage:...
