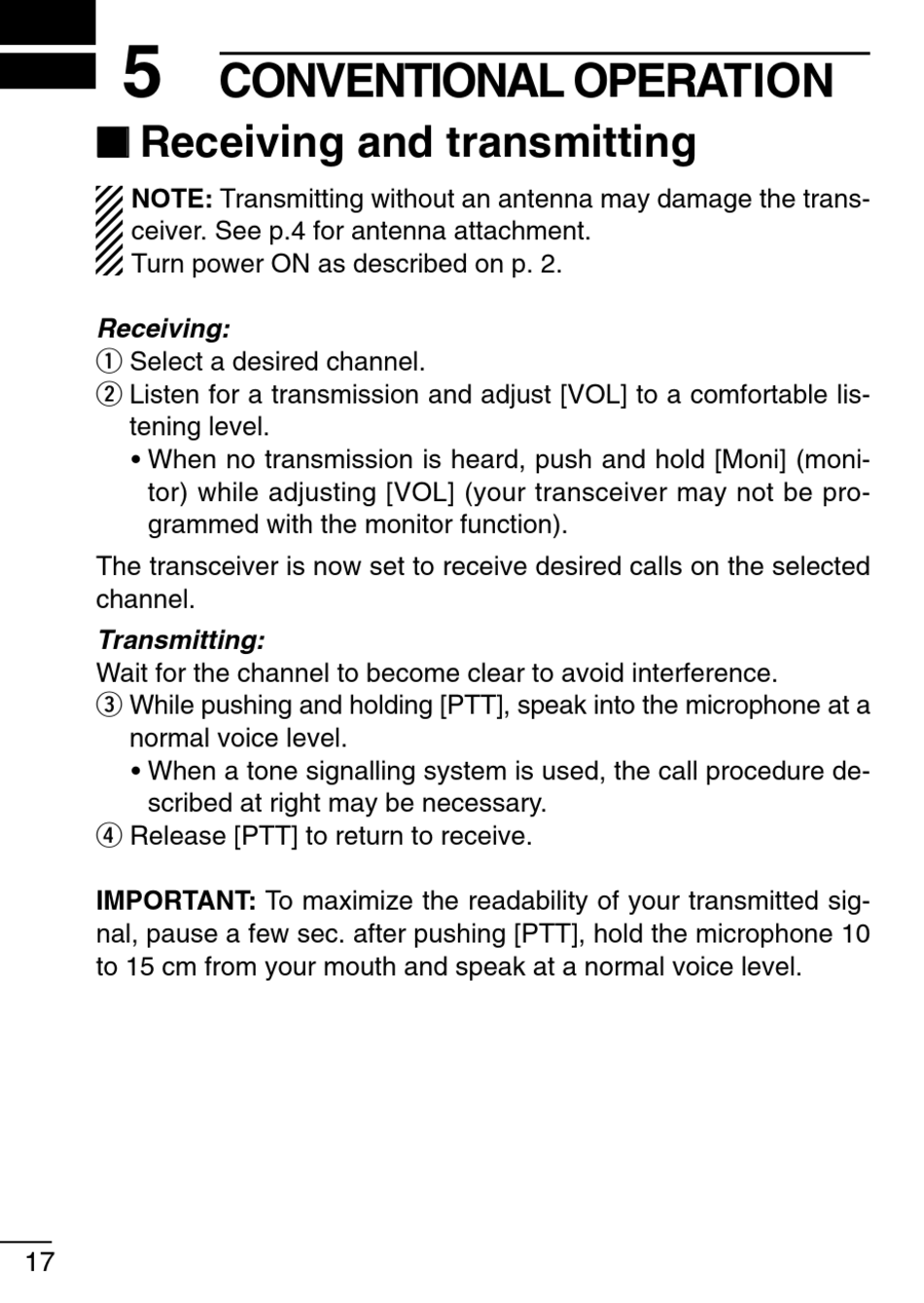

Conventional Operation; Receiving And Transmitting - Icom IC-iF11/S Instruction Manual

Table of Contents

NOTE: Transmitting without an antenna may damage the trans-

ceiver. See p.4 for antenna attachment.

Turn power ON as described on p. 2.

Receiving:

q Select a desired channel.

w Listen for a transmission and adjust [VOL] to a comfortable lis-

tening level.

• When no transmission is heard, push and hold [Moni] (moni-

tor) while adjusting [VOL] (your transceiver may not be pro-

grammed with the monitor function).

The transceiver is now set to receive desired calls on the selected

channel.

Transmitting:

Wait for the channel to become clear to avoid interference.

e While pushing and holding [PTT], speak into the microphone at a

normal voice level.

• When a tone signalling system is used, the call procedure de-

scribed at right may be necessary.

r Release [PTT] to return to receive.

IMPORTANT: To maximize the readability of your transmitted sig-

nal, pause a few sec. after pushing [PTT], hold the microphone 10

to 15 cm from your mouth and speak at a normal voice level.

CONVENTIONAL OPERATION
