All rights reserved. Product description and product specifications are subject to change without notice.
For l a stest product information, please v i s it Acnodes' website at www.acnodes.com
14628 Central Ave. Chino, CA 91710
Tel: 909. 597. 7588
Fax: 909. 597. 1939
© C opyright 2015 Acnodes C orp.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Acnodes KDH81712
Summary of Contents for Acnodes KDH81712

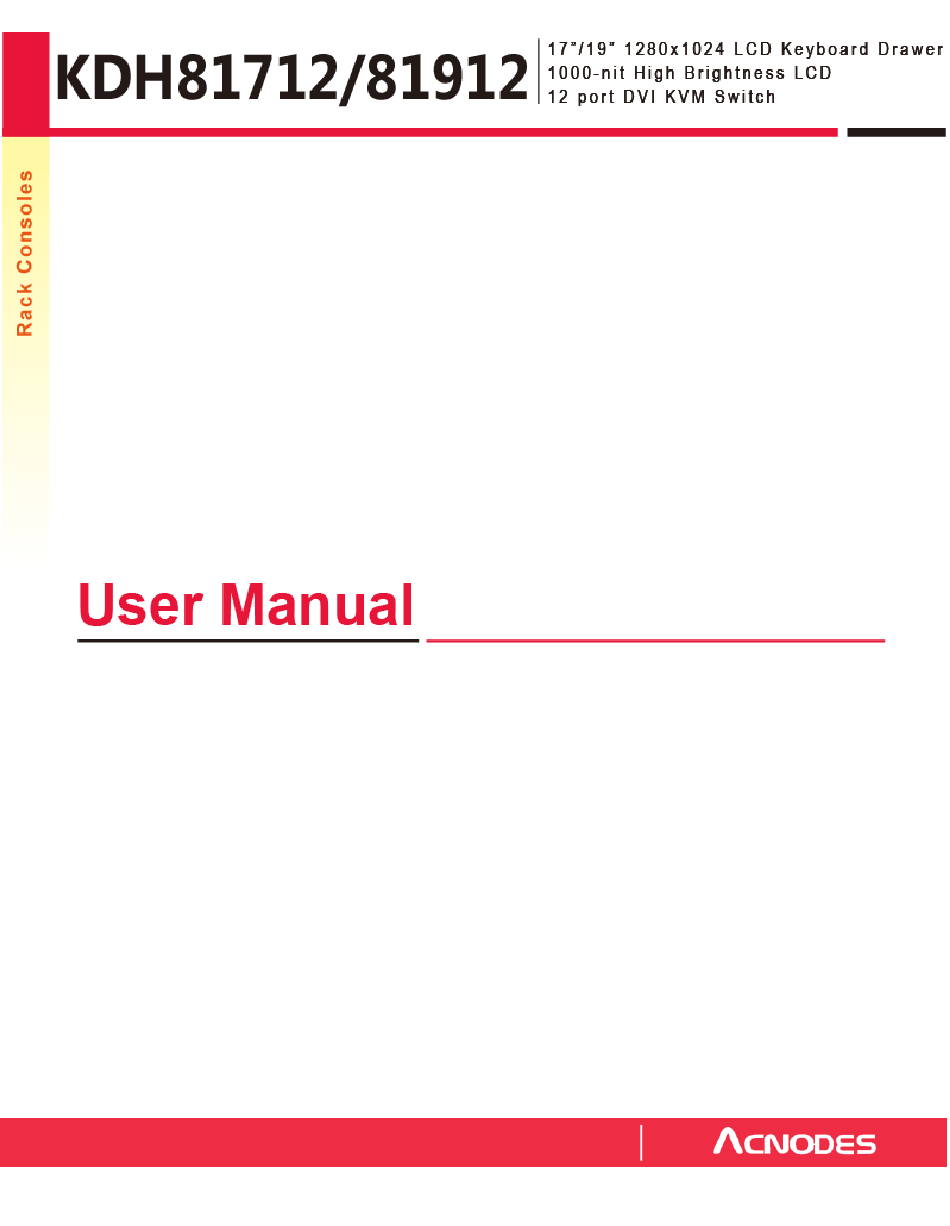

- Page 1 All rights reserved. Product description and product specifications are subject to change without notice. For l a stest product information, please v i s it Acnodes’ website at www.acnodes.com 14628 Central Ave. Chino, CA 91710 Tel: 909. 597. 7588 Fax: 909. 597. 1939...
- Page 2 Legal Information First English printing, October 2002 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
-
Page 3: Table Of Contents
Contents < Part. 1 > KDH81712/81912 Package Content Structure Diagram & Dimension P.1 - 2 Installation P.3 - 5 < Part. 2 > Specifications / OSD Product Specifications P.6 - 7 Keyboard / Mouse Specifications On-screen Display Operation ( OSD ) P.9 - 10... - Page 4 Contents < Part. 4 > KVM Integration DVI-D 12-port Loc al Rem ote KVD1201 P.13 KVM port connection P.14 Specifications P.15 KVM Button KVM Hotkey P.16 DC power 12V, 24V, 48V Input P.17...
- Page 5 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
-
Page 6: Package Content
< Part 1 > < 1.1 > Package Content KDH 81712/81912 unit X 1 - 6ft Combo KVM cable X 1 - Power cord X 1 - M6 screw, cage nut & cup wash er X 8 < 1.2 > Structure Diagram LCD interchange able mo dule kit Keyboard interchangeable module kit Installation Slides... - Page 7 Weight Weight 441.6 x 580 x 44 mm 590 x 823 x 140 mm 12 kg 16.5 kg KDH81712 17.4 x 22.8 x 1.73" 23.2 x 32.4 x 5.5” 26 lb 36 lb 441.6 x 620 x 44 mm 590 x 823 x 140 mm 13 kg 17.5 kg...
-
Page 8: Installation
< 1.3 > Installation - How to install Installation Slides Step ¦ Insert the left and right rear mounting brackets into the LCD c onsole drawer. Step ¦ Measure the depth of the front and rear mounting rails. ¦ Align each rear mounting bracket to a suitable length. Step Complete the installation ¦... - Page 9 < 1.3 > Installation - How to install 2 post rack brackets Step ¦ Release front mounting ears before applying 2 post r ac k brackets. ¦ Insert rear m ounting brack ets into the LCD console drawer. Opt ion Model : MB-751-12 Step ¦...

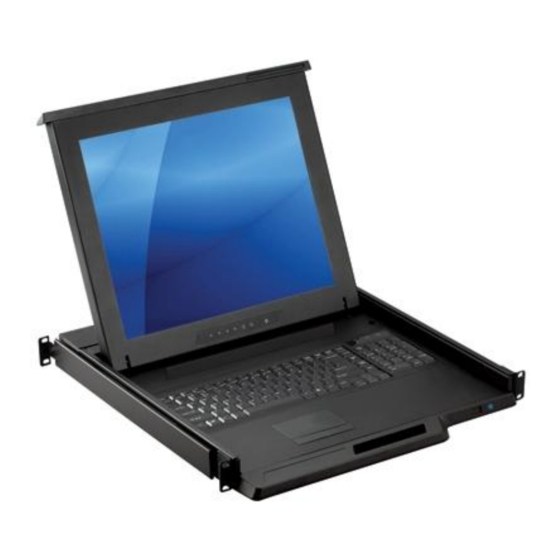

- Page 10 < 1.3 > Installation- How to use the drawer ¦ Hold the handle and slide out the drawer. ¦ Flip up the LCD to a suitable angle. ¦ Operate the LCD cons ole drawer.
-
Page 11: Product Specifications
< Part 2 > < 2.1 > Product Specifications KDH81712 KDH81912 Panel Panel Size ( diagonal ) 17-inch TFT color LCD 19-inch TFT color LCD Display pix el ( dots x lines ) 1280 x 1024 1280 x 1024 Brightness ( typ. ) - Page 12 5~90%, non-condensing Shock 10G acceleration (11ms duration) Vibration 5~500Hz 1G RMS random Physical KDH81712 KDH81912 Specification Product ( W x D x H ) 441.6 x 580 x 44 m m 441.6 x 620 x 44 mm 17.4 x 22.8 x 1.73 inch 17.4 x 24.4 x 1.73 inch...
-
Page 13: Keyboard / Mouse Specifications
< 2.2 > Keyboard / Mouse Specifications G keyboard integrated with touchpad G keyboard integrated with tr ackball Key force 55 ± 5g Travelling distance 3 ± 0.3m m Switch life > 10 million life cycle time Soft ware support MS W indows 7 / 2008 / 2003 / 2000 / XP / ME / 98 / DOC Linux / Mac Supporting layouts... -
Page 14: On-Screen Display Operation ( Osd )
< 2.3 > On-screen Display Operation ( OSD ) M embrane Switch Funct ion Turn the monitor on or off Display the OSD menu Act as an Enter key to select screen setting options Scroll through menu options and adjust the displayed co ntrol Exit t he OSD screen Go back to the previous on-screen sub-men u o r... - Page 15 < 2.3 > On-screen Display Operation ( OSD ) OSD C onfiguration Page Image: for the brightness, contrast, color temp , red, green, and blue Geometry: for the auto adjust, H position, V position, phase and clock Video: for the colour, tint, sharpness, noise reduction, DCDi and TV Setup Audio: for volume, bass, treble, balance, AV L and mute Misc:...
-
Page 16: Part. 3 > Options
< Part 3 > < 3.1 > Options : - Audio ( 3.5mm audio jack s for au dio in & o ut, and 2W + 2W spea kers ) -
Page 17: Kvm
< 3.2 > Options : DC Power Model Input r ating Input voltage: 24-Volt 48-Volt Input ra nge : 18 ~ 36V 36 ~ 75V Input current - No load 50 m A 50 mA - Full load 4880 mA 2442 mA Output rating Output voltage:... -
Page 18: Kvm Port Connection
<Part 4> KVM Integration < 4.1 > KVM port connection USB Servers DVI-D KVM port Audi o Power USB Servers D VI KVM C ab le 6 feet DVI KVM c able 15 feet DVI KVM cable ( Server end : DVI-D + USB + Audio ) ( KVM port : DVI-D + USB3.0 ) IP console, remote c onsole, daisy- chain and OSD m enu are NOT available for this model. -
Page 19: Specifications
< 4.2 > Specifications KVD1201 KVM Port ¯ Number of ports: Connector: DVI-D connector USB 3.0 connector ( combined for keyboard, mouse & audio ) Connectivity: Com bo 4-in-1, KV M cable, 6 or 15 feet Audio Out 1 x 3.5mm stereo audio ¯... -
Page 20: Kvm Button
4.3 KVM Button Power ON ¦ Turn off all servers and KVM s witches ¦ Make sure all cables / c onnectors are properly connec ted ¦ Recommend Power ON sequence is m onitor, K VM switch finally computer Front Panel - Port LED Indications DVI-D K VM 12 ports PC port LEDs Channel... -
Page 21: Kvm Hotkey
4.4 KVM Hotkey Hotkey Function Scroll Lock + Scroll Lock + Switch to previous port Scroll Lock + Scroll Lock + Switch to nex t port Scroll Lock + Scroll Lock + Port no. Switch to specific port Scroll Lock + Scroll Lock + Auto scan for powered on PC Scroll Lock + Scroll Lock + Enable / Disable beeper sound... -
Page 22: Dc Power 12V, 24V, 48V Input
4.5 DC Power 12V, 24V, 48V Input Model Input rating Input voltage: 12-Volt 24-Volt 48-Volt Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V Input current - No load 50 mA 50 mA 50 mA - Full load 4950 mA 2450 mA 1220 mA...
