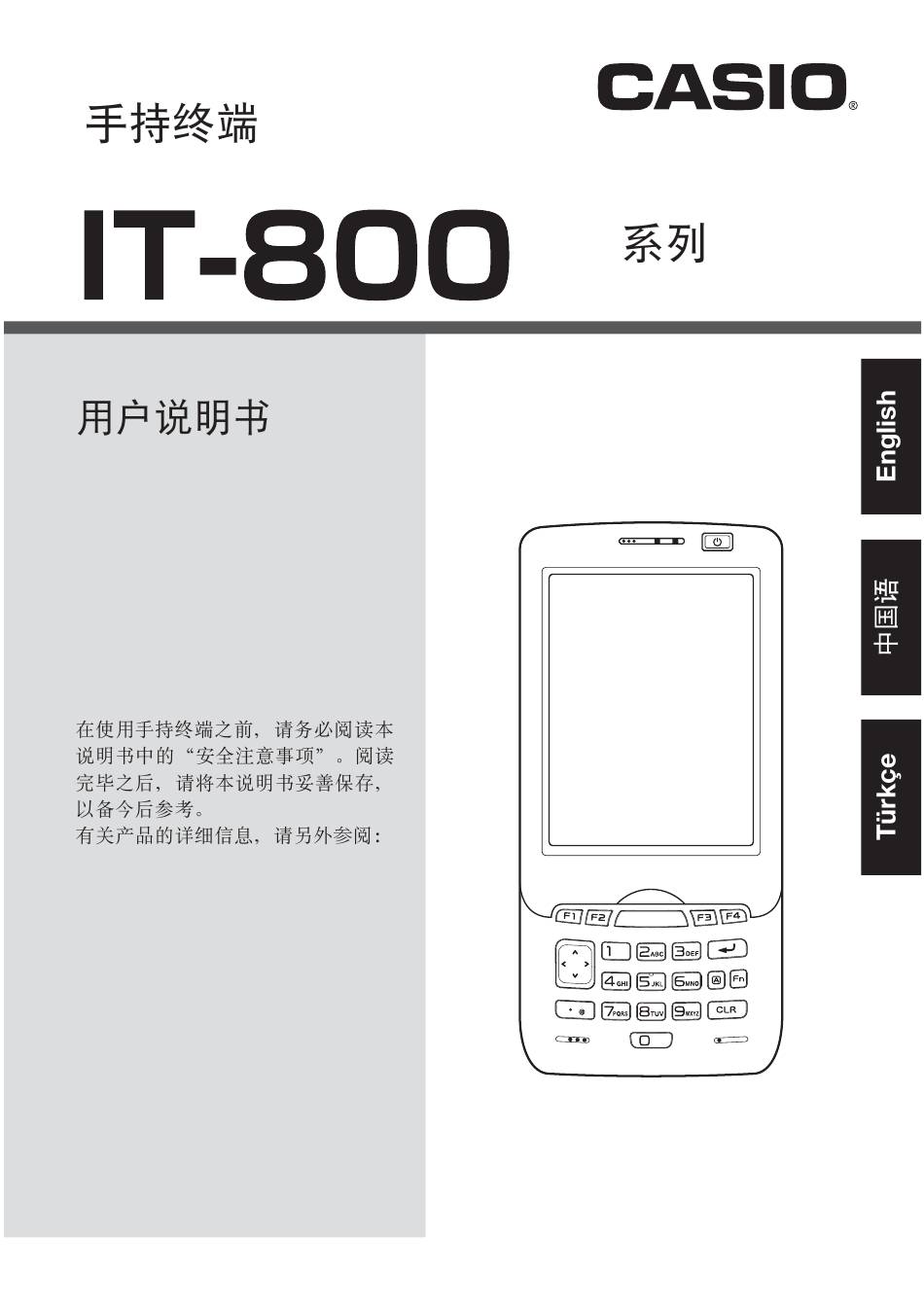

Handheld Terminal
Portatif Terminal
User's Guide
Kullanım Kılavuzu
Be sure to read "Safety
Precautions" inside this guide
before trying to use your Handheld
Terminal. After reading this guide,
keep it in a safe place for future
reference.
For product detail, refer also to
http://world.casio.com/system/
pa/UsersGuide/sup85_e.html
http://world.casio.com/system/pa/
UsersGuide/sup85_e.html
Portatif Terminali kullanmadan önce
kılavuzun içindeki "Güvenlik
Önlemlerini" okuyunuz.
Kılavuzu okuduktan sonra ileride
başvurmak için güvenli bir yere
kaldırınız.
Ürün detayları için ayrıca şuraya
başvurun
http://world.casio.com/system/pa/
UsersGuide/sup85_e.html
Series
Serisi
E C Tr

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IT800 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Casio IT800 Series

Summary of Contents for Casio IT800 Series

  • Page 1 Precautions” inside this guide before trying to use your Handheld Terminal. After reading this guide, keep it in a safe place for future reference. For product detail, refer also to http://world.casio.com/system/ pa/UsersGuide/sup85_e.html http://world.casio.com/system/pa/ UsersGuide/sup85_e.html Portatif Terminali kullanmadan önce kılavuzun içindeki “Güvenlik Önlemlerini”...
  • Page 2 Microsoft and Windows are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. Information in this document is subject to change without advance notice. CASIO Computer Co., Ltd. makes no representations or warranties with respect to the contents or use of this manual and speci¿...

  • Page 3: Table Of Contents

    Contents Safety Precautions ..................E-2 Operating Precautions ...................E-7 Important ......................E-7 Regulatory Information ..................E-8 Handheld Terminal System Confi guration ..........E-10 General Guide ....................E-12 Loading and Removing the Battery Pack ...........E-14 Charging the Battery Pack ................E-17 Handling the Hand Belt ................E-19 Connecting the Stylus String ...............E-20 Attaching the Neck Strap................E-21 Confi...

  • Page 4: Safety Precautions

    Safety Precautions Congratulations upon your selection of this CASIO product. Be sure to read the following Safety Precautions before trying to use it for the ¿ rst time. Your neglect or avoidance of the warning and caution statements in the subsequent pages causes the danger of ¿...
  • Page 5 Warning Dust and Moisture Though the Handheld Terminal is dust and water splash resistant, its options including the battery pack are not. Keep loose metal objects and containers ¿ lled with liquid away from your Handheld Terminal and the options. Also, never handle the Handheld Terminal and the options while your hands are wet.
  • Page 6 Caution Foreign Objects Take care to ensure that metals or combustible objects are not inserted into the openings of the Handheld Terminal or its options, and not to allow moisture to get inside of them. Location Install the cradle properly on a À at and stable surface so that it cannot fall down onto À...
  • Page 7 Immediately rinse it off with clean tap water and then consult a physician. Caution Replace only with the same type of battery pack recommended by CASIO. Dispose of used battery packs according to the local regulation. Keep the battery pack out of the reach of small children.
  • Page 8 Backup of All Important Data Caution Note that CASIO Computer Co., Ltd. shall not be held liable to you or any third party for any damages or loss caused by deletion or corruption of data due to use of the Handheld Terminal, malfunction or repair of the Handheld Terminal or its peripherals, or due to the batteries going dead.

  • Page 9: Operating Precautions

    Operating Precautions Your Handheld Terminal and its options are precision. Improper operation or rough handling can cause problems with data storage and other problems. Note and observe the following precautions to ensure proper operation. Do not leave dead battery pack in the Handheld Terminal for a long period. Dead battery pack can leak, leading to malfunction and damage to the Handheld Terminal.

  • Page 10: Regulatory Information

    HA-H60IO, HA-H62IO Trade Name: CASIO Responsible party: Industrial Handheld Division Casio America, Inc. Address: 570 Mt. Pleasant Avenue, Dover, New Jersey 07801, USA Telephone number: 973-361-5400 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 11 L ‘ utilization de ce dispositif est autorisée seulement aux conditions suivantes : (1) il ne doit pas produire de brouillage et (2) l’ utilisateur du dispositif doit étre prêt à accepter tout brouillage radioélectrique reçu, même si ce brouillage est susceptible de compromettre le fomctionnement du dispositif. Exposure to Radio Frequency Radiation: To comply with IC RF exposure compliance requirements, the antenna(s) used for this transmitter must not be collocated or operating in conjunction with any other antenna or transmitter, except in...

  • Page 12: Handheld Terminal System Confi Guration

    Cradle-type Battery Charger These models are available in the HA-H30CHG USA and Canada only. Car Mounted-type Battery Charger HA-H35CHG The car power cable accompanies to HA-H35CHG. For the latest options list, refer to the ON-LINE manual available at http://world.casio.com/system/pa/UsersGuide/sup85_e.html E-10...
  • Page 13 Options Battery Pack Dual Battery Charger HA-D32DCHG HA-D20BAT/HA-D20BAT-A HA-D21LBAT/HA-D21LBAT-A (Battery Pack) (Large-capacity Battery Pack) For WWAN models*, be sure to use either HA-D20BAT-A or HA-D21LBAT-A battery pack. AC Adaptor for USB Cradle/ AC Adaptor for IT-800/ Ethernet Cradle/ Cradle-type Battery Charger AD-S15050B-N Dual Battery Charger AD-S42120B-N...

  • Page 14: General Guide

    General Guide   IT-800R-15 IT-800R-35 IT-800R-05 Model:    IT-800A-35U IT-800RC-15 IT-800A-35 IT-800EC-05 IT-800EC-35 IT-800RC-35 IT-800RGC-15 IT-800RGC-35 IT-800RGC-05 Left Front Right 1 2 3 4 Back Bottom 33 34 E-12...
  • Page 15 1 Receiver 12 Numeric Keys 23 Camera Lens (Camera models) 2 Indicator 1 13 Cursor Key 24 LED (Camera models) Car Mounted-type Battery 3 Indicator 2 14 Microphone Charger Mount Holes 4 Power Key 15 Speaker 26 Reset Switch R Trigger Key microSD Card Slot R Enter Key 5 Screen*...

  • Page 16: Loading And Removing The Battery Pack

    Loading and Removing the Battery Pack Your Handheld Terminal uses two types of battery: a battery pack and a memory backup battery. The battery pack is used to power normal operations and to store data, while the memory backup battery provides the power required to maintain memory contents when the battery pack power is unable to supply power for some reason.
  • Page 17 Loading 1. Turn the terminal upside down and loosen the hand belt. 2. Slide the left and right lock switches for the battery pack cover to the “FREE” position, and then remove the battery pack cover. 3. Load a battery pack (HA-D20BAT, HA-D20BAT-A) or large-capacity battery pack (HA-D21LBAT, HA-D21LBAT-A).
  • Page 18 Removing 1. Make sure that the Handheld Terminal is turned off. If the power is on, press the power key to turn it off. 2. Turn the terminal upside down and loosen the hand belt. 3. Refer to “Loading” on the previous page and remove the battery pack cover. 4.

  • Page 19: Charging The Battery Pack

    Charging the Battery Pack Battery pack installed in the terminal can be charged using either cradle, battery charger or AC adaptor (AD-S15050B). Battery charge condition can be monitored with Indicator 1 on the terminal. Multiple battery packs can also be charged simultaneously using Dual Battery Charger.
  • Page 20 Dual Battery Charger Taking care that the battery pack is oriented correctly, insert it into the Dual Battery Charger. This causes the Charge Indicator LED to light in red, indicating that charging has started. AD-S42120B You can connect up to three Dual Battery Chargers. Status of Charge Indicator LED Off: Not charging...

  • Page 21: Handling The Hand Belt

    Handling the Hand Belt The hand belt is attached to the terminal. Remove it if it is not necessary. To remove the hand belt 1. As shown in the ¿ gure, pull out the metal part of the hook while pressing down the protrude part that has a small dimple on it.

  • Page 22: Connecting The Stylus String

    Connecting the Stylus String The string can be connected to stylus and hand belt to prevent loss of stylus or misplacing. Follow the instruction below to connect it to stylus and hand belt. 1. Thread one end of the string through the slit on stylus as shown in the illustration. 2.

  • Page 23: Attaching The Neck Strap

    Attaching the Neck Strap The neck strap can be used to prevent the Handheld Terminal from fall when carrying it around. Since there are two strap holes where the neck strap can be attached, use the hole that affords the ease of use. Attach the neck strap according to the procedure described below.

  • Page 24: Confi Guring Handheld Terminal Settings

    Confi guring Handheld Terminal Settings Calibrating Touch Screen Alignment Whenever the response of the touch screen is poor, or operation being executed does not match with the location you are tapping on the touch screen, please recalibrate the alignment of the touch screen using the following method. Press the “Fn”...

  • Page 25: Adjusting The Laser Light Emission Width

    Adjusting the Laser Light Emission Width The emission width of the laser light emitted by the Handheld Terminal (model dependant) can be adjusted. Adjust the emission width when it is improper. 1. Navigate to the menus in the following sequence: Start Settings System...
  • Page 26 4. Tap the [Calibration] button. The display appears as shown at right. 5. Press the trigger key to emit laser light, and align the light with the barcode for adjusting emission width. Align the laser light with the narrow bars on both sides. The message appears as shown at right when adjustment is completed.

  • Page 27: Handling Microsd Cards

    Handling microSD Cards The Handheld Terminal supports microSD card. The employment of microSD card slot is dependent on model. See page 13 for the models with microSD card slot integrated. Since the microSD card slot is located inside the battery pack compartment, ¿ rst remove the battery pack when installing or removing a microSD card.
  • Page 28 Removing 1. Make sure that the power on the terminal has been switched off. If the power is still on, press the power key to switch off. 2. Remove the battery pack. 3. As shown in the ¿ gure, pull out the card while pressing down the small plastic spring plate.

  • Page 29: Handling Sim Cards

    Handling SIM Cards The Handheld Terminal supports SIM card. The employment of SIM card slot is dependent on model. See page 13 for the models with SIM card slot integrated. Since the SIM card slot is located inside the battery pack compartment, ¿ rst remove the battery pack when installing or removing a SIM card.
  • Page 30 Removing 1. Make sure that the power on the terminal has been switched off. If the power is still on, press the power key to switch off. 2. Remove the battery pack. 3. Put your ¿ nger’s nail into the slit of the plastic holder, and then lift it up. See the ¿...

  • Page 31: Handling Sd Memory Cards

    Handling SD Memory Cards SD memory card can be installed in the SD memory card slot on the Handheld Terminal. The employment of SD memory card slot is dependent on model. See page 13 for the models with SD memory card slot integrated. Install (or remove) an SD memory card according to the procedure described below.

  • Page 32: Resetting The Handheld Terminal

    Resetting the Handheld Terminal Resetting the terminal is the same as resetting a PC. Performing a reset causes all unsaved RAM data to be lost that are in mid-course of inputting and editing, but data and settings that are already stored in the FlashROM should be unaffected. Perform a reset to restore normal operation whenever the Handheld Terminal operates abnormally due to misoperation or some other reason.
  • Page 33 1. Hold down Fn key and CLR key while pushing down the reset switch for about 3 seconds with the tip of a stylus until the message shown below appears on the display. To cancel the full reset operation, press L Trigger key on the scan engine integrated models or Up key on the non-scan engine integrated models.

  • Page 34: Warning Label

    Warning Label Warning! ■ Never look directly into the laser light. These products scan using laser light. Never look directly into the laser light or shine the laser light into the eyes. IT-800R-15/RC-15/RGC-15/ IT-800R-35/A-35/RC-35/ IT-800A-35U RGC-35 EC-35 This label is a warning and caution label for Class 2 laser products that comply with IEC60825-1:2007.

  • Page 35: Usb Cradle (Ha-H60Io), Ethernet Cradle (Ha-H62Io

    USB Cradle (HA-H60IO), Ethernet Cradle (HA-H62IO) General Guide Front Right Back (HA-H60IO) Back (HA-H62IO) LAN Communication 1 USB Client Port 9 Power/Signal Terminals Status LED 2 USB Host Port 6 LAN Port 10 Power Indicator LED 3 Selector Switch 7 AC Adaptor Jack 11 Mount Hooks LAN Connection Status 8 Terminal Detect Switch...

  • Page 36: Cradle-Type Battery Charger (Ha-H30Chg

    Cradle-type Battery Charger (HA-H30CHG) General Guide Front Right Back 1 AC Adaptor Jack 2 Terminal Detect Switch 3 Power Terminals 4 Power Indicator LED 5 Mount Hooks Car Mounted-type Battery Charger (HA-H35CHG) General Guide Front Right 1 Car Adaptor Jack 2 Removal Buttons 3 Terminal Detect Switch 4 Power Terminals...

  • Page 37: Dual Battery Charger (Ha-D32Dchg

    Dual Battery Charger (HA-D32DCHG) General Guide Left Right Bottom 1 Charge Indicator LED 2 AC Adaptor Jack 3 Dual Battery Charger Connection Port 4 Connection Bracket Attachment Holes E-35...
  • Page 38 Connecting Multiple Dual Battery Chargers 1. As shown in the illustrations below, remove the connector covers of the Dual Battery Chargers you want to connect to each other. Connector cover 2. Connect the two Dual Battery Chargers as shown below. 3.
  • Page 39 IT-800A-35U Marvell PXA320 624MHz Memory 128MB RAM, 128MB Flash ROM (user defined: 80MB) Microsoft Windows Mobile 6.1 operating system Display 3.7-inch, 480 x 640-dots 2-Way TFT color LCD 1D : UPC-A、UPC-E、EAN8 (JAN8)、EAN13 (JAN13)、 CMOS Imager Readable symbologies Codabar(NW-7)、 Code39、 Interleaved 2 of 5 (ITF)、 MSI、 Code93、Code128 (GS1-128 (EAN128))、Code11、IATA、...
  • Page 40 Frequency 13.56MHz Band Supported ISO14443TypeA、ISO14443TypeB、Felica Cards microSD Memory Standards Compatible with SDHC Memory Card Card Slot Power Supply Power Source Battery Pack Memory Rechargeable Lithium Battery(Built-in) Backup Operating Temperature -20℃ to 50℃ Environment Humidity 10% to 90%RH(non-condensation) Dimensions Weight Dimensions Approximately 78(W) x 159(D) x 25(H) mm Weight Approximately 275g...
  • Page 41 CASIO COMPUTER CO., LTD. 6-2, Hon-machi 1-chome Shibuya-ku, Tokyo 151-8543, Japan PN410438-003 PN410438-003 MO1101-001001A Printed in Japan Printed on recycled paper.
