UT-4579 X-Band Up Converter
Front and Rear Panel Connectors

4.2.3.1 UT-4579 Cable Connections

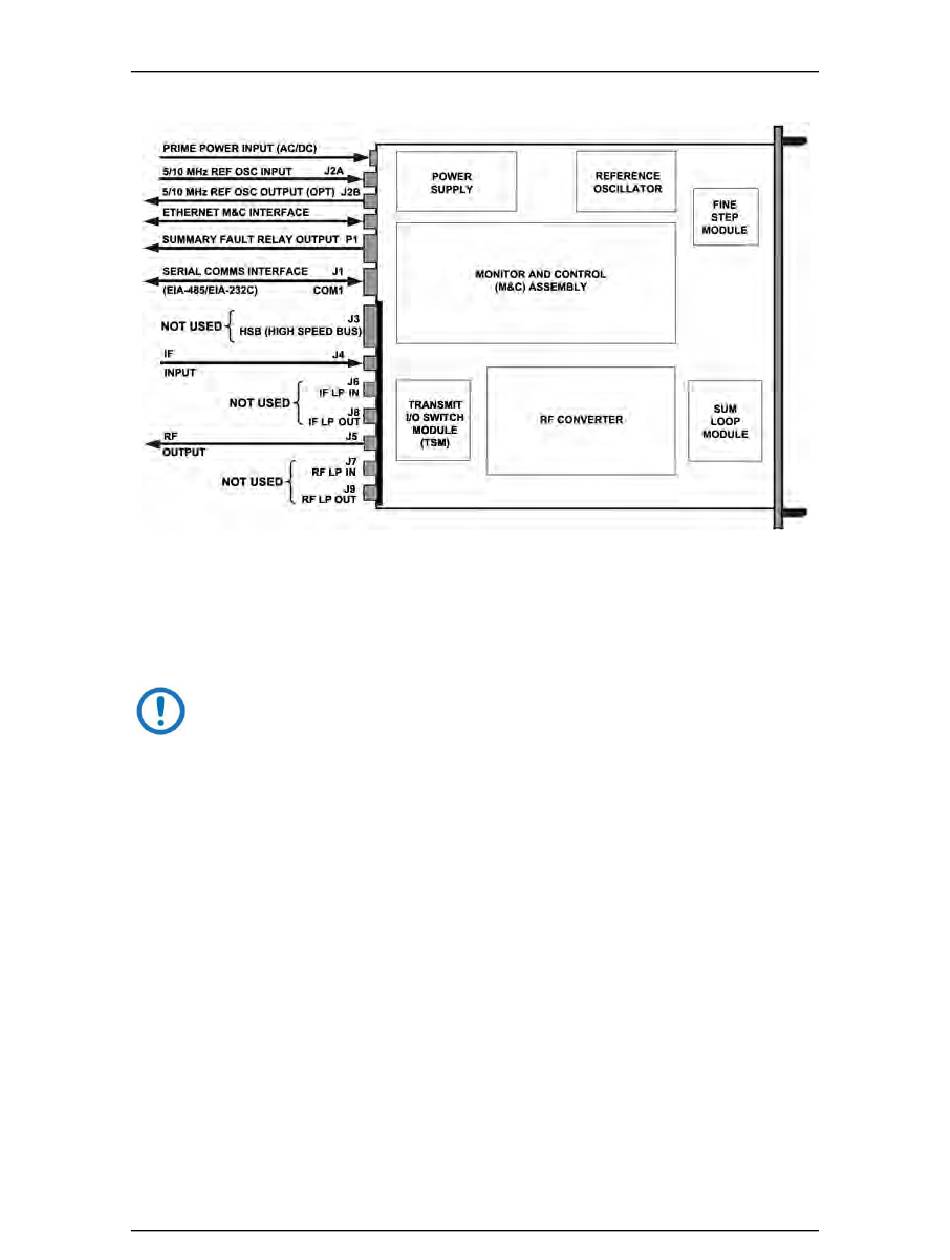

Figure 4-15. UT-4579 Cabling Example (with TSM)
Figure 4-15 provides a cabling connection example for the UT-4579 X-Band Up
Converter. This example depicts use of a Transmit Switch Module (TSM) in a
standalone configuration – the module cabling requirements will vary. All other
cabling to the available rear chassis connectors is identical across all applications.
Contact Comtech EF Data Product Support for cabling instructions
specific to your converter application.
4–15
MN/UT4579.IOM
Revision 1
