Removable Modules

See Chapter 2. SPECIFICATIONS for the listings of available modules for
use with the DT-4572 X-Band Down Converter and UT-4579 X-Band Up
Converters. Contact Comtech EF Data Product Support for complete
details and specifications for the module(s) specific to your system.
Depending on the application, the converter rear chassis module slot accepts an
Input/Output Module (IOM), Receive Switch Module (RSM), Transmit Switch
Module (TSM), Equalizer Module (EQM), or Polarity Switch Module (PSM). These
"personality" modules (Figure B-3) are available for both non-redundant (also
referred to as single thread or standalone) and redundant applications.

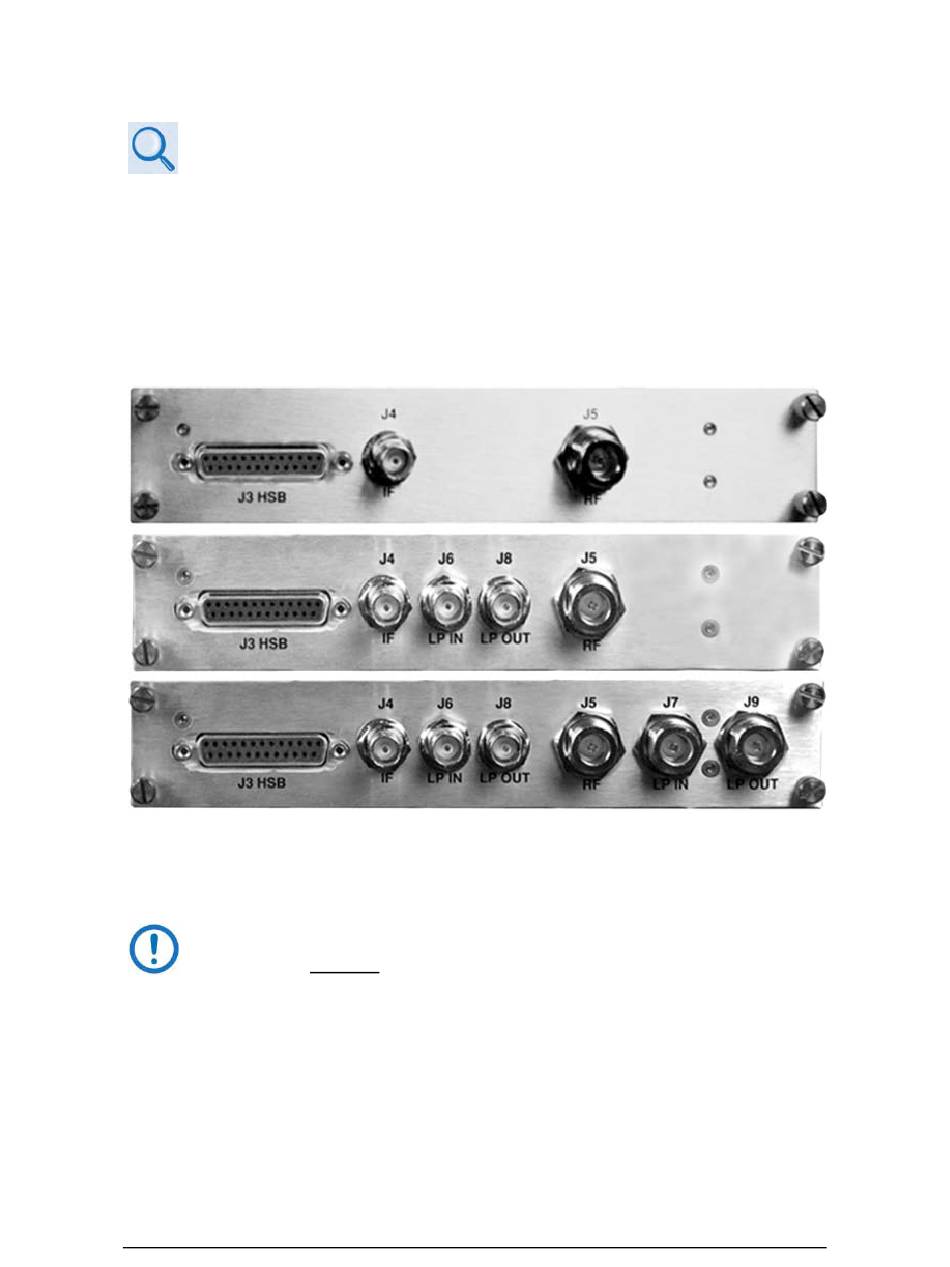

Figure B-3. "Personality" Module Examples
When you install a removable module into the converter rear panel
module slot, DO NOT use a screwdriver to tighten the module mounting
thumbscrews – these screws are designed to be hand-tightened only.
(TOP) Input/Output Switch Module (IOM)
(CENTER) Receive Switch Module (RSM)
(BOTTOM) Transmit Switch Module (TSM)
